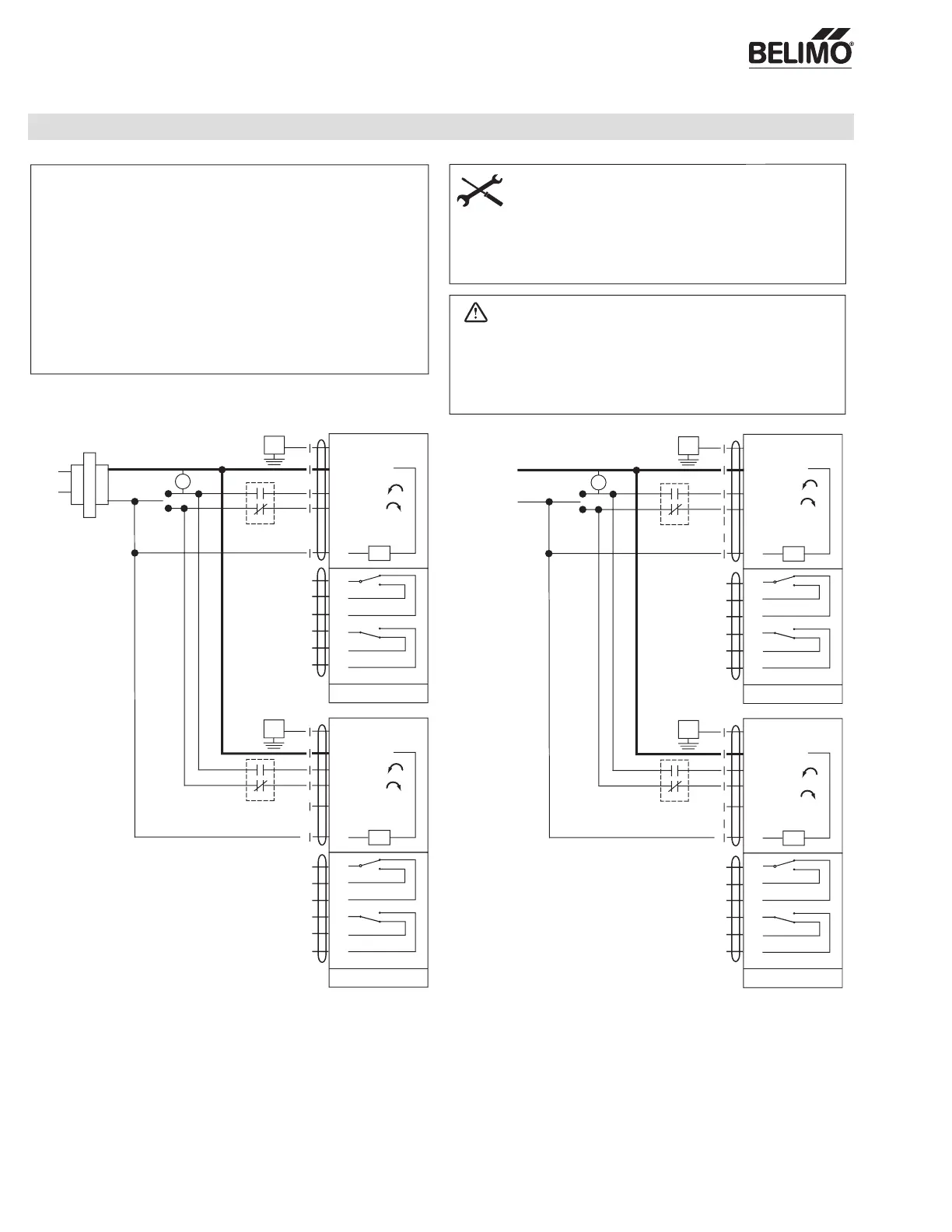

Wiring for Multiple SY
On/Off, 24V, 120/230V
Actuators: SY4...5-24 SY4...12-110 SY4...12-220
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA
1
2
W
iring for Multiple
SY
O
n
/O
ff
,
24V
,
120
/
230
V
Observe class 1 and class 2 wiring restrictions.
Transformer sizing = SY actuator draw X 1.25 (safety margin)
(Ex. SY2-24 requires 3.0A x 1.25 = 3.75A,
3.75A X 24 VAC = 90VA Transformer).
Indicates an action or condition that may cause irreversible damage to the
actuator(s) or associated equipment.
Equipment damage!
Power consumption and input impedance must be observed.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices.
Warnings and Cautions appear at appropriate sections throughout this
manual. Read these carefully.
Hazard Identification
INSTALLATION NOTES
24 VAC Transformer
Line
Volts
G Ground
1 Common
3 Open
4 Closed
5
6
7
HTR
A
B
C
D
E
F
LS3
A-C
(Open Indication)
LS4
D-F
(Closed Indication)
Contact Rating: 5A 250 VAC Max.
SY4…5-24
G Ground
1 Common
3 Open
4 Closed
5
6
7
HTR
A
B
C
D
E
F
LS3
A-C
(Open Indication)
LS4
D-F
(Closed Indication)
Contact Rating: 5A 250 VAC Max.
SY4…5-24
K1
Open
Close
K1-B
K1-A
Actuator A
Actuator B
G Ground
1 Common
3 Open
4 Closed
5
6
7
HTR
A
B
C
D
E
F
LS3
A-C
(Open Indication)
LS4
D-F
(Closed Indication)
Contact Rating: 5A 250 VAC Max.
G Ground
1 Common
3 Open
4 Closed
5
6
7
HTR
A
B
C
D
E
F
LS3
A-C
(Open Indication)
LS4
D-F
(Closed Indication)
Contact Rating: 5A 250 VAC Max.
SY4…12-110 (220)
SY4…12-110 (220)
Open
Close
K1-B
K1-A
Actuator A
Actuator B
120 and 230 VAC
N L1
H L2
NOTES
Caution: Power Supply Voltage.
• Isolation relays must be used in parallel connection of multiple actuators
using a common control signal input.
• "H" (L2) cannot be connected to terminal #3 and #4 simultaneously.
Required: Terminal #7 needs to be field wired to enable heater circuit.
G
G
G
K1
G
Actuators: SY4...5-24 SY4...12-110 SY4...12-220
7
1150-00001.D 01/17 - Subject to change. © Belimo Aircontrols
(
USA
)
, Inc
.
71906-00001 Subject to change. © Belimo Aircontrols (USA), Inc.
