I20683 - Subject to change.

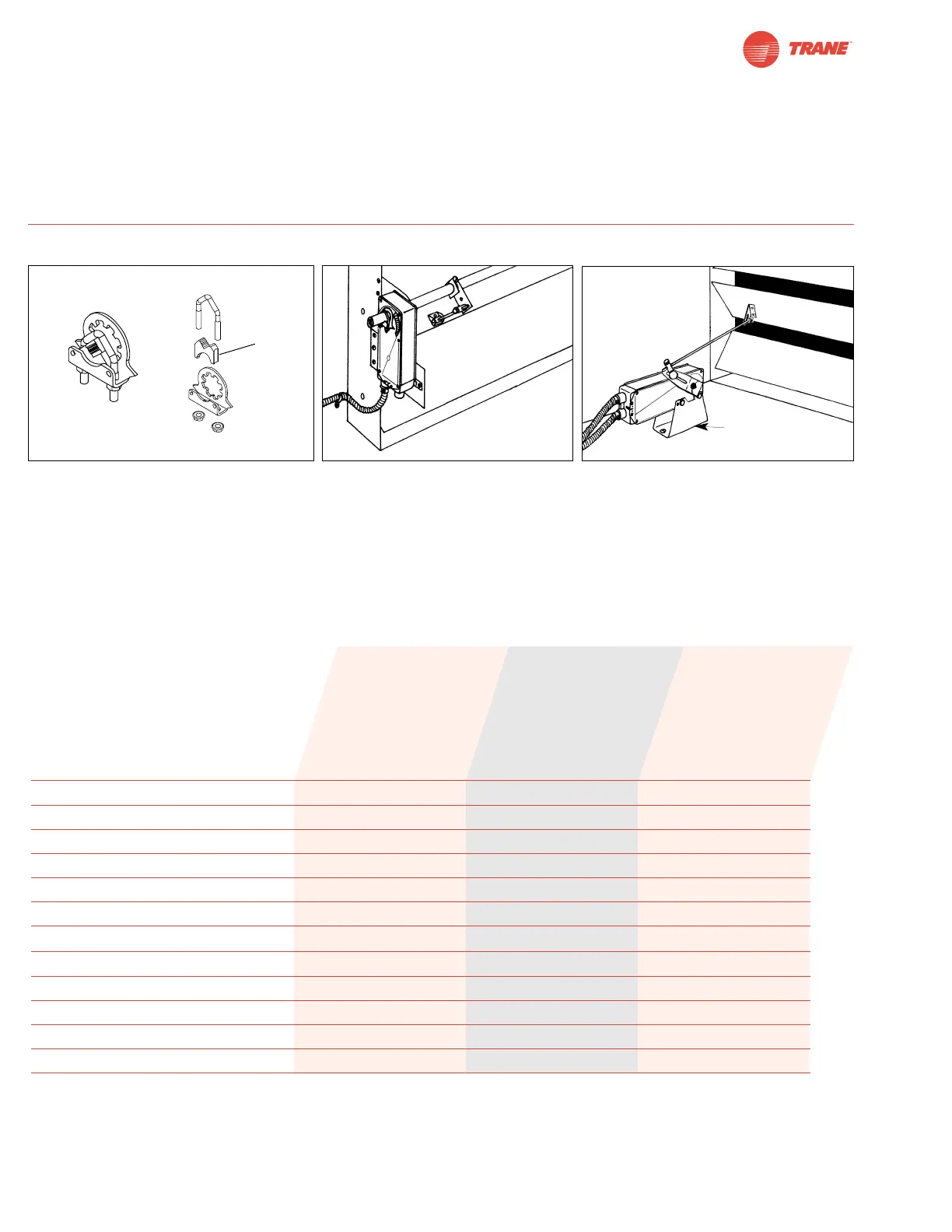

TAF Series Spring Return Direct Coupled Actuator
Applications
Minimum 133 in-lb Torque
● For damper areas up to 35 sq-ft*
(For lower torque, see TNF, TLF, or TTF series)
ZG106 or
ZG 107
bracket
Mount directly to 1.05” jackshafts.
New standard clamp fits standard 1/2”
shafts to 1.05” jackshafts.
Linkage solutions are available when direct coupling is
not possible.
Remove
for 3/4”
to 1.05”
shafts
Torque: 133 in-lb ●●●
Power supply : 24 VAC/DC ●●●
Control signal: on-off ●●●
proportional: 2 to 10 VDC ●
Feedback signal: 2 to 10 VDC ●
Running time motor: 150 sec constant ●●●
spring: <20 sec ●●●
Brushless DC Motor ●●●
External direction of rotation switch ●
Manual override ●●●
Appliance rated cable, 18 GA ●●●
Built-in auxiliary switch 2 SPDT ●
Installation instructions ......(p. 18–23) General wiring ..............(p. 25) Startup and checkout (p. 26)
Electrical operation............(p. 24)
*Based on 4 in-lb/ft
2
damper torque loading. Parallel blade. No edge seals.
TAF Series – AT A Glance
TAF24 (p. 14)
TAF24-S (p. 14)
TAF24-SR (p. 16)
