I20683 - Subject to change.
TAF
Installation Instructions
Non-Direct Mounting Methods

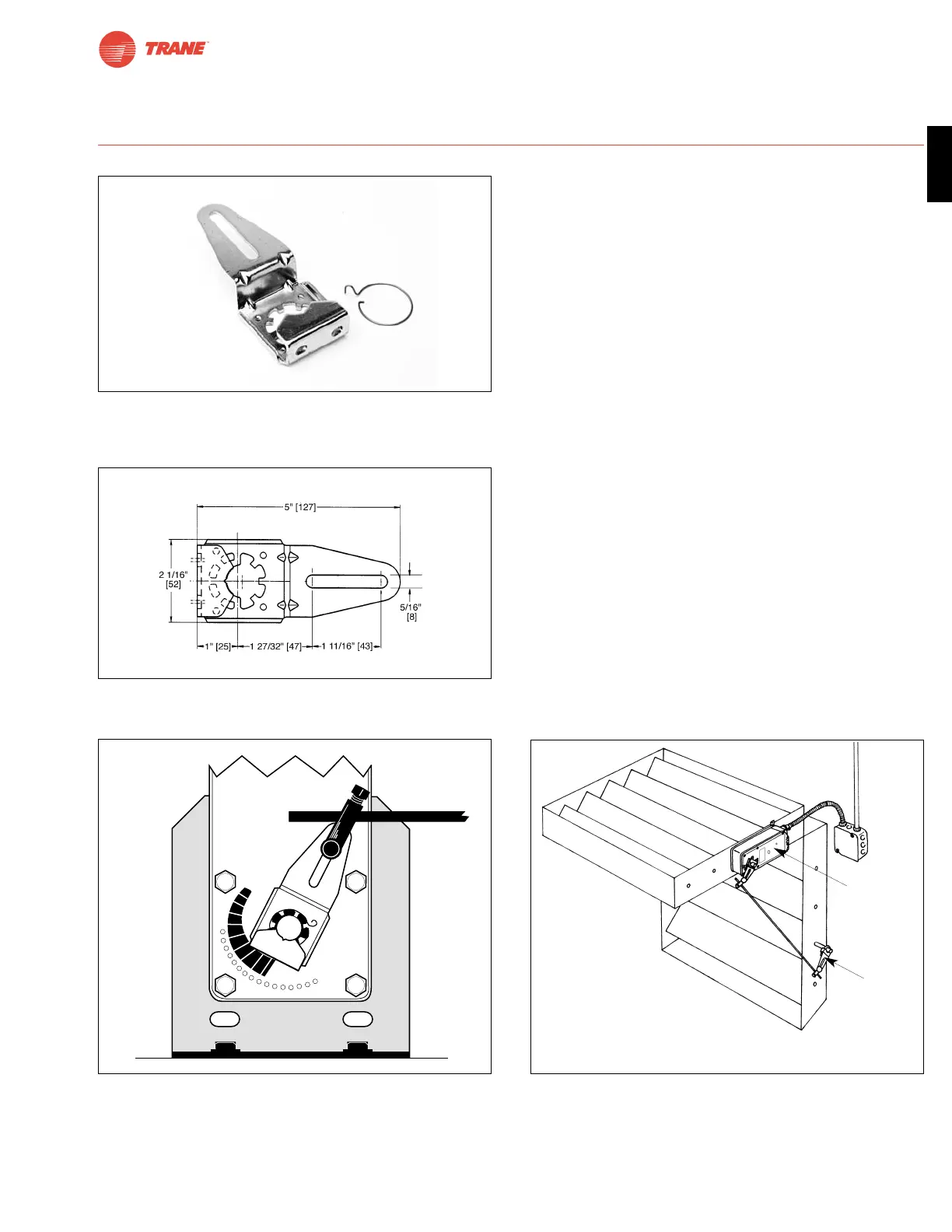

KH-AF Non-direct mounting with ZG-108 mounting bracket
Multiple dampers direct coupled to one actuator with
linkage to operate the other damper.
KH-AF Crankarm including Retaining Ring
Caution: the retaining clip supplied with the clamp is not
used to mount the KH-AF crankarm.
The KH-AF (-1) crankarm is used in non-direct coupled
mounting applications. The KH-AF (-1) may also be used to
simultaneously direct couple to a damper shaft and provide an
additional crank arm connection to a second damper. The
KH-AFV V-bolt kit must be used for this non-direct application
(see illustration below).
Two sizes are available:
KH-AF For round shafts up to 3/4” or square shafts up to 5/8”
KH-AF-1For jackshafts up to 1.05”
KH-AFV V-bolt kit for KH-AF(-1) crankarm
KH-AF (-1)
crankarm
with KH-AFV
V-bolt kit
KH-8
crankarm
Dimensions (All numbers in brackets are in millimeters.)
