Belkin F5D8236-4 User Manual

F5D8236-4_V1000_N_RTR_MNL-CLEAN.doc
Page 46 of 111
Using the Web-Based Advanced User Interface

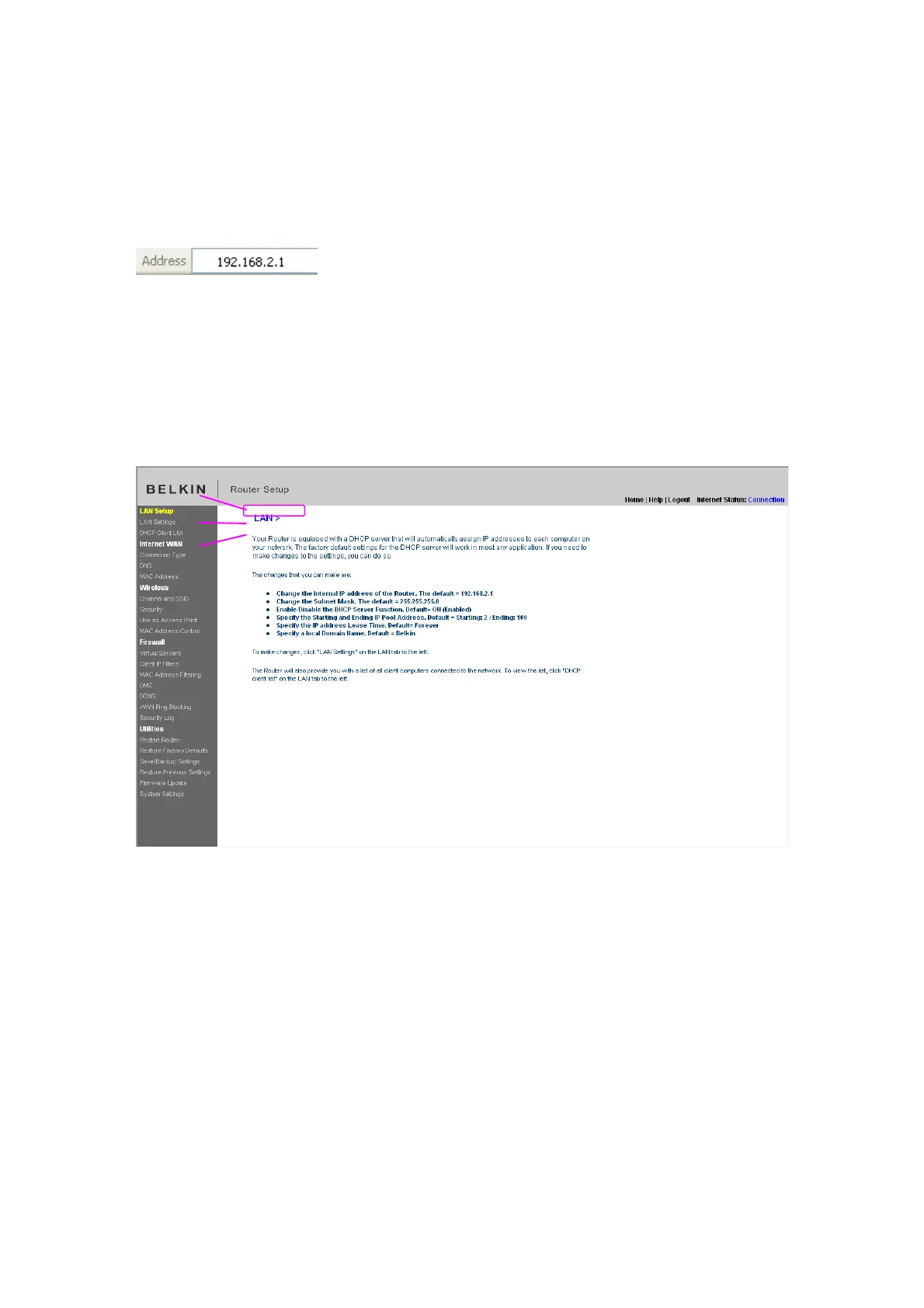

Using your Internet browser, you can access the Router’s Web-Based Advanced
User Interface. In your browser, type “192.168.2.1” (do not type in anything else
such as “http://” or “www”) then press the “Enter” key.
[use existing tif]
You will see the Router’s home page in your browser window.
Viewing the LAN Settings
Clicking on the header of the LAN tab (1) will take you to the LAN tab’s header
page. A quick description of the functions can be found here. To view the settings
or make changes to any of the LAN settings, click on “LAN Settings” (2) or to
view the list of connected computers, click on “DHCP client list” (3).
[Insert LAN.tif]
(1)
(2)
(3)

Belkin F5D8236-4 Specifications

General

Model	F5D8236-4
Type	Wireless Router
Wireless Standard	802.11n
Frequency Band	2.4 GHz
Max Data Rate	300 Mbps
LAN Ports	4
WAN Ports	1
Security Features	WEP, WPA, WPA2
Antenna	2 external
