Bell COCOON 300 - Assembly Step 1; Attach Seat Supports; Assembly Step 2; Attach Lower Brackets

DESCRIPTION OF PARTS
ITEM#
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
QUANTITY
1
1
1
1
2
3
1
1
1
1
1
2
DESCRIPTION
Seat
Right Seat Support
Left Seat Support
Foot Guard
Spring Guard
Foot Guard Fasteners
Seat Pad
Grab Bar
Shoulder Harness
Lap Belt
U-Bracket
Short Lower Bracket
ITEM#
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
QUANTITY
2
1
2
4
4
4
4
2
6
6
4
1
DESCRIPTION
Long Lower Bracket
Spacer Tube
Plastic Thread Protector
6mm x 30mm Round Hd. Sq. Neck Bolt
6mm Nylock Nut
6mm Split Lock Washer
8mm x 30mm Round Hd. Sq. Neck Bolt
8mm x 58mm Hex Bolt
8mm Nylock Nut
8mm Split Lock Washer
Vinyl Paint Protector
Red Reector With Adhesive Tape

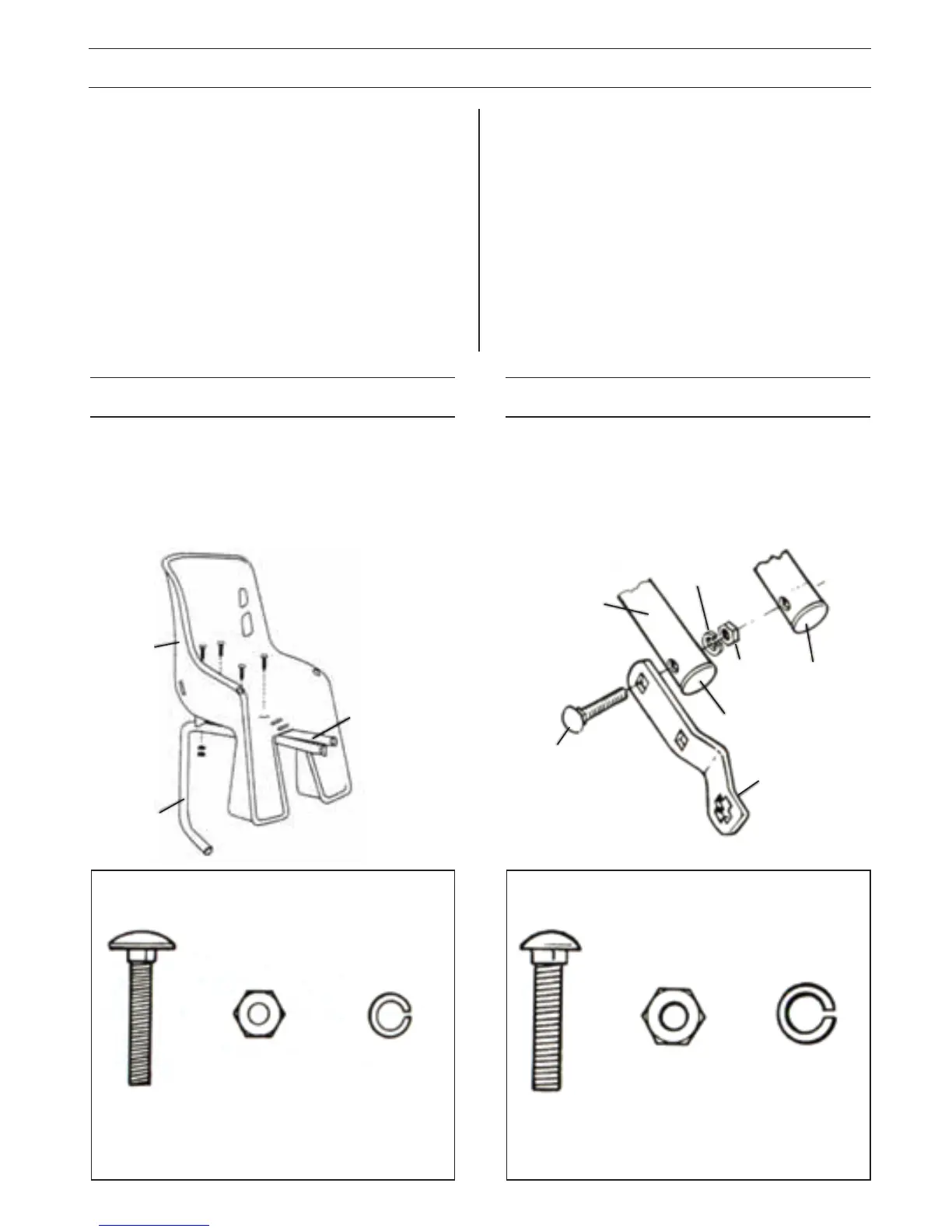

STEP 1 STEP 2
Fasten left and right seat supports to bottom of plastic
seat using four 6mm x 30mm Round Hd. Sq. Neck
Bolts, four 6mm Nylock and four 6mm Split Lock
Washers.
Attach the Long Lower Brackets to the bottom of the
seat supports and using two 8mm x 30mm Round Hd.
Sq. Neck Bolts, two 8mm Split Lock Washers and two
8mm Nylock Nuts. Be sure that the bolt heads face
outward and lock washers are in place as shown.
HARDWARE NEEDED FOR
STEP 1
HARDWARE NEEDED FOR
STEP 2
ITEM #16
6mm x 30mm
Round Hd. Sq. Neck Bolt
ITEM #17
6mm Nylock Nut
ITEM #18
6mm Split
Lock Washer
ITEM #19
8mm x 30mm
Round Hd. Sq. Neck Bolt
ITEM #20
8mm Nylock Nut
ITEM #21
8mm Split
Lock Washer
1
2
3
13
3 Left
Seat Support
8mm
Nylock Nut
Factory Inserted
White Plug Holes Aligned
8mm x 30mm
Round Head Bolt
2 Right
Seat Support
8mm Split
Lock Washer
