Bell cocoon 500 - Seat Post Mount Installation

sEAt POst mOunt –
usE hARdWARE “B”

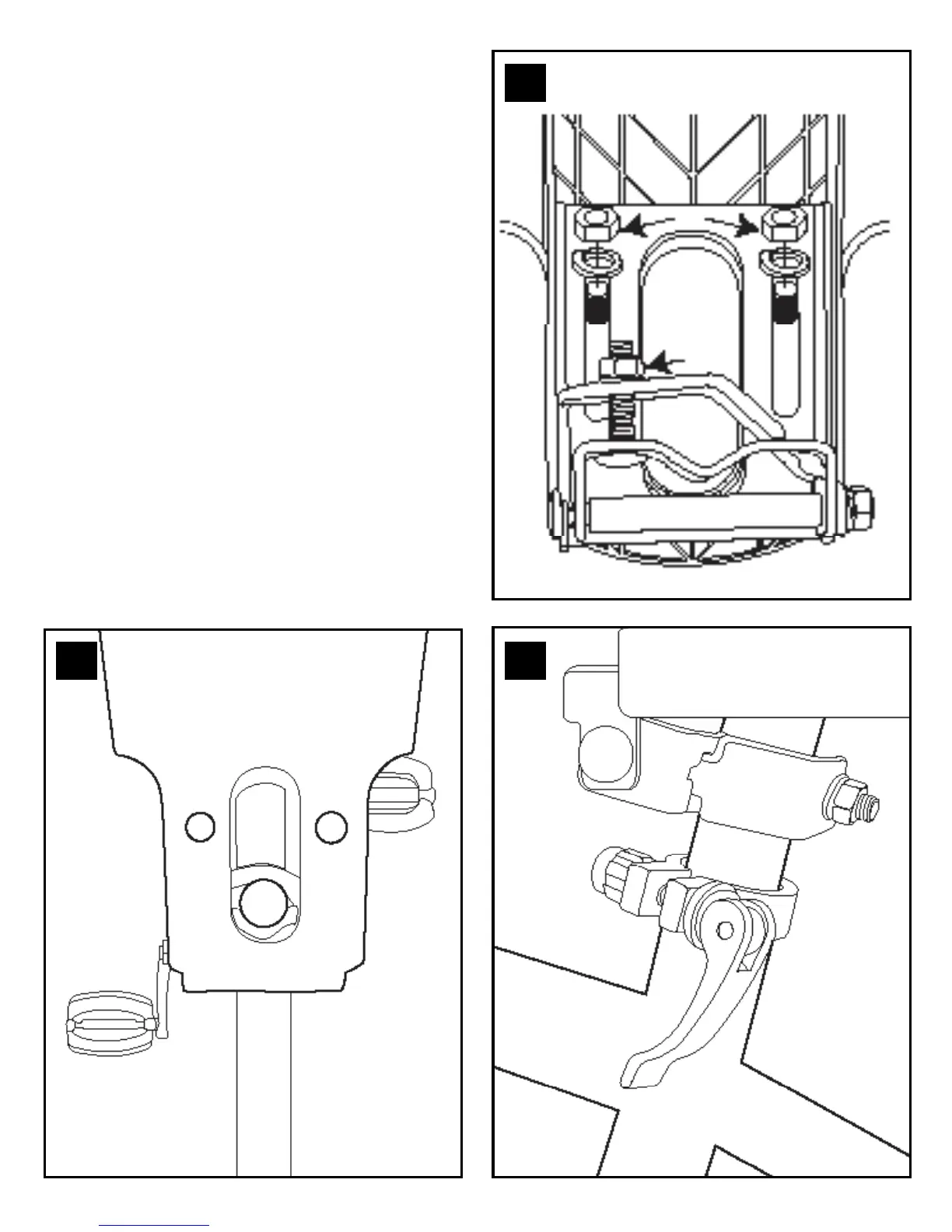

1. Place Mounting bracket on seat as
shown (Diagram 3).
2. Attach each bolt through seat and
mounting hardware and secure with
lockwasher and nuts (A).
instAlling Child sEAt tO
sEAt POst
1. Remove seat post from bicycle.
2. Loosen hardware so seat post ts inside
opening (Diagram 3C).
3. Place seat post mount over the post
hole and replace seat post onto bicycle
(Diagram 4 and Diagram 5)
4. Tighten seat post.
5. Tighten seat post mount to seat post
(Diagram 3B and Diagram 5).
3
54
B
A
C
