Bella 580 C - Page 158

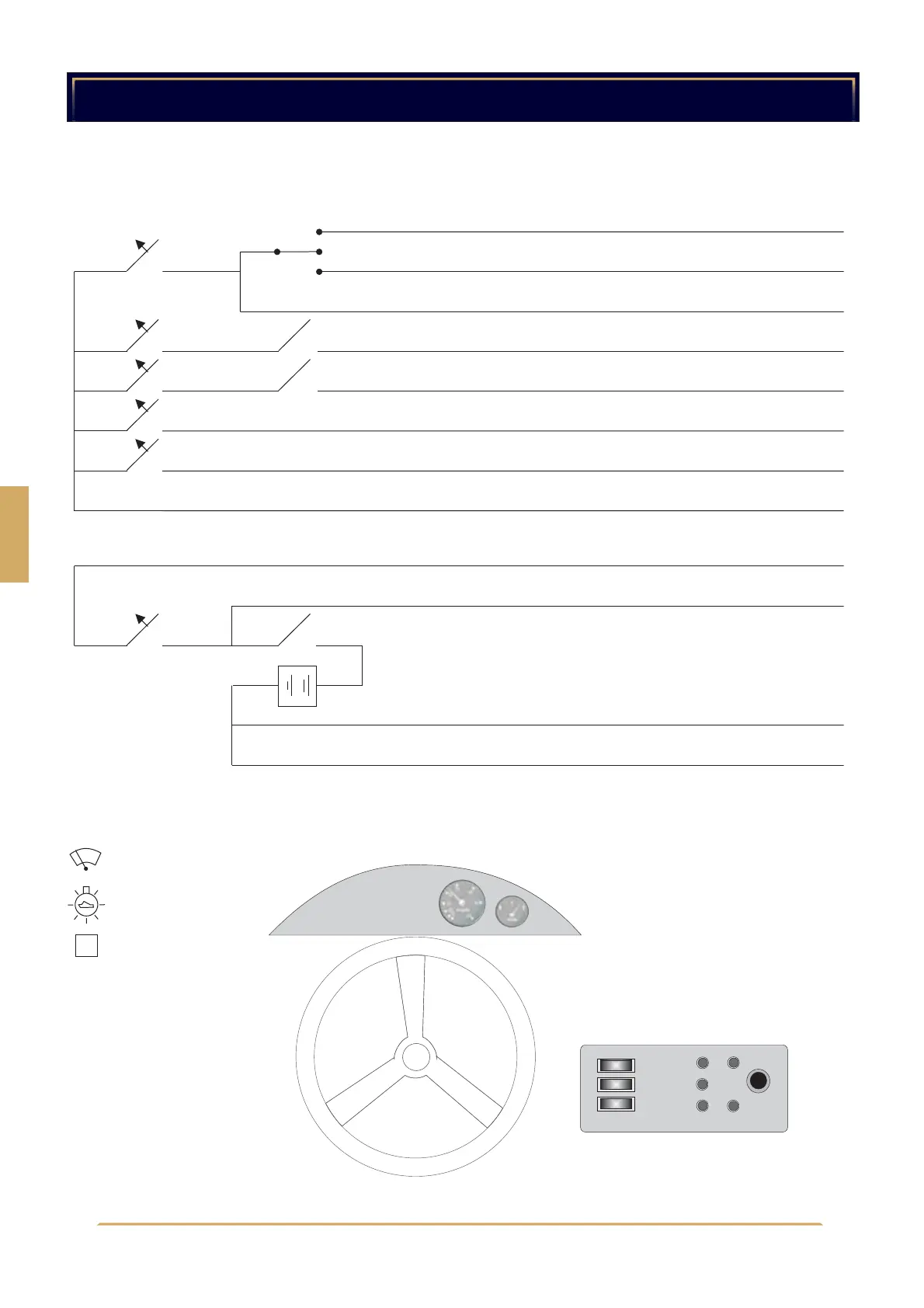

26. Wiring diagram
34
560 HT
CIRCUIT BREAKER
CONN.
SWITCH CABLE
N:O/COLOR
SIZE
mm2
FUNCTION
N:O AMP
1,5
F1
10
PINK
WHITE/BLUE
WHITE/GREEN
1,5
1,5 WIPER SB 1
WIPER SB 2
WIPER SB CONT.
RED 1,5
F2
10
NAV. LIGHTS
1,5
F3
10
1,5
F4
10
YELLOW CABIN LIGHTS 1
1,5
F5
10
12 V DC OUTLET
6
RED + INPUT
RED
RED
BLACK
BLACK
6
35
35
6
F1
25
BATTERY SWITCH
+ INPUT TO SWITCH PANEL
TO ENGINE
TO ENGINE
- INPUT TO SWITCH PANEL
ENG
Wiper
Nav. lights
F1
F2
F3
F4
F5
Navigation lights
Windshieldwiper
Switches
Empty
(F1) Windshieldwiper
(F2) Navigation lights
(F3) Empty
(F4) Cabin lights
(F5) Power outlet
Fuses
