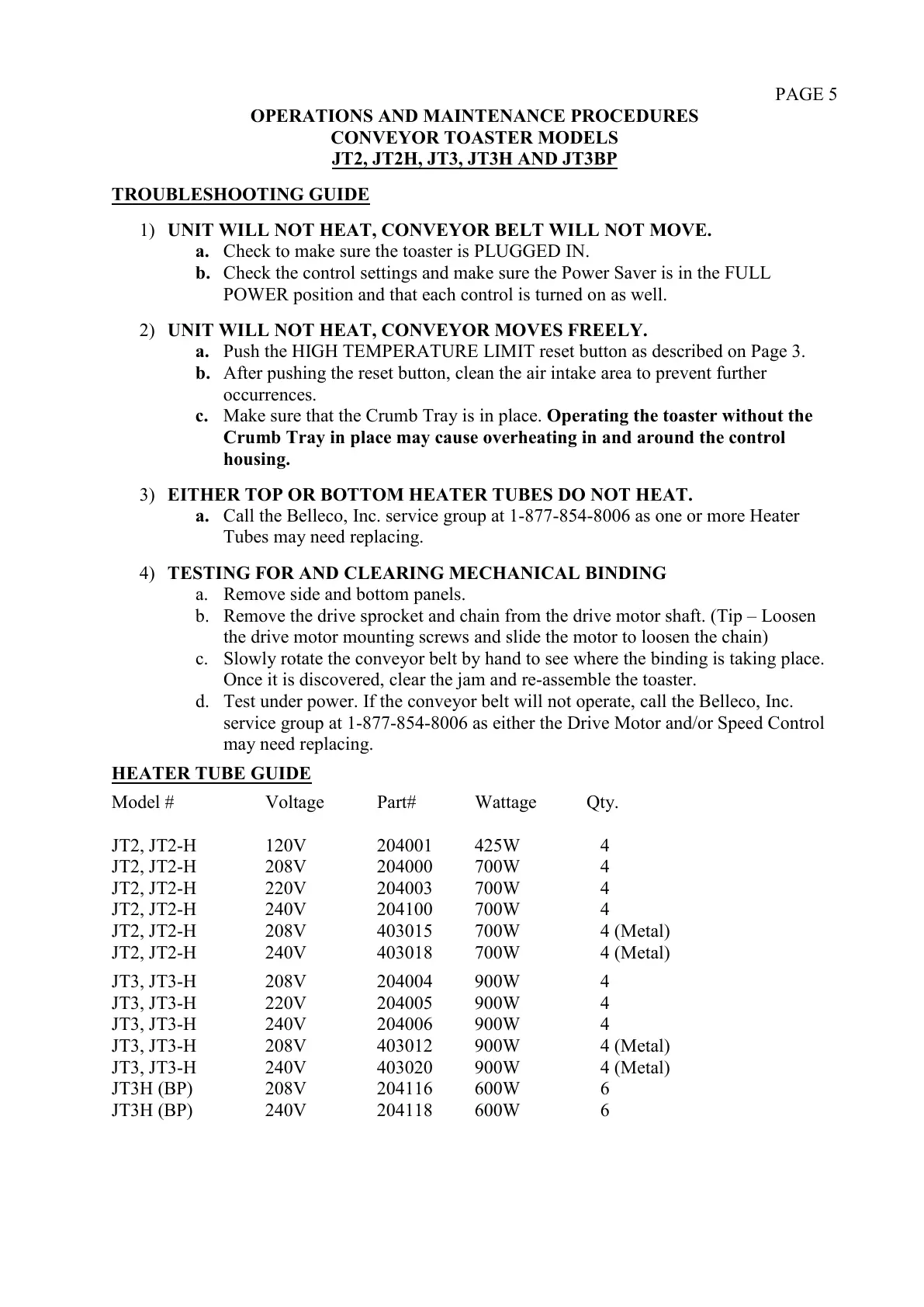

PAGE 5
OPERATIONS AND MAINTENANCE PROCEDURES
CONVEYOR TOASTER MODELS
JT2, JT2H, JT3, JT3H AND JT3BP
TROUBLESHOOTING GUIDE
1) UNIT WILL NOT HEAT, CONVEYOR BELT WILL NOT MOVE.
a. Check to make sure the toaster is PLUGGED IN.
b. Check the control settings and make sure the Power Saver is in the FULL
POWER position and that each control is turned on as well.
2) UNIT WILL NOT HEAT, CONVEYOR MOVES FREELY.
a. Push the HIGH TEMPERATURE LIMIT reset button as described on Page 3.
b. After pushing the reset button, clean the air intake area to prevent further
occurrences.
c. Make sure that the Crumb Tray is in place. Operating the toaster without the
Crumb Tray in place may cause overheating in and around the control
housing.
3) EITHER TOP OR BOTTOM HEATER TUBES DO NOT HEAT.
a. Call the Belleco, Inc. service group at 1-877-854-8006 as one or more Heater
Tubes may need replacing.
4) TESTING FOR AND CLEARING MECHANICAL BINDING
a. Remove side and bottom panels.
b. Remove the drive sprocket and chain from the drive motor shaft. (Tip – Loosen
the drive motor mounting screws and slide the motor to loosen the chain)
c. Slowly rotate the conveyor belt by hand to see where the binding is taking place.
Once it is discovered, clear the jam and re-assemble the toaster.
d. Test under power. If the conveyor belt will not operate, call the Belleco, Inc.
service group at 1-877-854-8006 as either the Drive Motor and/or Speed Control
may need replacing.
HEATER TUBE GUIDE
Model # Voltage Part# Wattage Qty.
JT2, JT2-H 120V 204001 425W 4
JT2, JT2-H 208V 204000 700W 4
JT2, JT2-H 220V 204003 700W 4
JT2, JT2-H 240V 204100 700W 4
JT2, JT2-H 208V 403015 700W 4 (Metal)
JT2, JT2-H 240V 403018 700W 4 (Metal)
JT3, JT3-H 208V 204004 900W 4
JT3, JT3-H 220V 204005 900W 4
JT3, JT3-H 240V 204006 900W 4
JT3, JT3-H 208V 403012 900W 4 (Metal)
JT3, JT3-H 240V 403020 900W 4 (Metal)
JT3H (BP) 208V 204116 600W 6
JT3H (BP) 240V 204118 600W 6
