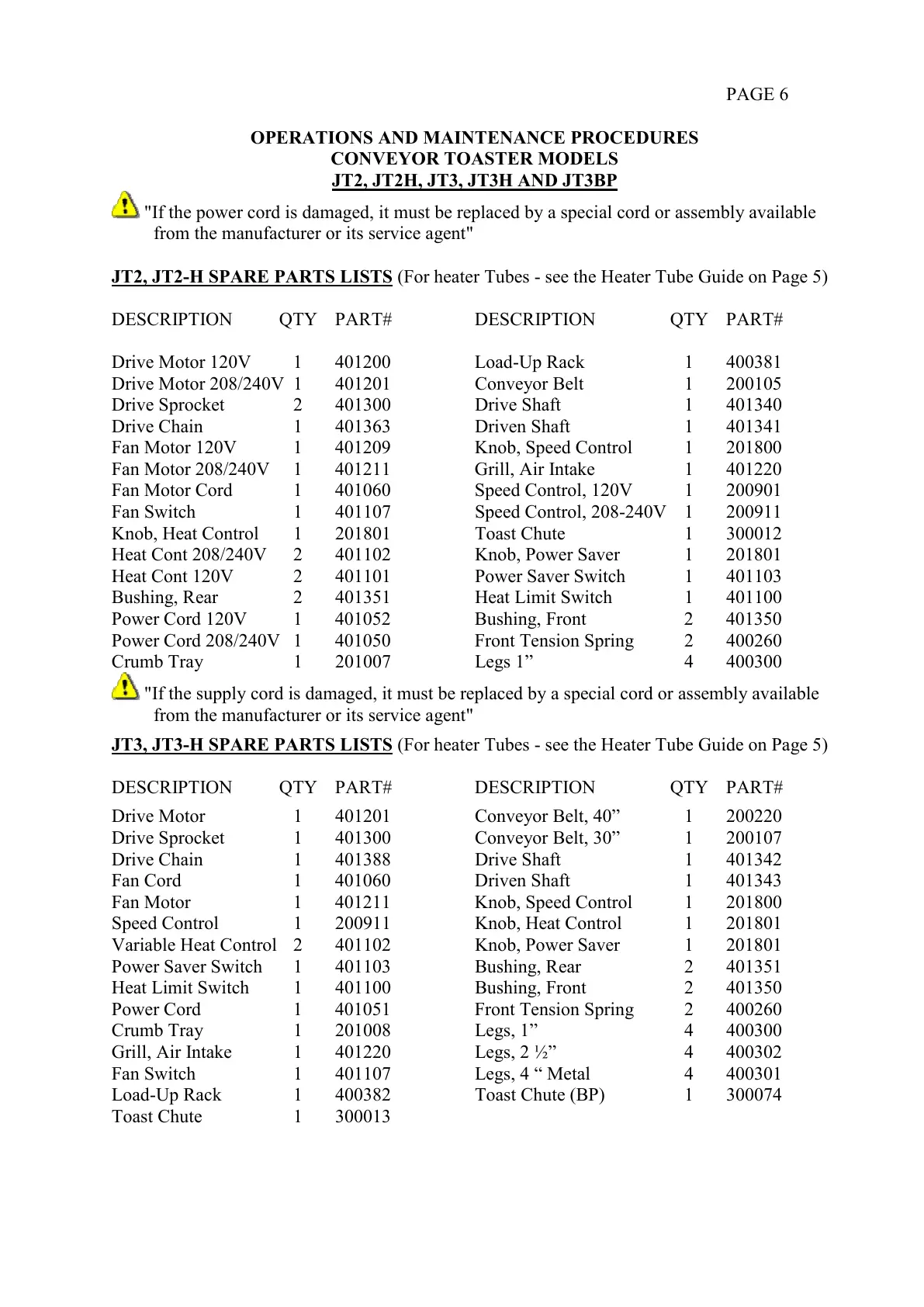

PAGE 6
OPERATIONS AND MAINTENANCE PROCEDURES
CONVEYOR TOASTER MODELS
JT2, JT2H, JT3, JT3H AND JT3BP
"If the power cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer or its service agent"
JT2, JT2-H SPARE PARTS LISTS (For heater Tubes - see the Heater Tube Guide on Page 5)
DESCRIPTION QTY PART# DESCRIPTION QTY PART#
Drive Motor 120V 1 401200 Load-Up Rack 1 400381
Drive Motor 208/240V 1 401201 Conveyor Belt 1 200105
Drive Sprocket 2 401300 Drive Shaft 1 401340
Drive Chain 1 401363 Driven Shaft 1 401341
Fan Motor 120V 1 401209 Knob, Speed Control 1 201800
Fan Motor 208/240V 1 401211 Grill, Air Intake 1 401220
Fan Motor Cord 1 401060 Speed Control, 120V 1 200901
Fan Switch 1 401107 Speed Control, 208-240V 1 200911
Knob, Heat Control 1 201801 Toast Chute 1 300012
Heat Cont 208/240V 2 401102 Knob, Power Saver 1 201801
Heat Cont 120V 2 401101 Power Saver Switch 1 401103
Bushing, Rear 2 401351 Heat Limit Switch 1 401100
Power Cord 120V 1 401052 Bushing, Front 2 401350
Power Cord 208/240V 1 401050 Front Tension Spring 2 400260
Crumb Tray 1 201007 Legs 1” 4 400300
"If the supply cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer or its service agent"
JT3, JT3-H SPARE PARTS LISTS (For heater Tubes - see the Heater Tube Guide on Page 5)
DESCRIPTION QTY PART# DESCRIPTION QTY PART#
Drive Motor 1 401201 Conveyor Belt, 40” 1 200220
Drive Sprocket 1 401300 Conveyor Belt, 30” 1 200107
Drive Chain 1 401388 Drive Shaft 1 401342
Fan Cord 1 401060 Driven Shaft 1 401343
Fan Motor 1 401211 Knob, Speed Control 1 201800
Speed Control 1 200911 Knob, Heat Control 1 201801
Variable Heat Control 2 401102 Knob, Power Saver 1 201801
Power Saver Switch 1 401103 Bushing, Rear 2 401351
Heat Limit Switch 1 401100 Bushing, Front 2 401350
Power Cord 1 401051 Front Tension Spring 2 400260
Crumb Tray 1 201008 Legs, 1” 4 400300
Grill, Air Intake 1 401220 Legs, 2 ½” 4 400302
Fan Switch 1 401107 Legs, 4 “ Metal 4 400301
Load-Up Rack 1 400382 Toast Chute (BP) 1 300074
Toast Chute 1 300013
