Bellini BDC302TG - Cupboard Cutout Specifications

6

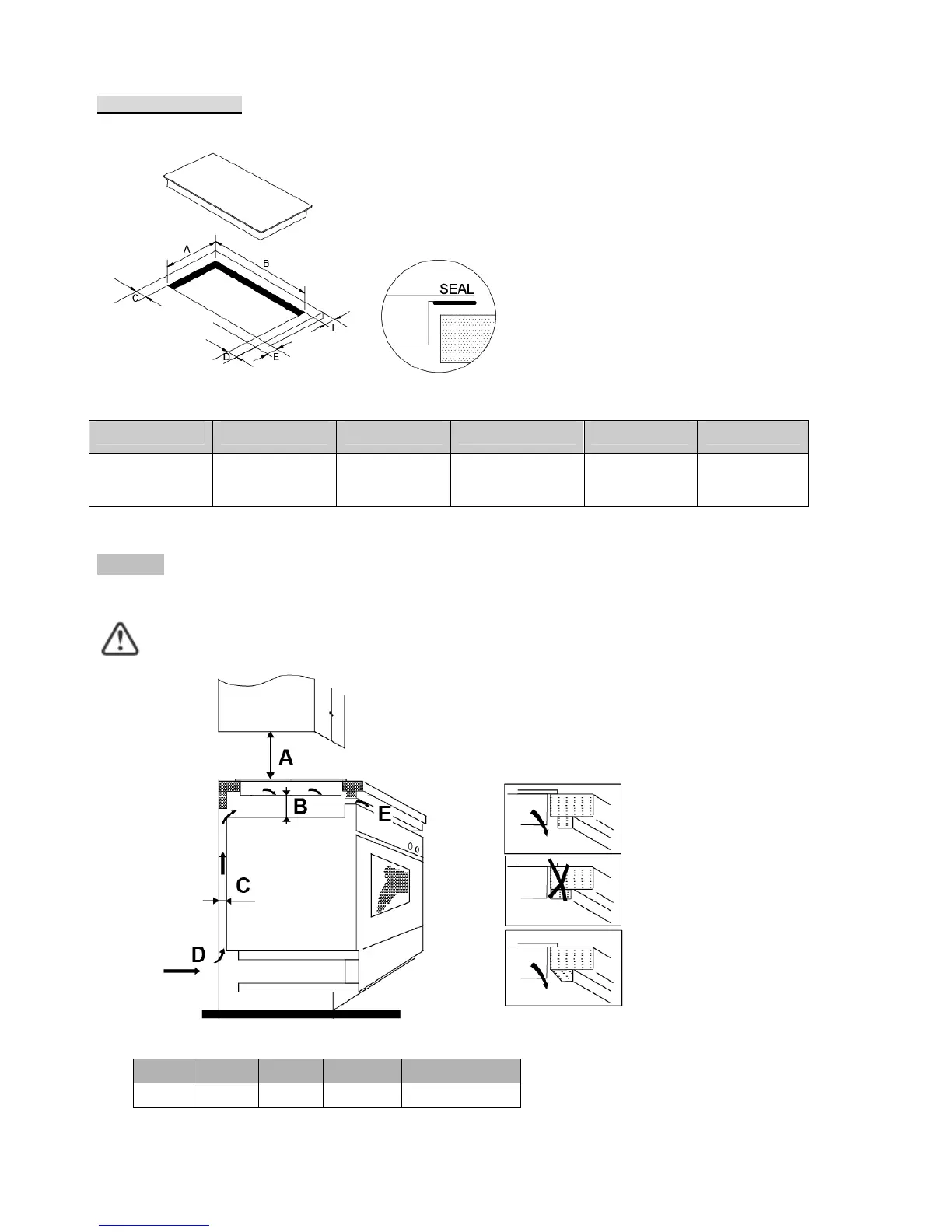

1. Cupboard Cutting
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
268
＋4
-0
500
＋4
-0
50mini 50 mini 50 mini
50 mini
Important
Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are
not blocked. Ensure the Induction cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least
760mm.
A(mm) B(mm) C(mm) D E
760 50 mini 30 mini Air intake Air exit 10mm
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Mode
l: BDC302TG Fineline: 5103057 30cm Built In Ceramic Cooktop
