Installation
Before you install the hob, make sure that
the work surface is square and level, and no structural members interfere with space requirements
the work surface is made of a heat-resistant material and at least 30mm thick.
if the hob is installed above an oven, the oven has a built-in coolin
g fan
the installation will comply with all clearance requirements and applicable standards and regulations
a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the
permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The
isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or
in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the hob installed
you consult local building authorities and by-laws if in doubt regarding installation
you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surroundi
ng
the hob.
When you have installed the hob, make sure that
the power supply cable is not accessible through cupboard doors or drawers
there is adequate flow of fresh air from outside the cabinetry to the base of the hob
if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the
base of the hob
the isolating switch is easily accessible by the custom
er
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls
protruding from the hob.

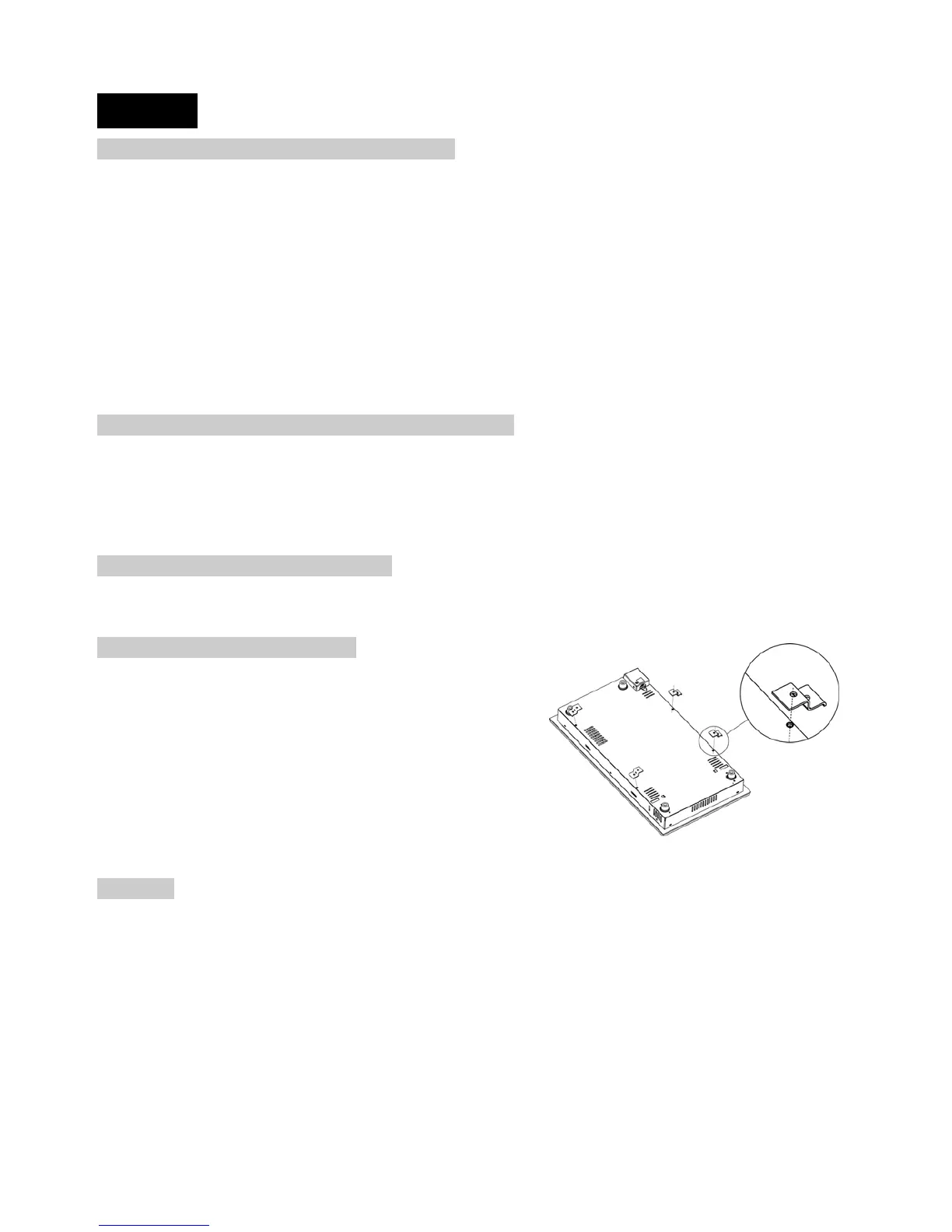

Adjusting the bracket position
Fix the hob on the work surface by screw 4 brackets on the bottom
of hob(see picture) after installation.
Adjust the bracket position to suit for different table top thickness.
Cautions
The induction hotplate must be installed by qualified personnel or technicians. We have professionals at
your service. Please never conduct the operation by yourself.
The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer,
as the humidity may damage the hob electronics
The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its
reliability.
The wall and induced heating zone above the table surface shall withstand heat.
To avoid any damage, the sandwich layer and adhesive must be resistant to hea
t.
