3 Hardware Installation
3.1 Connections
1. Connect VGA cable from monitor to computer VGA port
2. Connect USB cable to computer USB port
3. Connect power cord to touch monitor
4. Plug power cord to wall AC power outlet

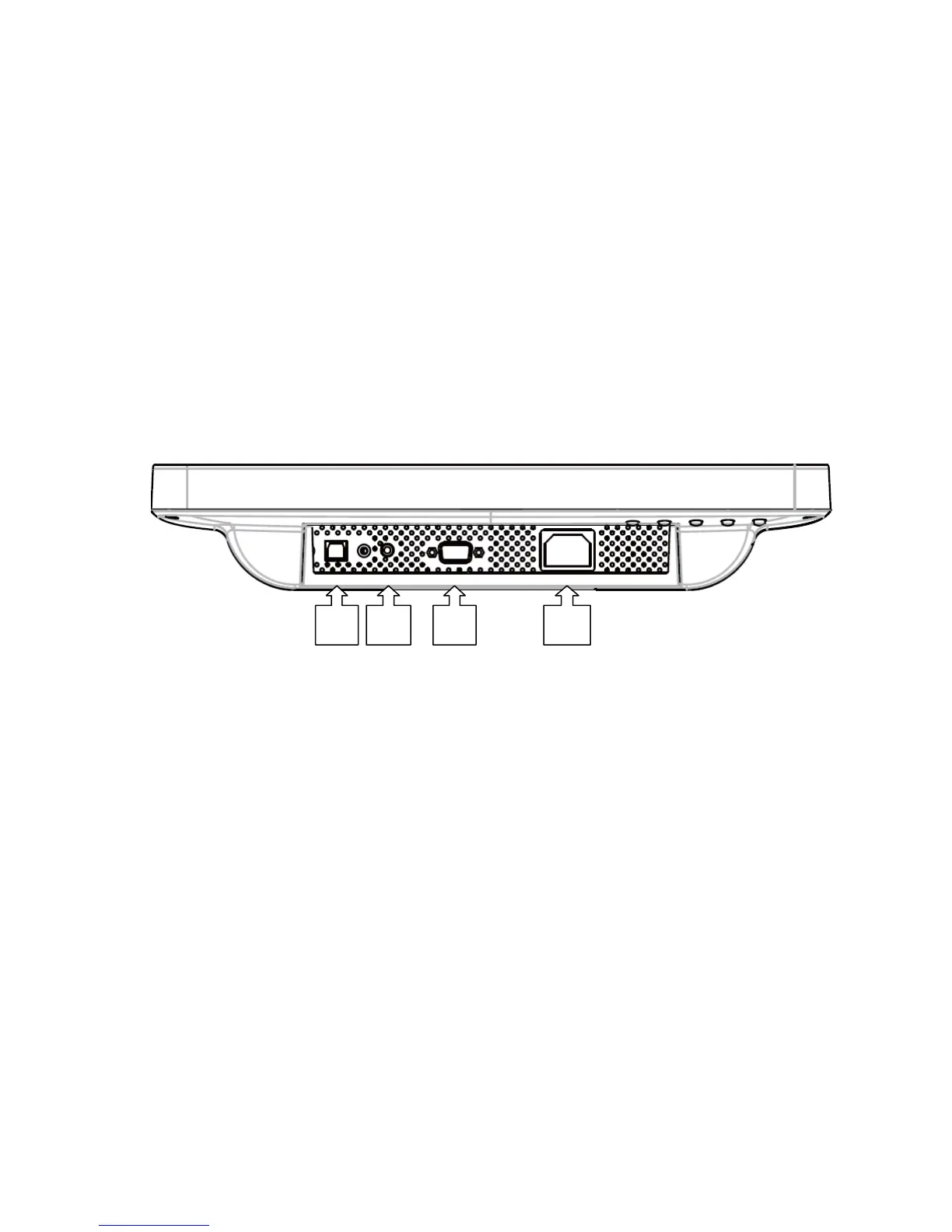

Connectors:
1 AC in: AC power input
2 VGA port: D-Sub 15 pin VGA video input
3 Audio in: Stereo phone jack audio input
4 Touch interface: USB touch input
2
3
4
1

Bematech LE1015 Specifications

General

Aspect ratio	4:3
Screen shape	Flat
Response time	12 ms
Display diagonal	15 \
Touch technology	Multi-touch
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Display technology	LCD
Touchscreen technology	Resistive
Viewing angle, vertical	145 °
Contrast ratio (typical)	800:1
Display diagonal (metric)	38.1 cm
Viewing angle, horizontal	160 °
Product color	Black
Audio input	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	30 W
Power consumption (off)	0.5 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Wall mountable	No
Panel mounting interface	100 x 100 mm

Weight and Dimensions

Depth (without stand)	230 mm
Width (without stand)	364 mm
Height (without stand)	326 mm
Weight (without stand)	5500 g
