13
Nominal Voltage ..................... 208V, 220V, 230V, 240V
Cycle ...................................................................60 Hz
Phase .......................................................Single-Phase
Power Supply Circuit ....................................... 50 Amps
Plug/Receptacle ......................................... NEMA 6-50
CIRCUIT REQUIREMENTS FOR 115V ADAPTOR
This machine can be converted to operate on a power supply circuit that has
a verified ground and meets the requirements listed below. (Refer to Voltage
Conversion instructions for details.)
Nominal Voltage ............................... 110V, 115V, 120V
Cycle ...................................................................60 Hz
Phase .......................................................Single-Phase
Power Supply Circuit ....................................... 20 Amps
Plug/Receptacle ......................................... NEMA 5-15
GROUNDING REQUIREMENTS
This machine MUST be grounded. In the event of certain malfunctions or
breakdowns, grounding reduces the risk of electric shock by providing a path of
least resistance for electric current. This machine is equipped with a power cord
that has an equipment-grounding wire and a grounding plug. Only insert plug into a
matching receptacle (outlet) that is properly installed and grounded in accordance
with all local codes and ordinances. DO NOT modify the provided plug! Improper
connection of the equipment-grounding wire can result in a risk of electric shock.

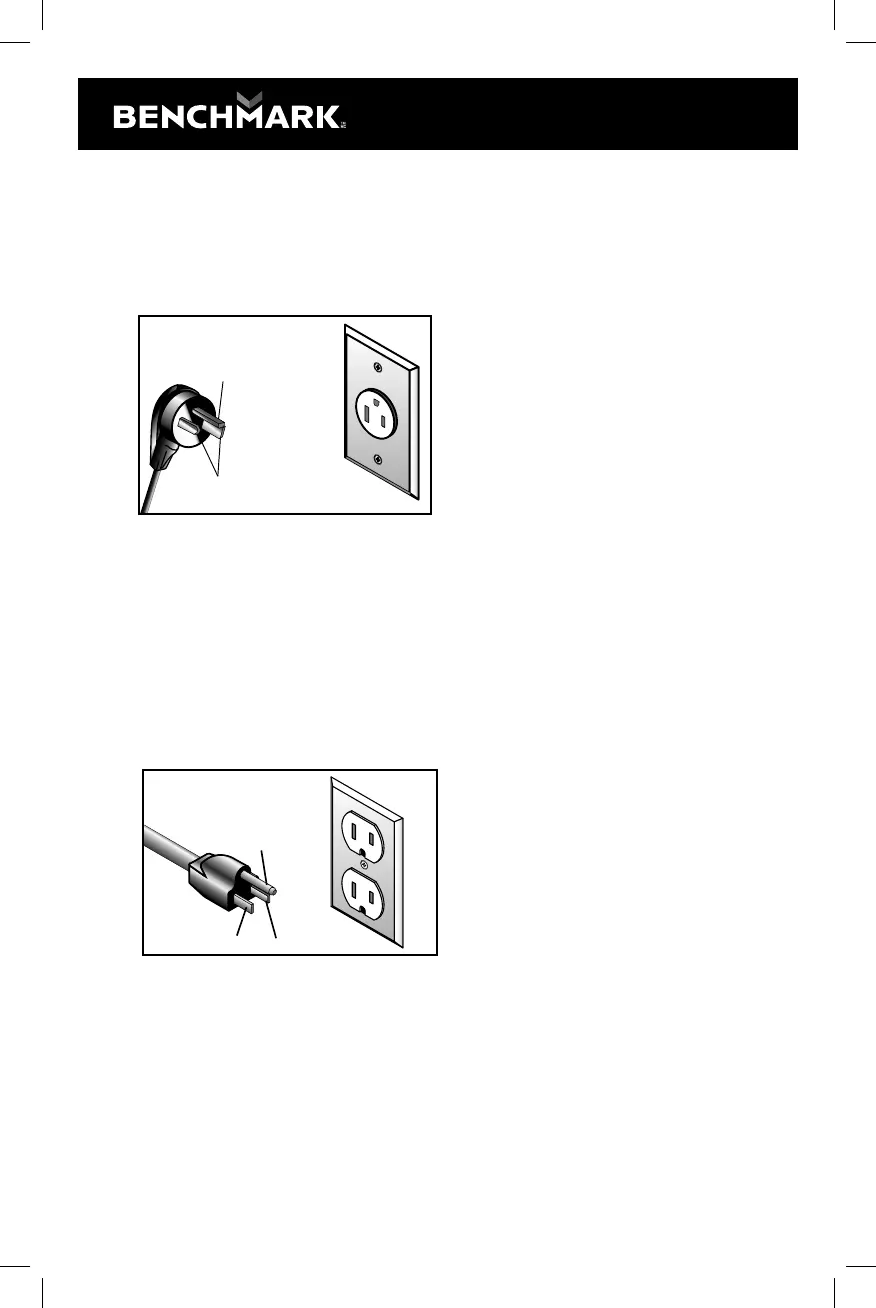

Figure 2. Typical 5-15 plug and receptacle.
Grounding Pin
Neutral Hot
5-15 PLUG
GROUNDED
5-15 RECEPTACLE
Figure 1. NEMA 6-50 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-50 GROUNDED
RECEPTACLE
6-50
PLUG
