Benchmark 1347-001 - Know Your Mitre Saw; Component Identification Diagram

1347-001
20V MAX 7-1/4” SLIDING COMPOUND MITRE SAW
14

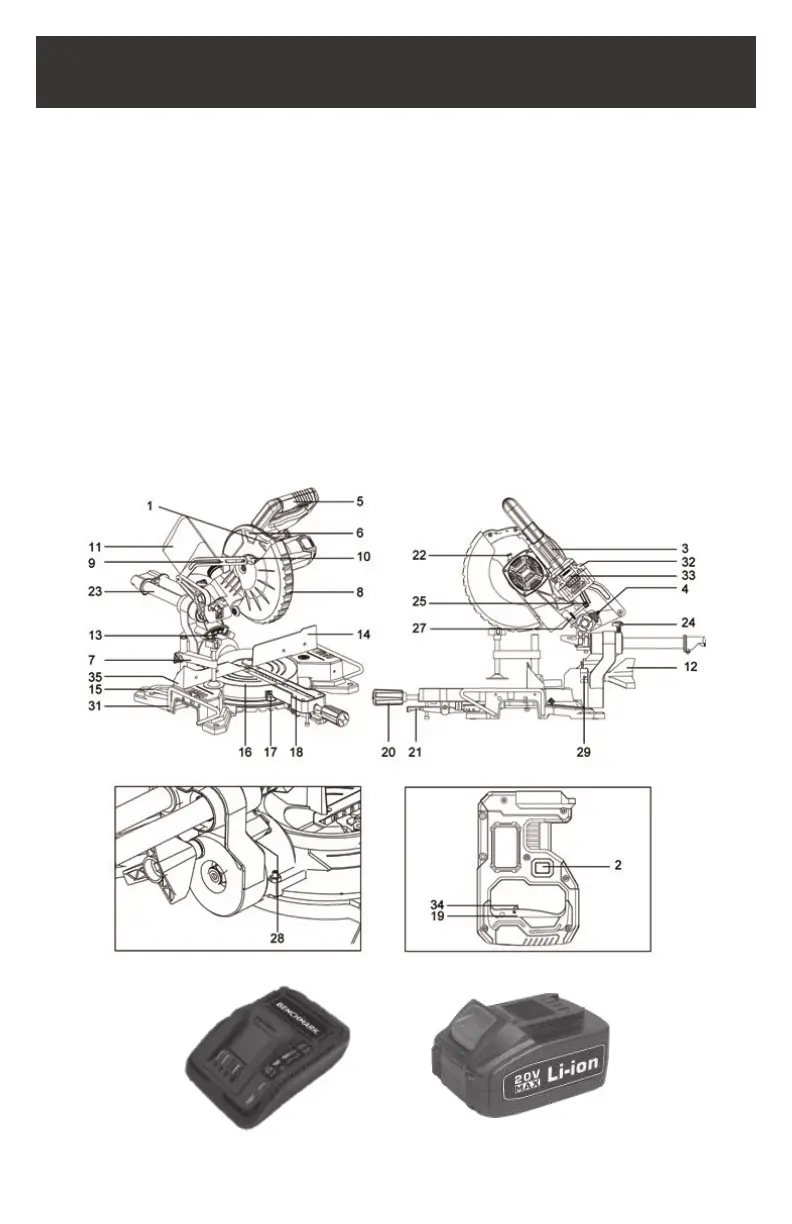

KNOW YOUR 20V MAX 7 1/4” SLIDING
COMPOUND MITRE SAW
1. Build in LED
2. LED ON/OFF switch
3. Saw arm
4. Release knob
5. Operating handle
6. Upper fixed blade guard
7. G clamp
8. Rotating blade guard
9. Guard retraction arm
10. Blade bolt cover
11. Dust bag
12. Bevel lock
13. Bevel scale
14. Fence
15. 6mm hex key
16. Mitre table
17. Mitre scale
18. Table insert
19. Trigger switch
20. Mitre lock knob
21. Mitre latch
22. Spindle lock
23. Slide bars
24. Slide lock
25. Trenching depth adjustment screw
26. Trenching stop
27. Trenching depth lock nut
28. 45°bevel adjustment screw
29. 0°bevel adjustment screw
30. Release latch
31. Side support bars (x2)
32. Battery pack
33. Battery lock
34. Switch lock
35. Fence
36. Charger
36 32
