1347-001
20V MAX 7-1/4” SLIDING COMPOUND MITRE SAW
16
NOTES:
1. When the charger is plugged into the wall receptacle and NO battery
is on the charger, the green indicator light (5) will turn ON indicating the
charger is “live”.
2. When a discharged battery is installed on the charger, the green indicator light
will turn OFF and the red indicator light (6) will turn ON. The red indicator light
indicates the battery is being charged.
3. If the red indicator light does not come ON, check to make sure battery pack
is slid fully onto the charger and the electrical outlet is working properly.
4. See Fig. 3 below for other indicator light functions.
5. A discharged battery pack should be fully charged in approximately 2.5 hrs.
6. It is normal for the battery charger to hum and be warm to the touch
during operation.
7. If the battery pack does not charge properly, check to make sure the electrical
outlet is “live”.
8. Do NOT charge batteries when the work area or the battery temperature
is at or below 5°C / 41°F or above 40.5°C / 105°F.
GREEN
LIGHT
RED
LIGHT
BATTERY
INSERTED
INTO CHARGER
CHARGING STATUS
ON OFF NO
Charger connected
to power supply
OFF Blink YES
Battery being
charged
ON OFF YES
Battery fully charged
OFF ON YES
Battery is charged
but not operational
on tool. This may
indicate defective /
bad contact
on battery.
ON ON YES
Charging conditions
are either too hot
or too cold

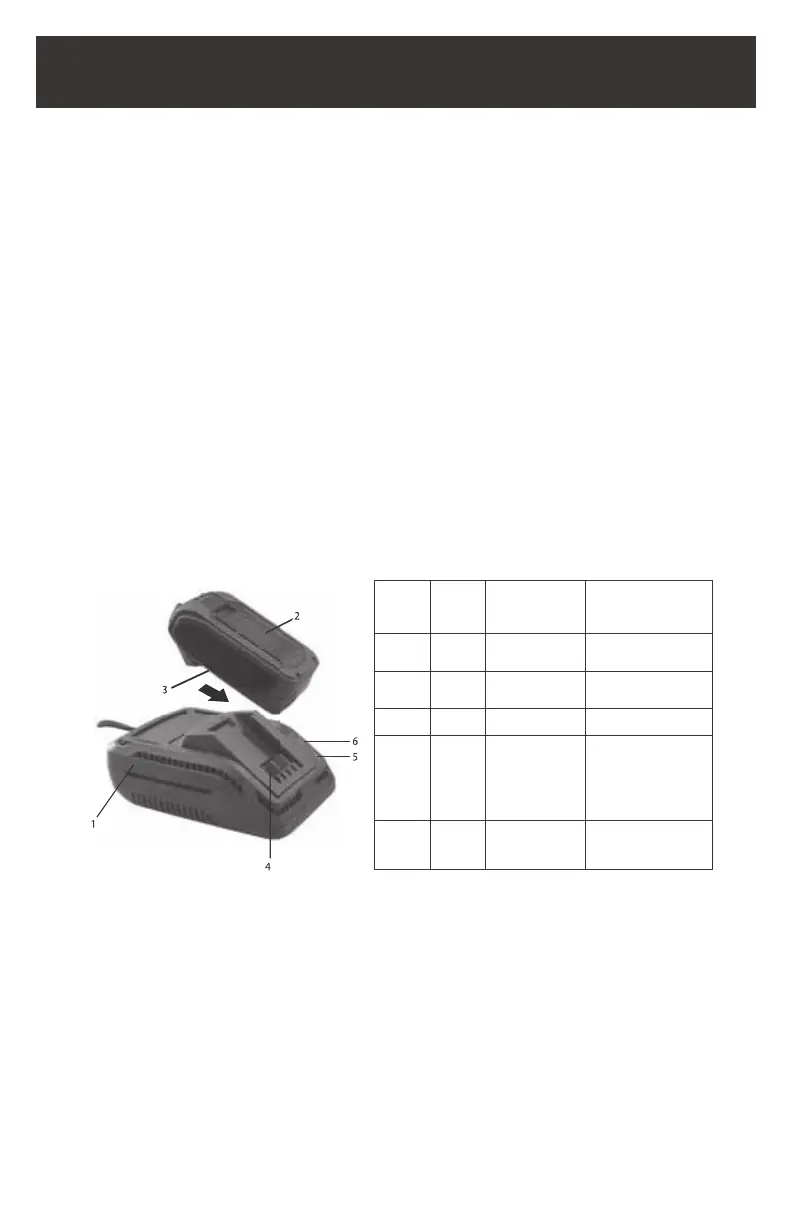

Fig. 1 Fig. 2
