9
MOWER ASSEMBLY
NOTE: Do not completely tighten bolts until assembly is complete.

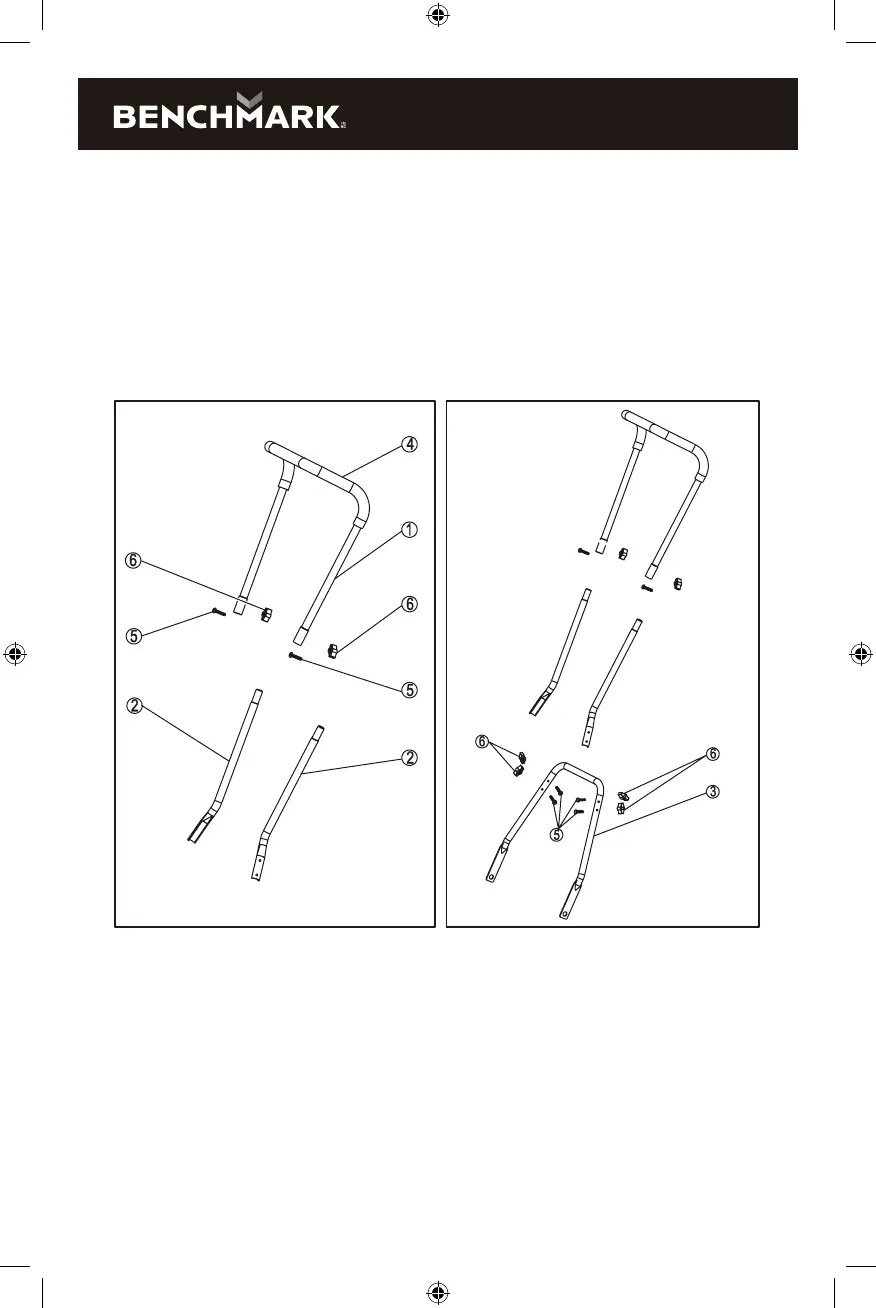

Insert the two center handle pieces (2) into the left and right side of the upper
handle (1) and secure with two carriage bolts (5) and knobs (6) provided. (Fig. 2)
• Attach the upper handle sub-assembly previously assembled, to the lower (3)
handle sub-assembly using four carriage bolts (5) and knobs (6) provided. (Fig. 3)
• Tighten all the knobs on the joints of the handle assembly.
Fig. 2 Fig. 3
