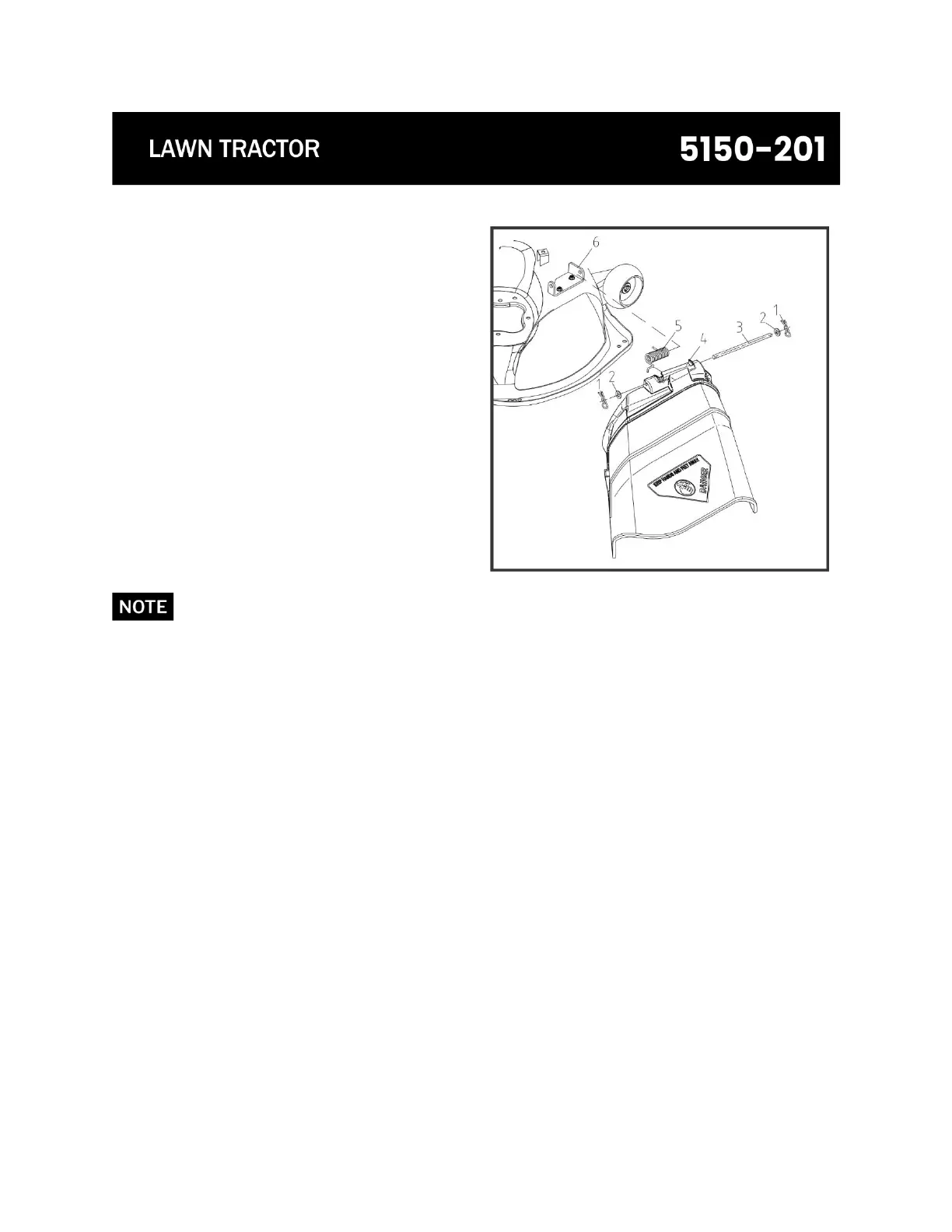

MOUNTING THE SIDE DEFLECTOR
1. Insert the elastic pin (1) and washer
(2) into the right end of the pin (3).
2. Insert the pin shaft into the side
deflector (4), bracket (6) and torsion
spring (5) in sequence and insert the
washer (2) and elastic latch (1) at the
other end.
When you need to open the side deector, please press the self-locking button
rst, and do not force it to open.
MOUNTING THE TOWING KIT
1. Remove the tension arm bushing (2), the hexagonal flange bolts M8 X 20 (3), and
the hexagonal flange locking nuts M8 (1) that secures the gearbox cover (4).
2. Insert the bushing (2) into the two holes where the bolts were just removed, align
the towing plate (5), and then install the hexagonal flange bolts M8 X 40 (3),
3. Remove the tension arm bushing (2), the hexagonal flange bolts M8 X 20 (3), and
the hexagonal flange locking nuts M8 (1) that secured the gearbox cover (4).
4. Insert the bushing (2) into the two holes where the bolts were just removed, align
the towing plate (5), and then install the hexagonal flange bolts M8 X 40 (3),
hexagonal flange locking nut M8 (1), and then tighten the bolt.
