31

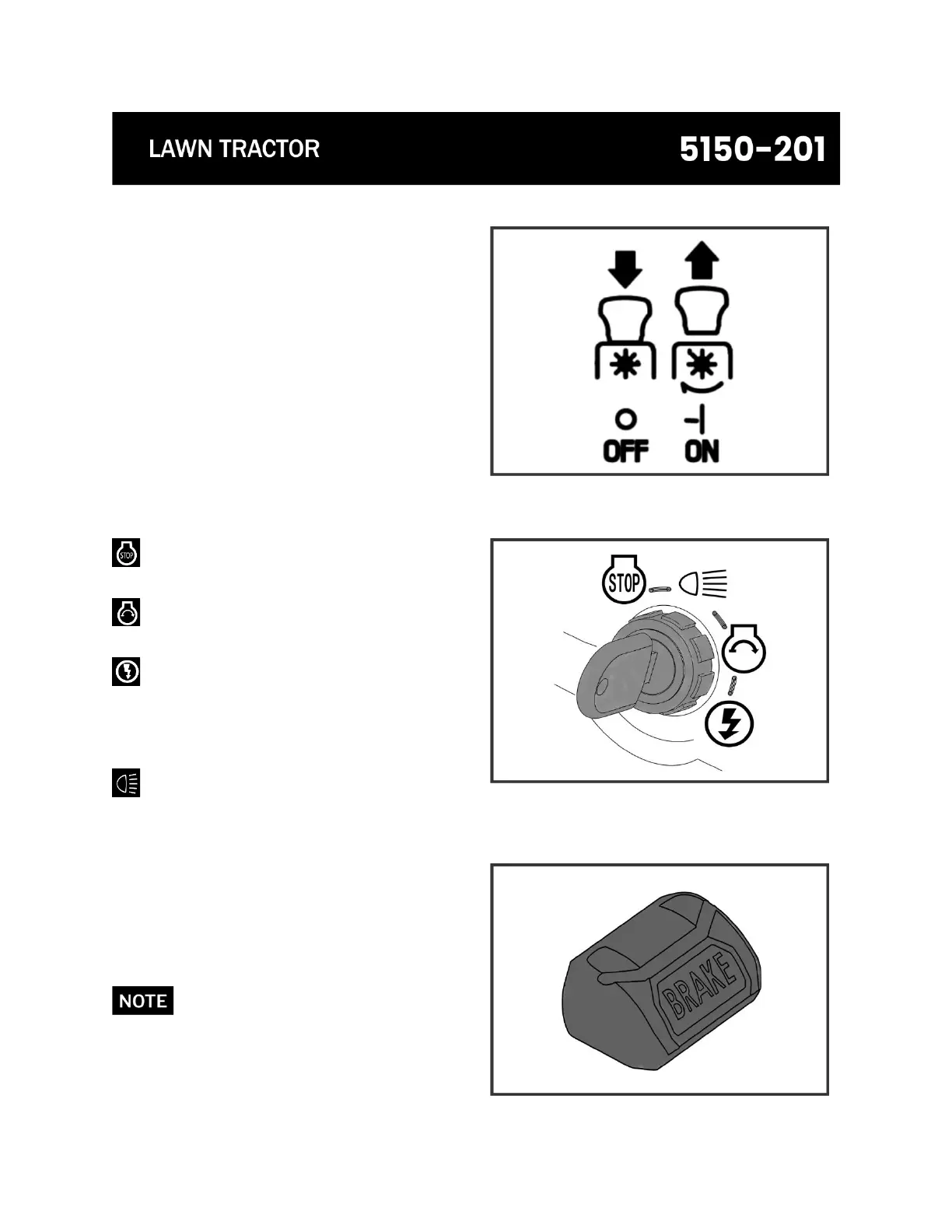

BLADE START/STOP KNOB (12)
The blade start/stop knob is located on
the RH console in front of the key switch.
The blade start/stop knob operates the
electric clutch.
Pull the knob upward to engage the
blades or push the knob downward to
disengage the blades.
IGNITION SWITCH (13)
This key operated control has four positions:
OFF position: Everything is switched
off.
ON position: Activates all parts
except the head light.
START position: Makes electrical
contact and engages the starter motor.
If you release the key on START, it will
automatically return to ON.
When the key is in this position, power
is sent to the headlights.
BREAK PEDAL (5)
The brake pedal is located on the left
front side of the board.
The brake pedal can be used for sudden
stops or setting the parking brake.
When the machine is moving,
keep your foot off the brake pedal.
