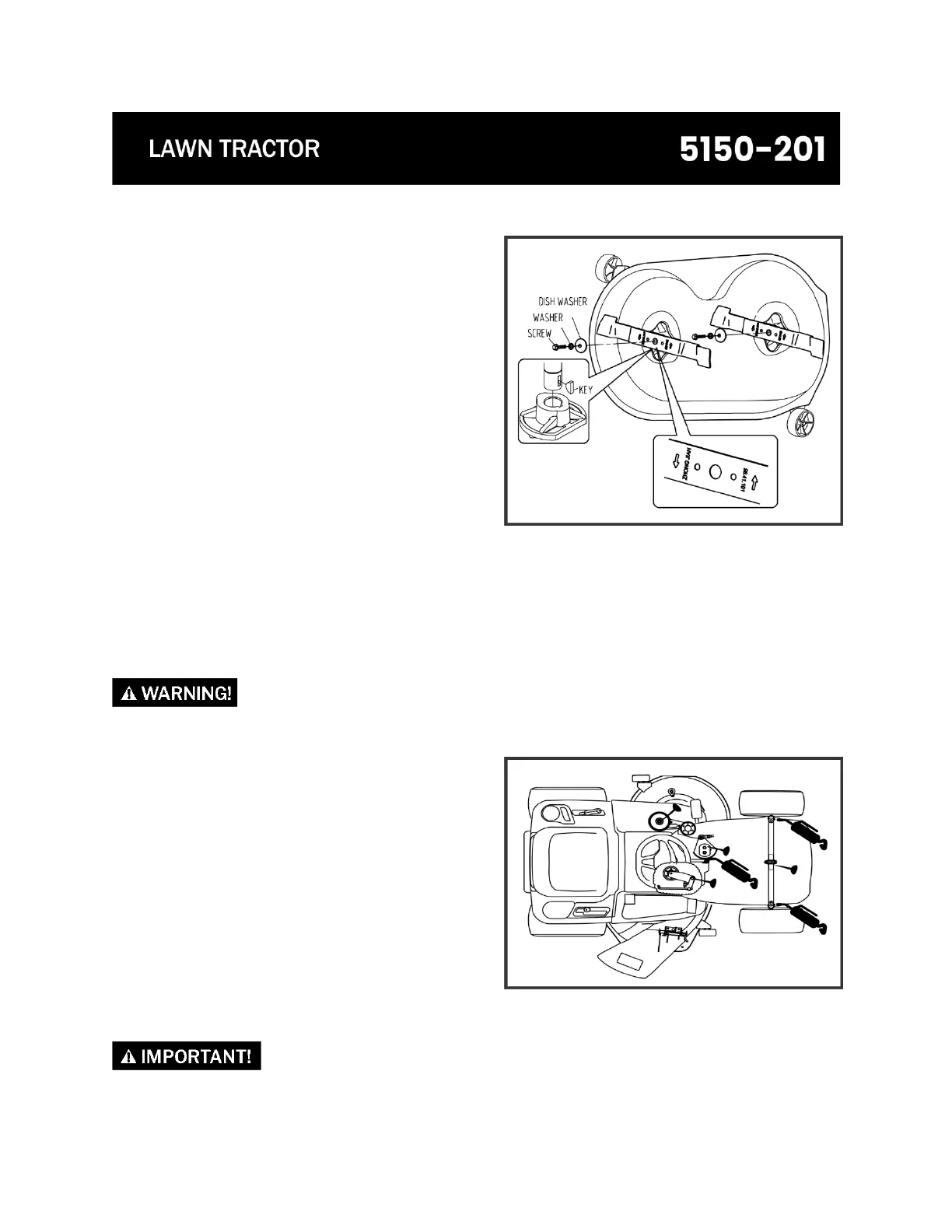

DISMANTLING
1. Loosen counterclockwise the screw.
REMOUNTING
1. Make sure the printed code on the
blade faces the operator while
remounting the blade.
2. Check that the concave part of the
disc washer presses against the
blade.
3. Remount the shaft hubs, making
sure the keys are securely lodged in
place.
TIGHTENING THE SCREWS
1. Tightening clockwise with a torque
wrench calibrated to 40~45 N.m.
REPLACING THE BELT
The belt replacement must be carried out at a Licensed Service Centre. Replace the
belts as soon as they show obvious sign of wear!
ALWAYS USE GENUINE REPLACEMENT BELTS!
LUBRICATION
1. Apply grease with an injector to the
areas shown. Apply two or three
shots of grease and wipe off excess
grease.
2. Lubricate the areas shown with
engine oil. Wipe the area clean,
apply a few drops of oil, then wipe
up drips or spills.
Do not dirty the belt, brake shoe, or tire with grease or oil. Oil or
grease will damage them.
