25-TON LOG SPLITTER - OWNER'S MANUAL
UNPACKING THE CONTAINER

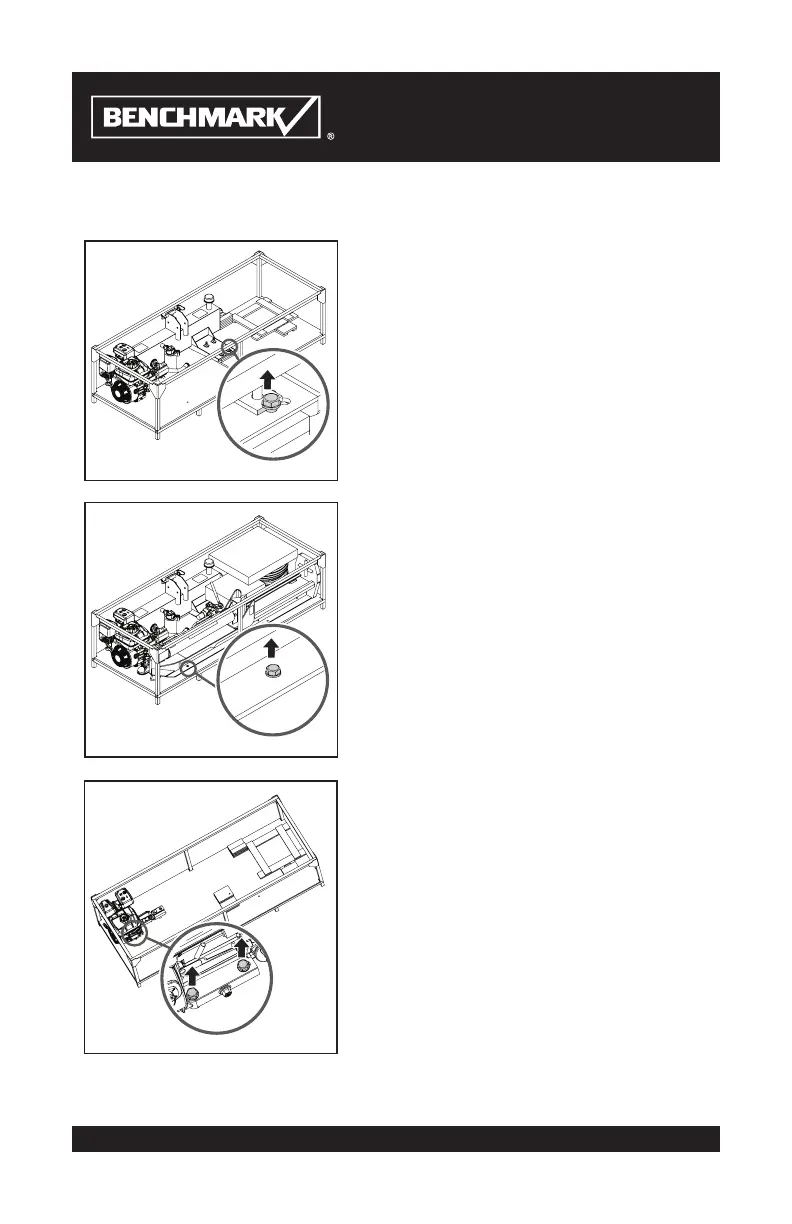

1. Remove plastic wrap on crate.
2. Remove restraining bolts (tee nut bolts) from
the beam. Use a 13mm wrench or socket to re-
move the two hex bolts that are securing the
beam to the crate bottom (as shown below).
Please note that the two hex bolts are located
diagonally opposed to each other.
3. Remove beam and cylinder assembly from
metal crate with assistance of a helper. Lift beam
and cylinder assembly to its vertical position
standing upright on the beam’s footplate.
4. Use a 13mm wrench or socket to remove the
single hex bolt that is securing the tank assem-
bly to the crate bottom (as shown below).
5. Use a 13mm wrench or socket to remove the
two hex bolts that secure the engine to the crate
bottom (as shown below).
6. Remove Tank & Engine Assembly from crate,
then remove the engine assembly.
