6
BW SERIES
2.2 ASSEMBLY INSTRUCTIONS
Setup of your pressure washer is designed to get you up and running as quickly as
possible. Cut the four corners of the carton from top to bottom instead of attempting to
lift it out of the box.

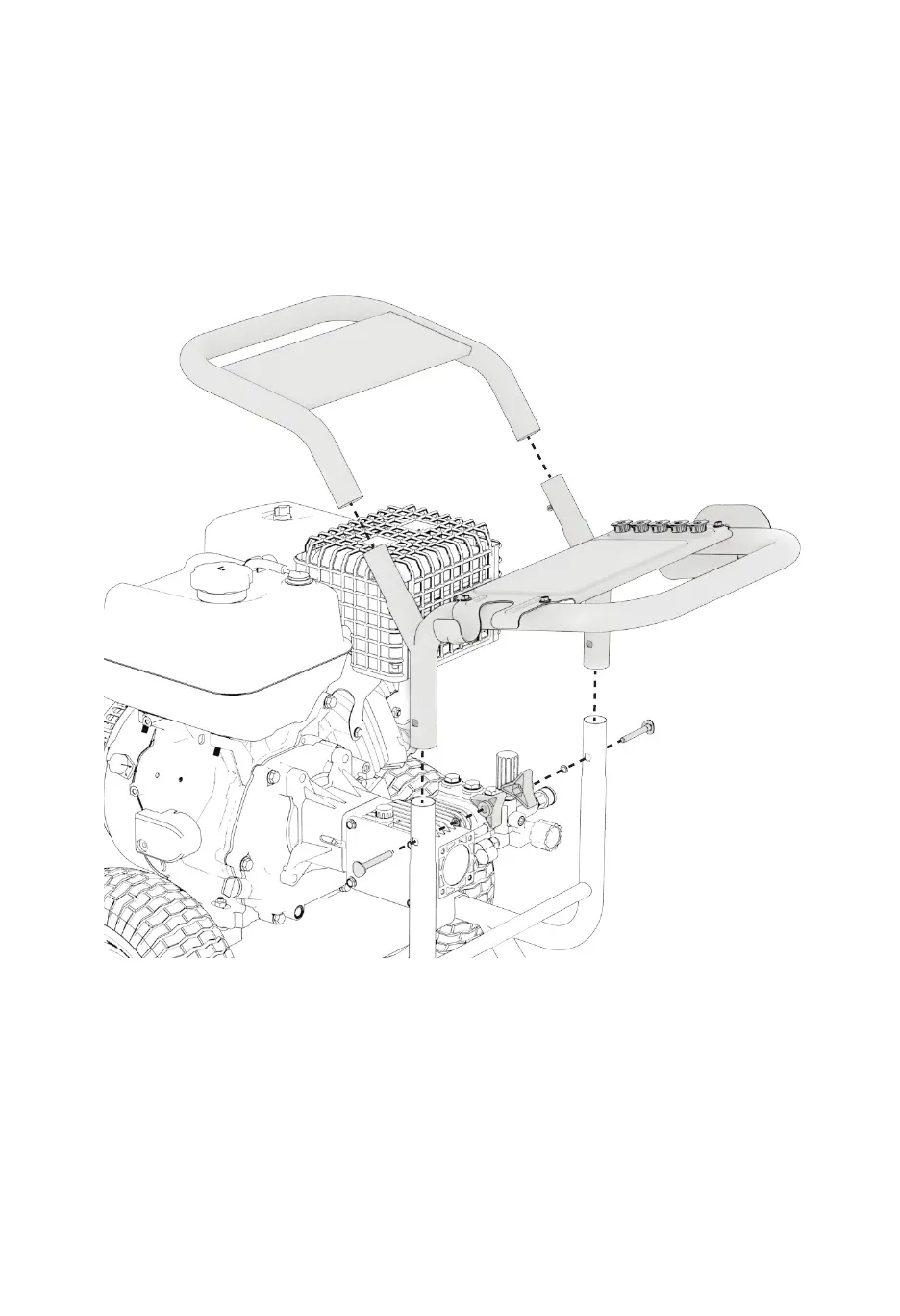

Assembling the Handle
1. Slide the main handle onto the frame.
2. Pass the saddle bolts through the hole from the outside.
3. Tighten the knobs to secure it in place.
4. Slide the upper handle onto the main handle. Press in the spring pins until
the upper handle slides down all the way and snaps in place.
