XLR Output Attenuation Jumpers (P5, P6, P7, and P8):
One pair of 8-pin headers controls the output level at each XLR jack as follows:
• 0 dB - (Attenuator disabled) – (Jumper plug between pins 1 and 2 of each header)
• -10 dB – (Jumper plug between pins 3 and 4 of each header)
• -20 dB – ***(Jumper plug between pins 5 and 6 of each header)
• -30 dB – (Jumper plug between pins 7 and 8 of each header)
*** = Factory Default

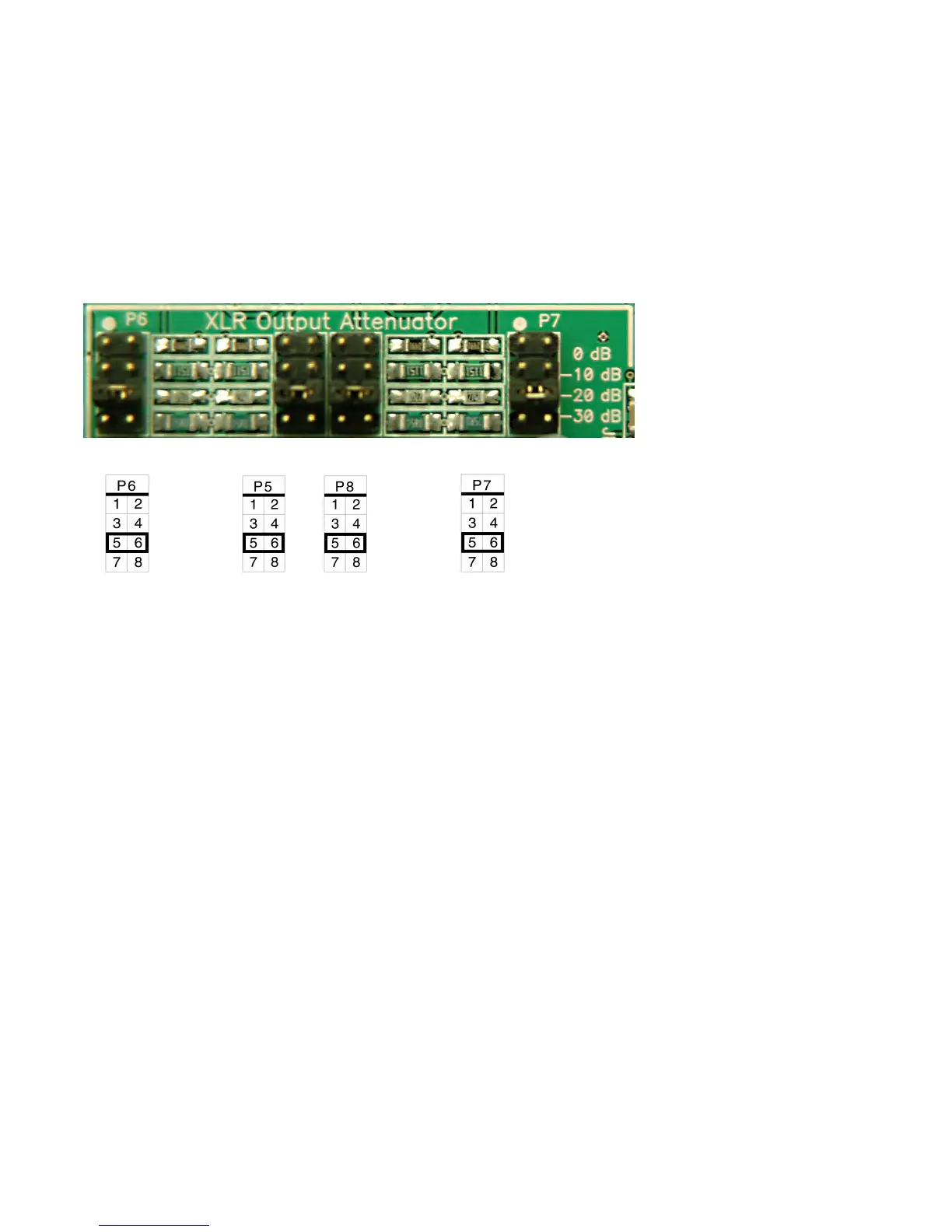

Photo 3 - XLR Output Attenuation Jumpers (P5, P6, P7, and P8)
LEFT
0 dB
-10 dB
-20 dB ***
-30 dB
RIGHT
0 dB
-10 dB
-20 dB ***
-30 dB

Benchmark DAC1 Specifications

General

Type	DAC
Inputs	Optical
Outputs	RCA, XLR, 1/4" Headphone
Sample Rate	Up to 192 kHz
Bit Depth	24-bit
THD+N	< 0.001%
Power Supply	100-240V AC, 50/60 Hz
