9
CEMENT MIXER - OWNER'S MANUAL
2. Insert a M8X20 cross headed screw
into each mounting hole in the rim.
Secure each bolt from below with
a flat washer, lock washer and nut.
Make sure the tightening prOcess is
carried out progressively.
3. Secure the mixing blades to the
upper drum by inserting two
M8X20 cross headed screws, from
the outside through the holes in
the drum.
4. A leather washer should be posi-
tioned inside between the drum
and blade. Secure the mixing
blade on the inside using a flat
washer, spring washer and nut.
5. Finally, ensure top and bottom
mixing blade mountings are tight.

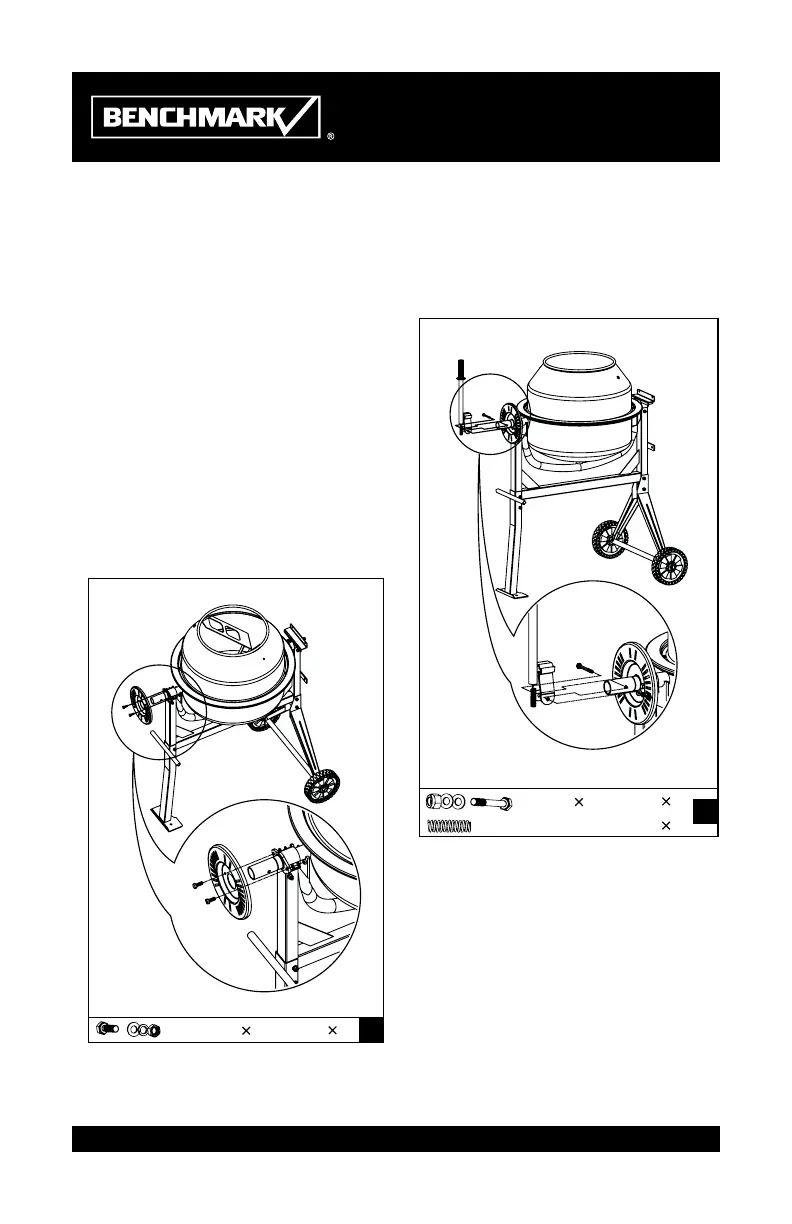

1. Slide the locking plate over the
large diameter shaft at the leg end
of the frame with the rim facing in-
wards as shown. Secure with two
M8X25 bolts, each with a nut, lock
and flat washers.
2. Insert the spring into the bar pipe.
Holding it in place with a finger,
place the bar over the larger diam-
eter shaft so that the shaft retains
the spring. Press down on bar
until the holes in the bracket line
up with the hole drilled. Insert a
M10X65 hex bolt and screw on a
nut with flat washers from the oth-
er side. Screw the nut up against
the bracket firmly, but not so tight-
ly so as to prevent the bar from
pivoting about the bolt.
G
2
M8 25
THE TIPPING BAR
H
1
1
M10 65
