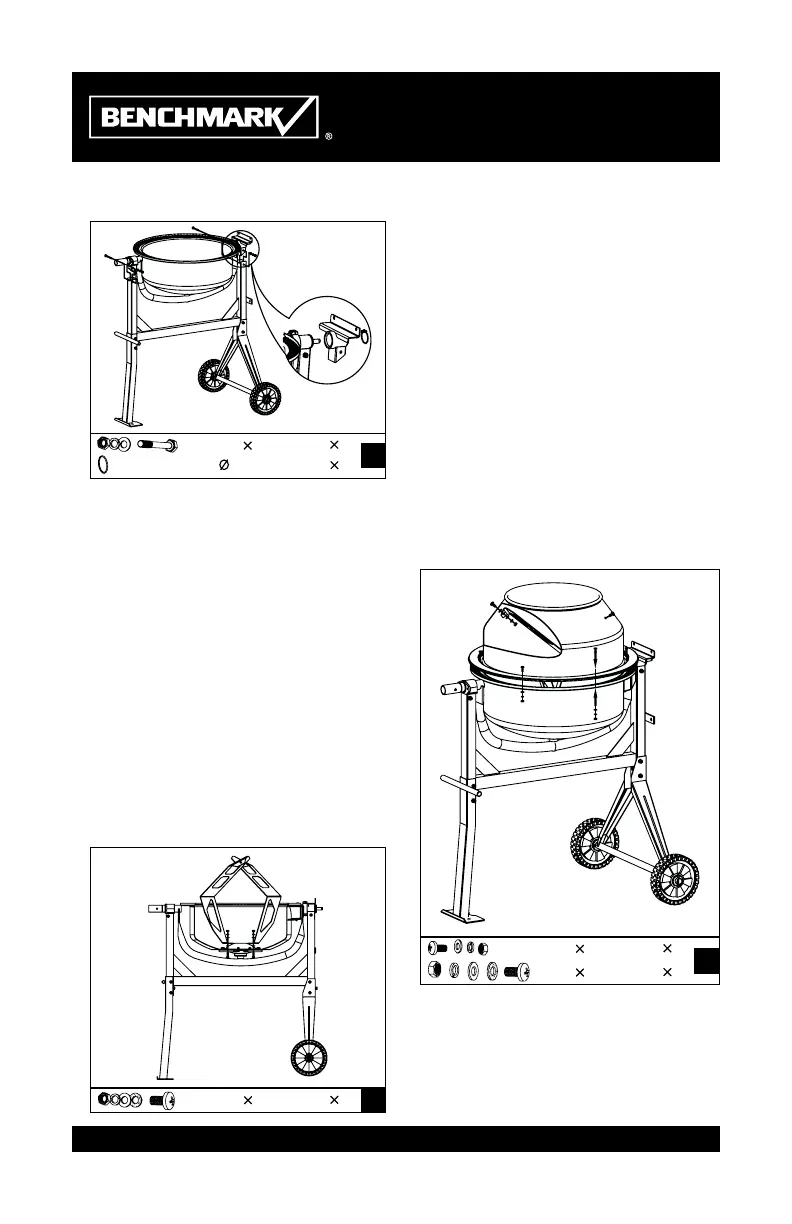

THE BOTTOM DRUM
THE MIXING BLADES
THE UPPER DRUM
1. Slide the bearing block on the
shaft. Hold it in place with Ø 42
spiral ring.
2. Carefully, and with two people,
set the bottom drum with support
arm onto the side supports of the
stand as shown, so that the bear-
ing blocks slot into the channels
provided by the side supports. The
larger diameter shaft should be at
the leg end of the stand.
3. At each side, line up the holes in
the side support with those in the
bearing block and insert a M8X65
hex bolt from one side, then a
flat washer, lock washer and nut
from the other side. Tighten with
a wrench.
Mount the mixing blades inside the bot-
tom drum loosely as shown - Two holes
are provided at the base of the drum into
which a M8X20 bolt may be inserted
from the outside. A leather washer, flat
washer, lock washer and a nut should be
threaded on loosely on the inside. The
leather washer should be placed under
the blade down against the drum.
NOTE: Two arrows are labeled on upper
drum and bottom drum to make their
position relative. If you have any diffi-
culty in correctly positioning the mixing
blades, it is helpful if you temporarily
mount the upper drum on the top of the
bottom drum, rotating it so that the two
arrows line up.
1. Position the upper drum on bottom
drum over the rim, making sure the
mounting holes align in both as
well as the labeled arrows.
D
2
M8 65
142
E
2
M8 20
F
6
2
M8 20
M8 20
To Next Page
