Benchmark HCM400 Owner's Manual

10
2620-176
Lining up the keyways, slide the transmis-
sion case over the pinion shaft. Secure the
case to the frame with four M8 lock nuts.
OPERATING
INSTRUCTIONS

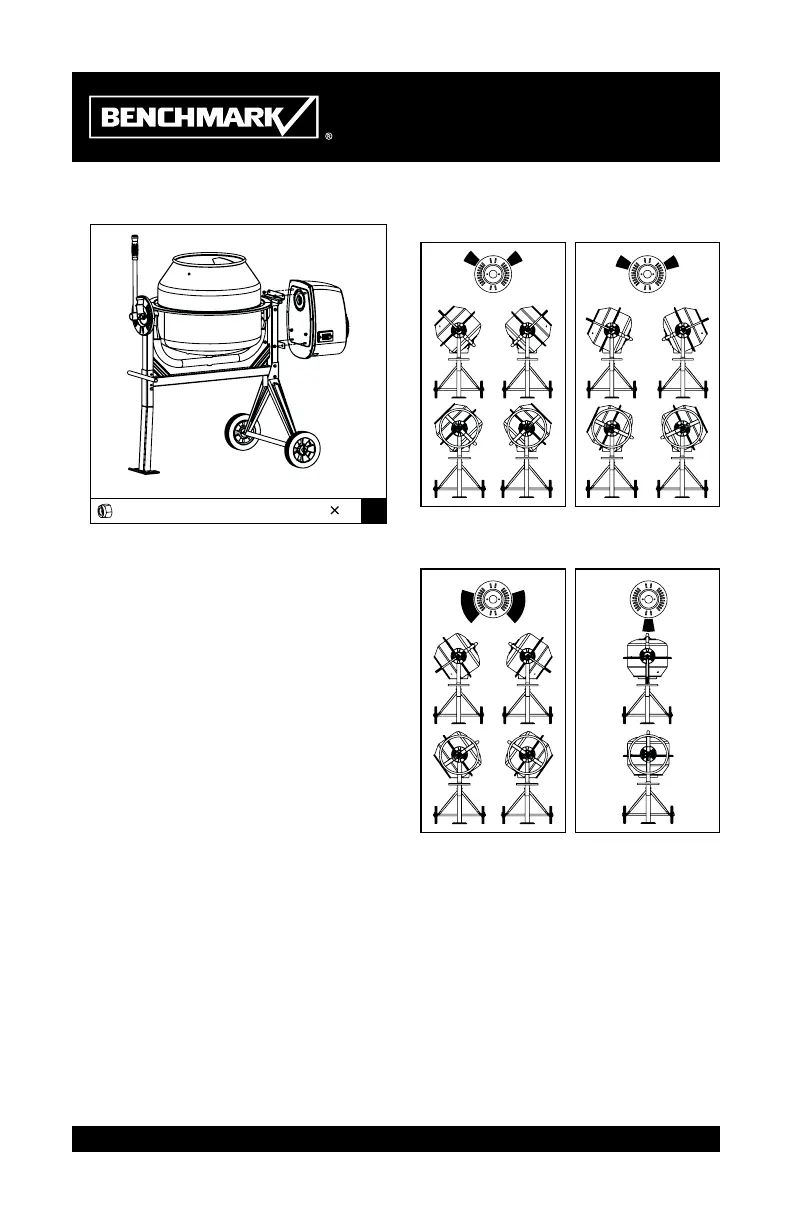

DRUM TILTING
The spring-loaded tipping bar with
locking lugs provides an easy posi-
tive control of the drum which can be
locked in the mix, discharge and stored
position.
The drum is locked in position by lugs
on the self-locating tipping bar/wheel
which engage into the locking plate on
the mixer frame. To tilt the drum, with-
drawn the tipping bar to dis-engage
the locking lugs. This then allows the
tipping bar and drum to be turned in
the same direction.
To retain the drum in position, align-
ing the lugs with the slots, release the
tipping barl a little while retaining the
drum. Rotate the tipping bar until the
locking lugs engage into the locking
plate on the mixer frame.
THE TRANSMISSION CASE LOADING/MIXING POSITION
For Mortar For Concrete
EMPTYING
POSITION
STORAGE
POSITION
I
4
M8
