5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2007

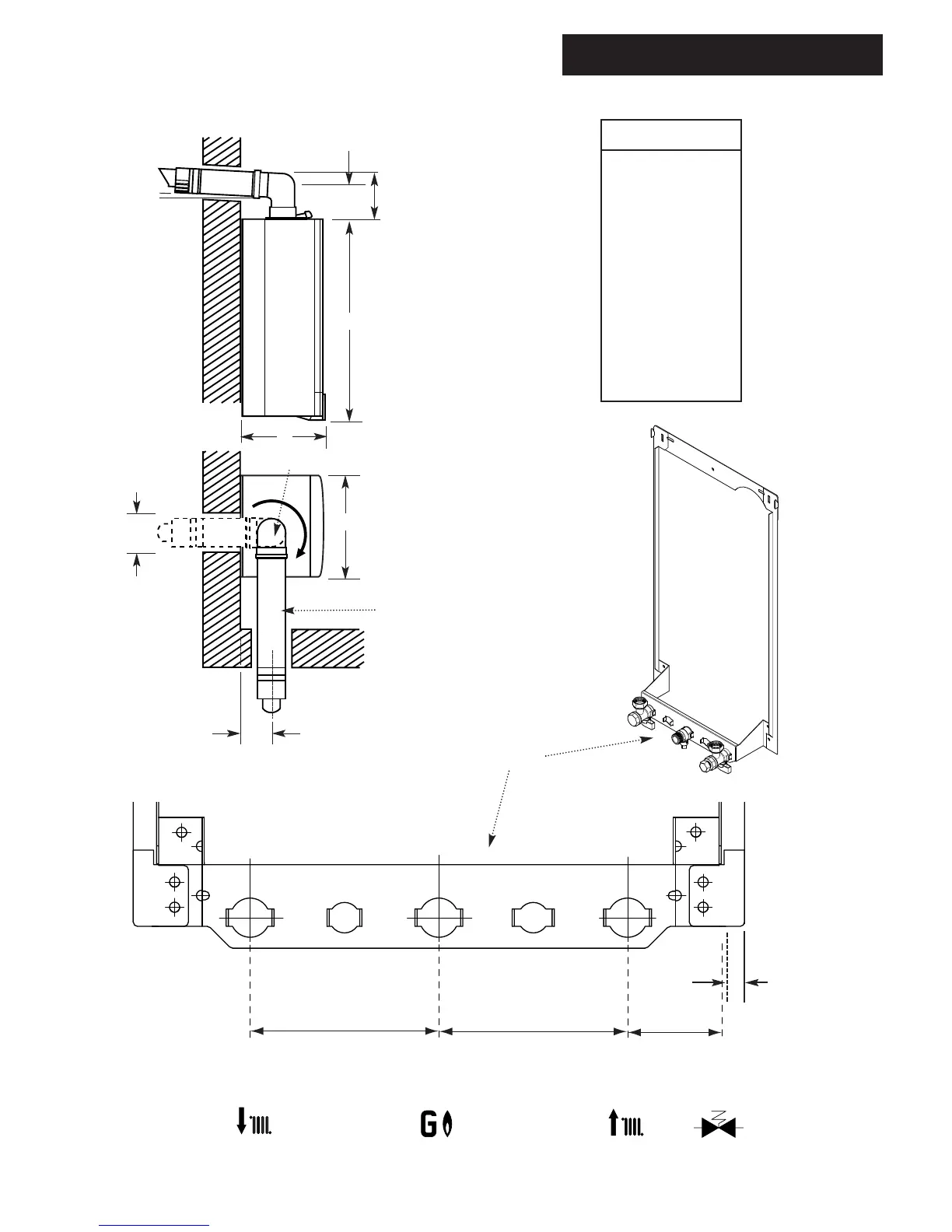

Dimensions
A 780mm
B 345mm
C 450mm
D 107mm Ø Min.
E 185mm
F 190mm
G 131mm
Heating
Return
(22mm)
Heating
Flow
(22mm)
Pressure Relief
Valve
(15mm)
Gas
Inlet
(22mm)
130 mm
130 mm
65 mm
Tap Rail
360° Orientation
Tube Ø 100mm
D
C
B
A
E
G
F
At Least 1.5°
28mm
Condensate
Drain
