Troubleshooting Diagnostic Trouble Codes: Power Supply
6 Power Supply
1st. Blink
Code
Location
2nd. Diagnostic
Blink Trouble Code
Code Description
1 Battery Voltage
Too Low
2 Battery Voltage
Too High
3 Battery Voltage
Too Low
During ABS
4 Battery Voltage
Open Circuit
5 Ignition Voltage
Too Low
6 Ignition Voltage
Too High
7 Ignition Voltage Too
Low During ABS
8 Input Voltage Has
Excessive Noise
(Temporary)
9 Input Voltage Has
Excessive Noise
Measure battery voltage under load. Check vehicle battery and associated components.
Check for damaged wiring. Check for damaged or corroded connectors and connections.
Measure battery voltage under load. Ensure that battery voltage is correct for the model of
ECU. Check vehicle battery and associated components. Check for damaged wiring. Check
for damaged or corroded connectors and connections.
Measure battery voltage under load. Check vehicle battery and associated components.
Check for damaged wiring. Check for damaged or corroded connectors and connections.
Measure battery voltage under load. Check condition of fuse. Check vehicle battery and
associated components. Check for damaged wiring. Check for damaged or corroded
connectors and connections.
Measure ignition voltage under load. Check vehicle battery and associated components.
Check for damaged wiring. Check for damaged or corroded connectors and connections.
Check condition of fuse.
Measure ignition voltage. Ensure that ignition voltage is correct for the model of ECU. Check
vehicle battery and associated components. Check for damaged wiring. Check for damaged
or corroded connectors and connections.
Measure ignition voltage under load. Check vehicle battery and associated components.
Check for damaged wiring. Check for damaged or corroded connectors and connections.
Check alternator output for excessive noise. Check for other devices causing excessive
noise.
Check alternator output for excessive noise. Check for other devices causing excessive
noise.
Repair Information
Power Supply Tests:
1. Take all measurements at ECU harness connector.
2. Place a load (e.g. an 1157 stop lamp) across battery
or ignition and ground connection, measure ignition
and battery voltage with the load. Ignition to Ground
should measure between 9 to 17 VDC. Battery to
Ground should also measure between 9 to 17 VDC.
Connector Pin Power Supply Test
X1 1 Ground
18 Way 3 Ignition
16 Battery

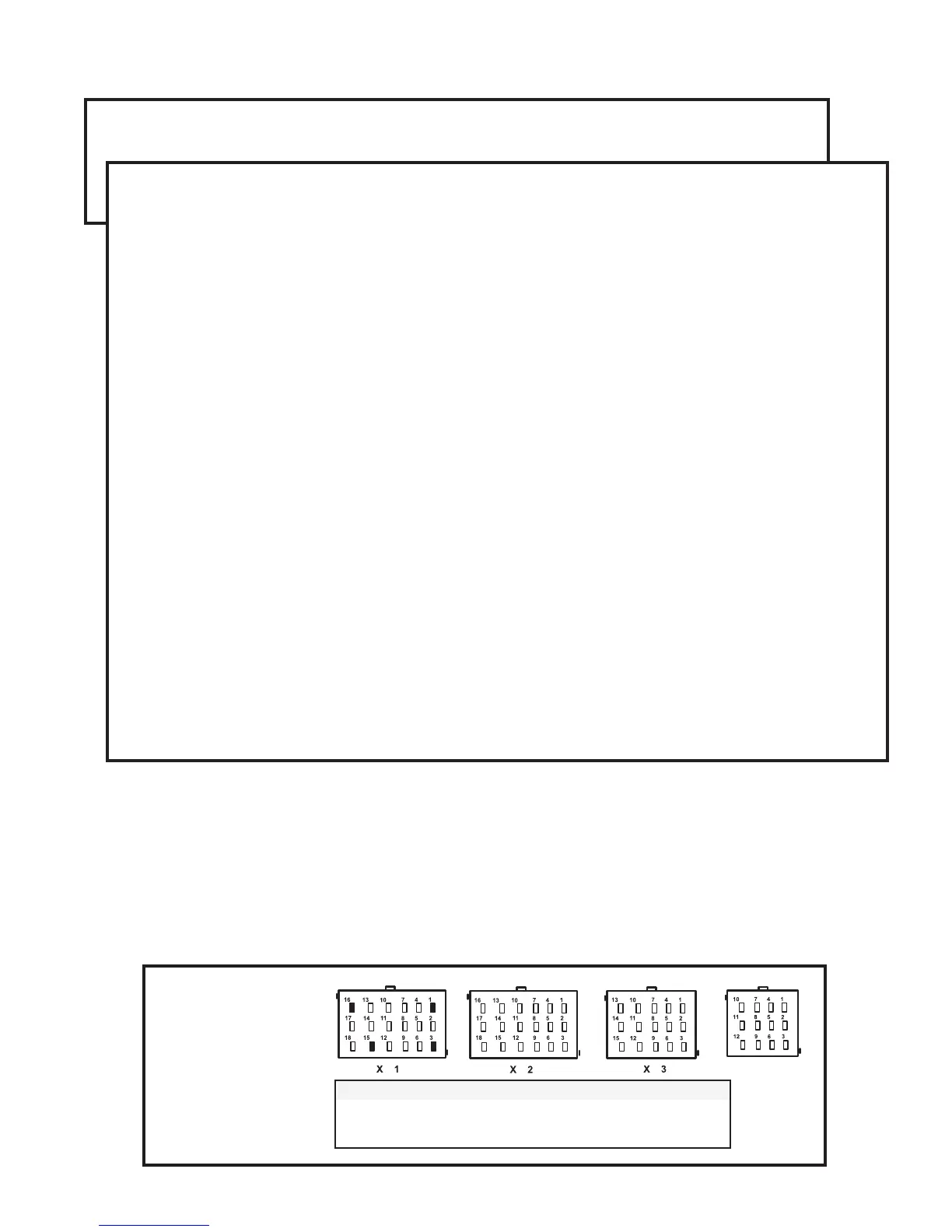

Cab-mount ECU:
Looking into wire
harness connector
X 4
3. Check for damaged wiring, damaged or corroded
connectors and connections.
4. Check condition of vehicle battery and associated
components, ground connection good and tight.
5. Check alternator output for excessive noise.

Questions and Answers:
