BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS User Manual

30
Premium Cab X2 Connector Pin Assignments
Pin Designation Pin Designation Pin Designation
1 PMV SA Left HLD 7 PMV SA Right REL 13 PMV DA Right REL
2 PMV SA Left REL 8 WSS SA Left (-) 14 WSS SA Right (-)
3 PMV SA Left CMN 9 PMV DA Right CMN 15 WSS DA Left (+)
4 PMV SA Right HLD 10 PMV DA Right HLD 16 PMV DA Left HLD
5 WSS SA Left (+) 11 WSS SA Right (+) 17 PMV DA Left REL
6 PMV SA Right CMN 12 PMV DA Left CMN 18 WSS DA Left (-)
Premium Cab X1 Connector Pin Assignments
Pin Designation Pin Designation Pin Designation
1 Ground 7 J1939 Low 13 J1587 (B)
2 Trailer ABS WL 8 J1939 High 14 J1587 (A)
3 Ignition 9 SLS 15 ABS WL Interlock
4 TCV CMN 10 WSS DA Right (+) 16 Battery
5 TCV 11 WSS DA Right (-) 17 Retarder
6 ATC Lamp/ATC ORS 12 ABS WL Ground 18 ABS WL
Premium Cab X3 Connector Pin Assignments
Pin Designation Pin Designation Pin Designation
1 ABS ORS 6 PMV AA Left CMN 11 WSS AA Left (+)
2 Diff. Lock SOL
1
7 PMV AA Left REL 12 WSS AA Right (+)
3 Diff. Lock SOL CMN
1
8 Reserved 13 PMV AA Right REL
4 PMV AA Left HLD 9 PMV AA Right CMN 14 WSS AA Left (-)
5 Reserved 10 PMV AA Right HLD 15 WSS AA Right (-)
1
AWD vehicles only. (AWD Transfer Case)
Premium cab models utilize three AMP connectors
for wire harness connections.
Connector Designation Number of Contacts AMP Part Number
X1 17 1718091-1
X2 18 8-968974-1
X3 15 8-968973-1

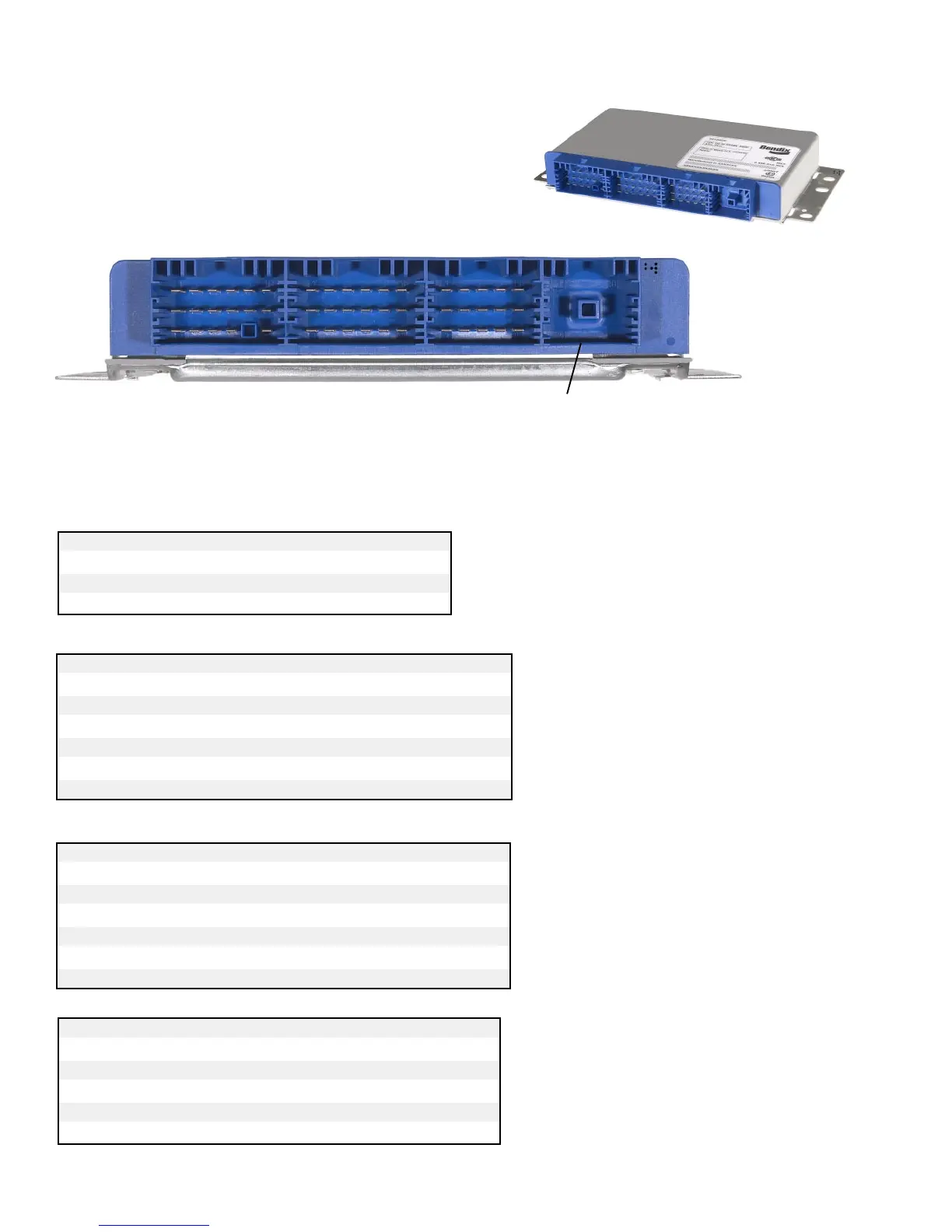

Premium Cab Model EC-60
™
Controller
EC-60
™
Controller Wire Harness Connector
Part Numbers and Pin Assignments:
PREMIUM CAB
Connector
not used
X1 X2 X3

BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS Specifications

General

Function	Anti-lock Braking System (ABS) and Automatic Traction Control (ATC)
Operating Temperature	-40°C to +85°C
Type	ABS-ATC Controller
Variants	Standard, Premium
Inputs	Wheel speed sensors
Supply Voltage	12V / 24V DC
