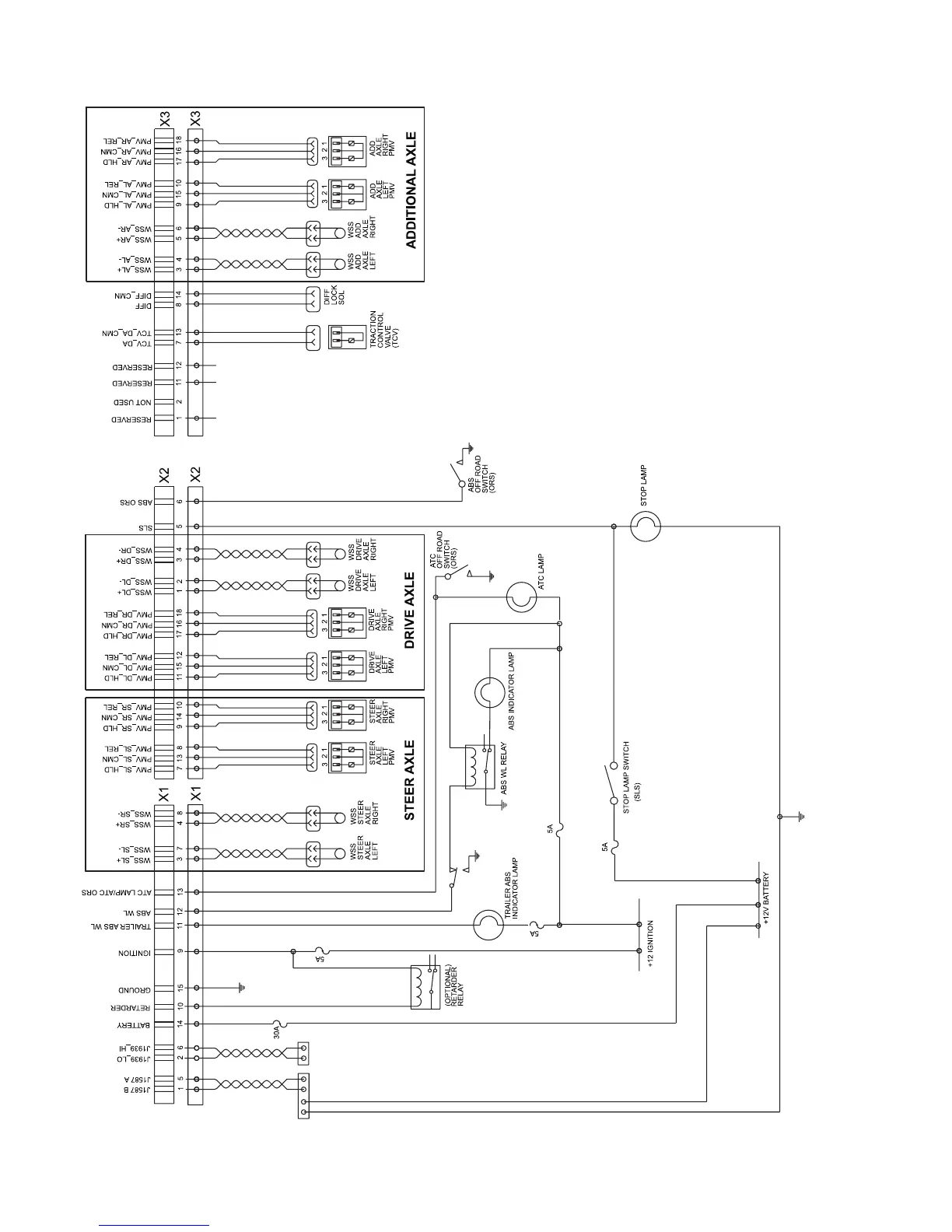

FIGURE 17 - PREMIUM FRAME WIRING SCHEMATIC (6S/6M)
Troubleshooting: Premium Frame Wiring Schematic (6S/6M)
* Pressure Modulator Valves
Connector Twist-Lock Packard
Common (CMN) Pin 2 Pin B
Hold (HLD) Pin 3 Pin C
Release (REL) Pin 1 Pin A
******
