6
ABS/TRACTION
WARNING
INDICATORS
DIAGNOSTIC
CONNECTION
ENGINE ECU
BRAKE
CHAMBER
AIR DRYER
SUPPLY
RESERVOIR
ANTI-COMPOUNDING
SPRING BRAKE
RELAY VALVE
FRONT AXLE
SERVICE
RESERVOIR
REAR AXLE
SERVICE
RESERVOIR
R-12DC
™
RELAY
VALVE
COMPRESSOR

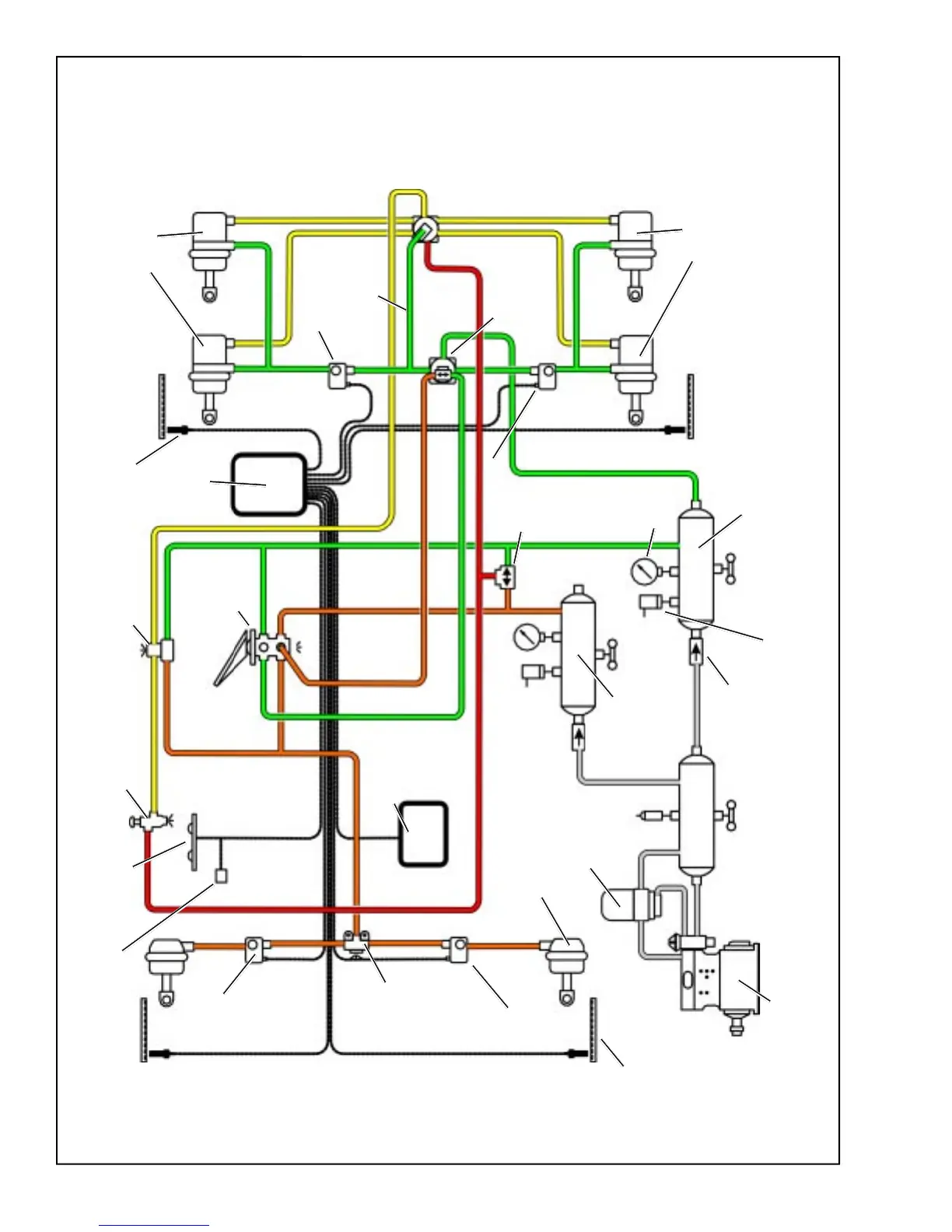

FIGURE 8 - TYPICAL PIPING SCHEMATIC
DC-4
™
DOUBLE
CHECK
VALVE
ANTI-COMPOUND
LINE
GAUGE
SR-1
™
SPRING
BRAKE VALVE
SERVICE
BRAKE
VALVE
SPRING
BRAKES
PARKING
VALVE
ABS
ECU
MODULATOR
LOW PRESSURE
WARNING
INDICATOR
SINGLE
CHECK
VALVE
MODULATOR
WHEEL SPEED
SENSOR
TONE RING
QUICK
RELEASE
VALVE
TONE RING
WHEEL SPEED
SENSOR
MODULATOR
MODULATOR
WHEEL SPEED
SENSOR
TONE RING
SPRING
BRAKES
