15

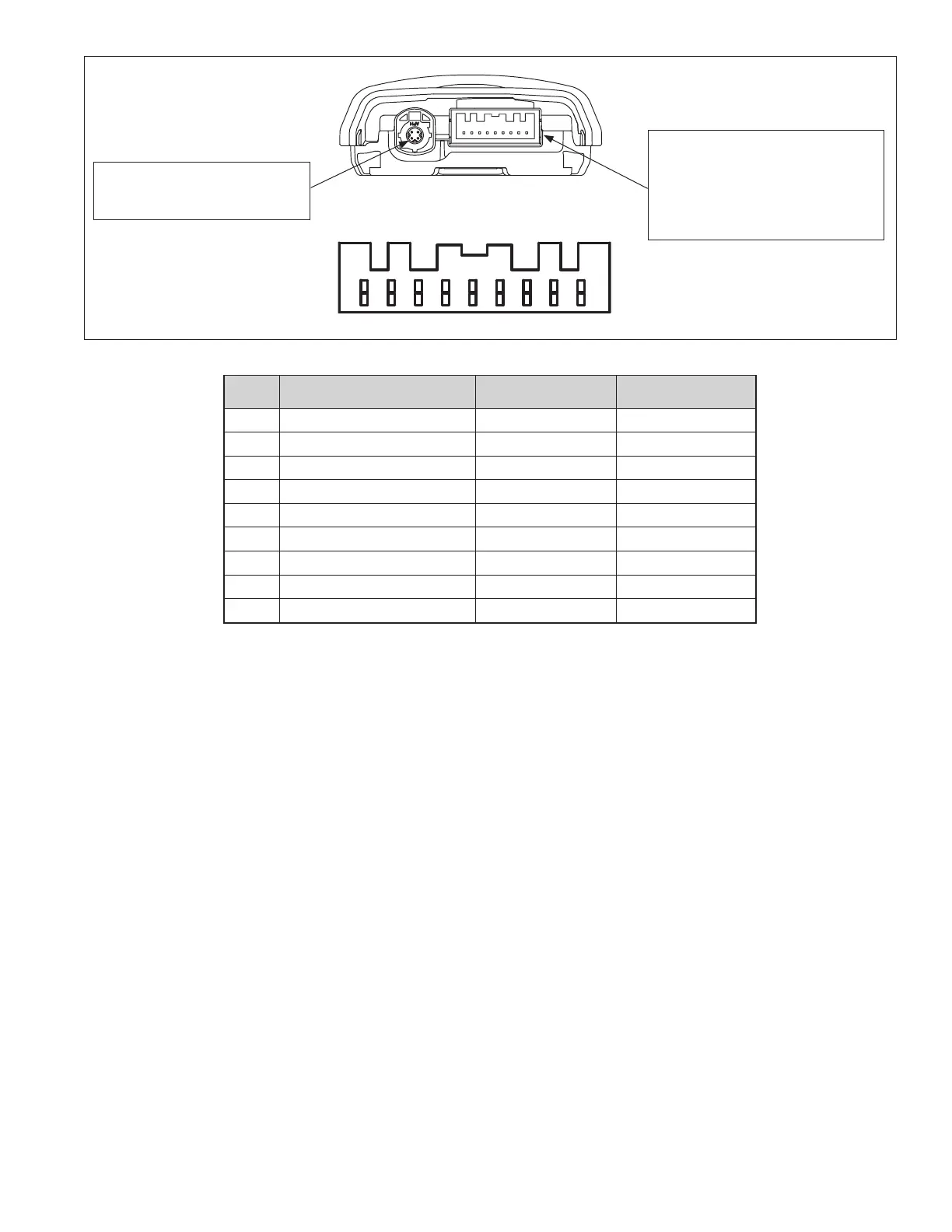

System Schematic Key (See page ??)
1
Pins Color Key Tyco P/N
25 Black - 1718484-1
2
AMP MCP 1.5K, Contact
TE Internal Number:1241374-1
TE Internal Number:1355036
3
AMP MCP 1.5K Receptacle Insert
Pins Color Key Tyco P/N
18 Black - 1718489-1
4
AMP MCP 2.8Receptacle Insert
Pins Color Key Tyco P/N
7 Natural - 1718488-1
5
Pins Only
TE P/N: 1534097-1 TE P/N: 1534101-1
6
TE P/N: 5-963715-5
7
Nylon Sheath from E.G. Manufacturer
8
Heat Shrink E.G. from 3M
9
120 Ohm 5% Resistor, Tinned, and Twisted with Line and
Soldered, Shrink Tube Covered - Qty 1
10
Recommend 5A Fuse
11
Free Ended Leads, User Suit to Application
12
TE Pins P/N: 2-964298-1
13
Delphi Connector P/N: 15498443
14
Molex
®
Pins P/N: 330122003
15
Molex Connector P/N: 31404-6213
16
Twisted Pair CAN (Lines should have no fewer than 1 turn
per 25 mm)
17
All Tolerances +/- 5 mm (unless otherwise specified)
18
All Crimp Terminals to be Fastened Per the Connector
Manufacturer Specifications (unless otherwise specified)
19
TE P/N: MS3102R16S-1P, TE P/N: MS3106E16S-1S,
TE P/N: 97-79-513-8 (boot on both male and female sides)
SYSTEM SCHEMATIC KEY
