6
Rev 6 Jun/2004
KMD 550/850 Pilot's Guide
NOTE:
IF THE FAULT INDICATOR IS LIT, ALL DISPLAYED DATA SHOULD
BE TREATED AS SUSPECT AND CROSS-CHECKED FOR ACCU-
RACY BEFORE USE.

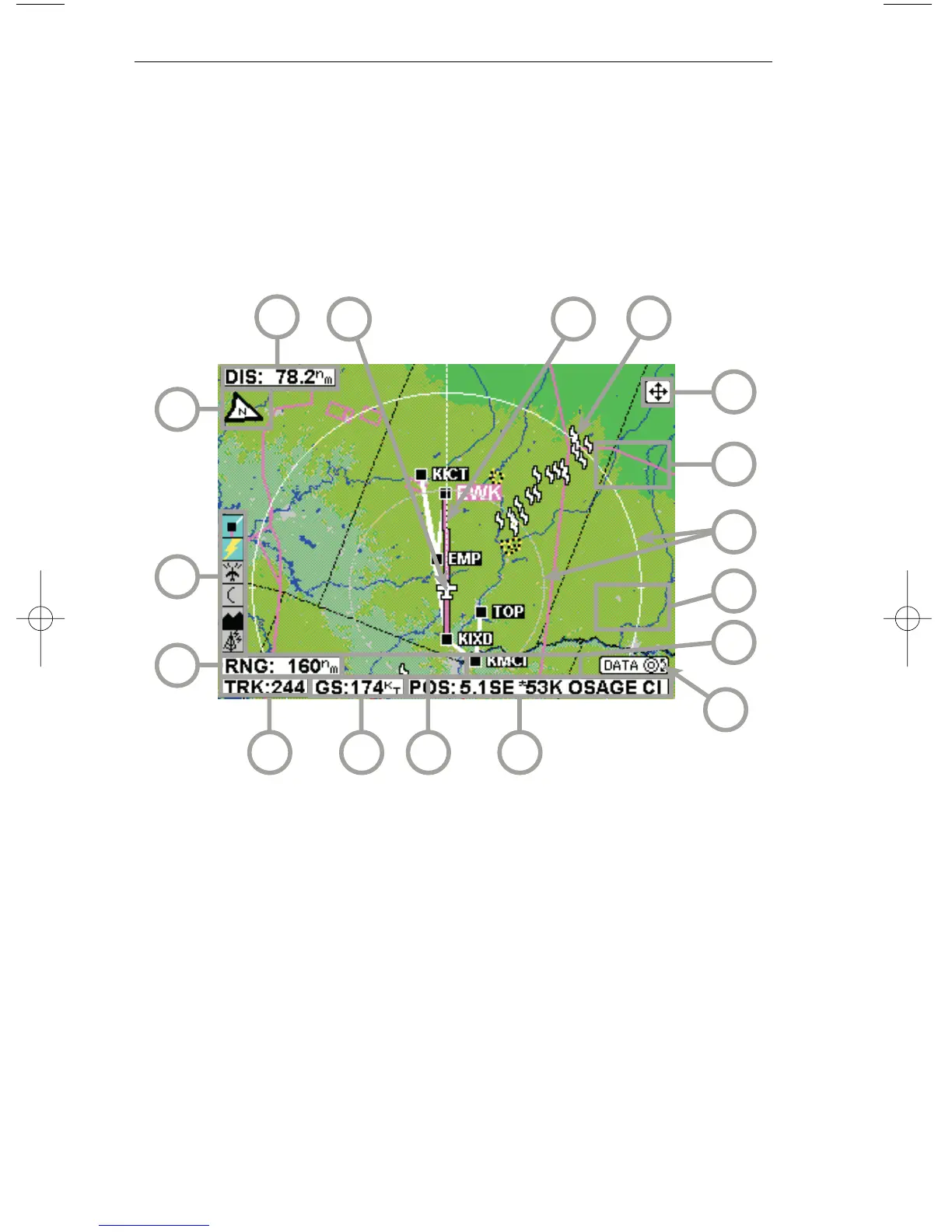

The following illustration describes the data that appears on the Map
Display Page.
General Information
1 Display Range - RNG:####nm
2 Current Track - TRK:###
3 Current Ground Speed - GS:###kt
4 Distance to Pointer - PDIS: ###.#nm
5 Position Readout - Current aircraft position
6 Control Knob Label - Indicates Control Knob is active for data entry
7 Bearing to Pointer - PBRG: ###
8 MORE INFO Soft Label
9 Range Rings - Outer ring radius is selected range, inner ring radius is
one half the selected range
10 RESET STICK Soft Label
11 Joystick Label
12 Lightning Overlay
13 GPS Flight Plan Overlay - Current GPS flight plan
14 Aircraft Symbol - Indicates present position. Stylized airplane when
heading input is present, a plus symbol with no heading.
15 Distance to Waypoint - DIS:###.#nm
16 North Pointer
17 Available Functions - Displays icons representing data available (black)
and displayed (color)
2 5
17
16
9
3
1
4
7
8
10
11
14 13
12
15
6
KMD 550-850 PG R7 9/15/05 2:00 PM Page 6
