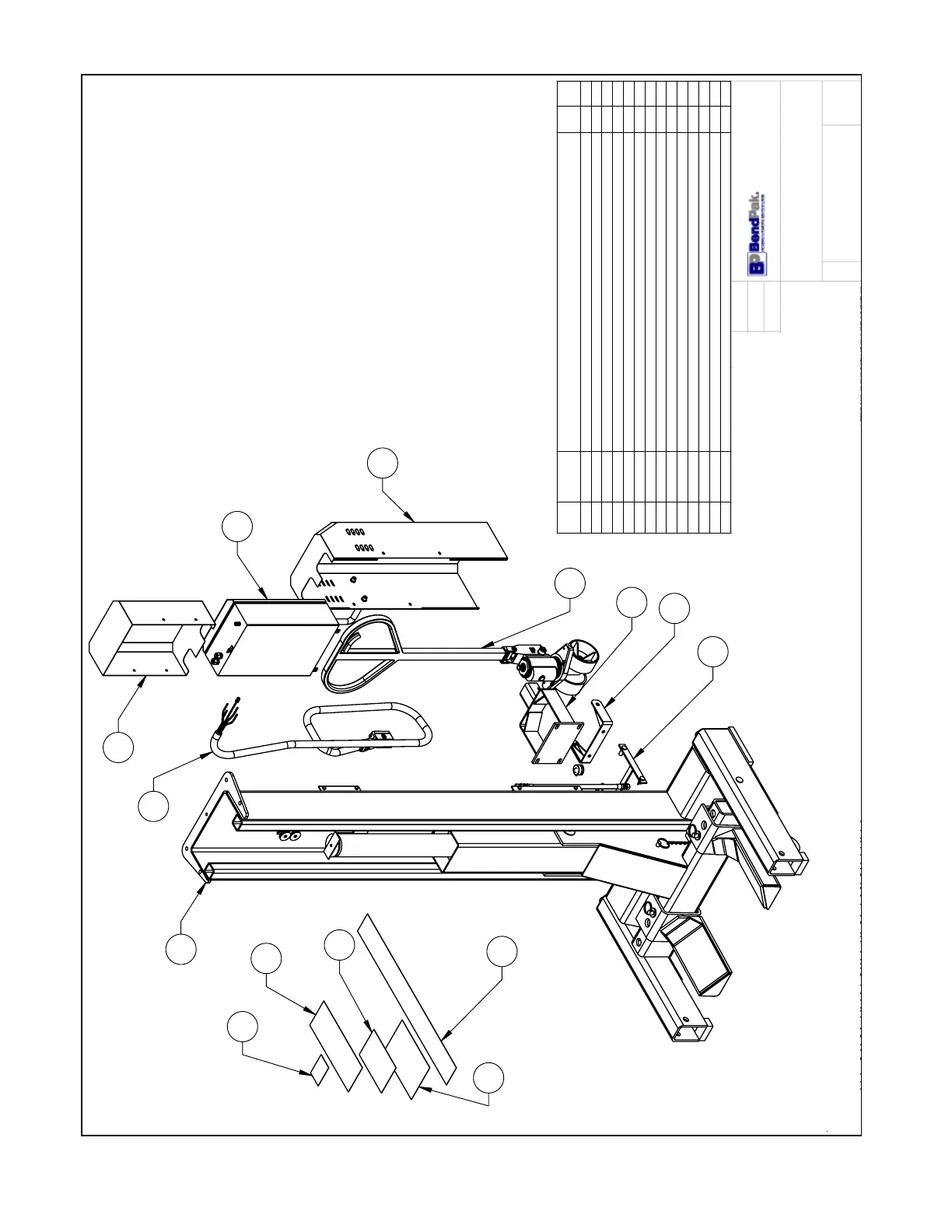

DIMENSIONS ARE IN MM
☺
2
1
3
4
5
6
7
8
9
13
10
12
11
14
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5245121
PCL-18B COLUMN SUPERSTRUCTURE
1
R
2 5250350
PCL-18B PARTS BOX, SECONDARY COLUMN
1
G
3 5600449
PCL-18B DISPLACEMENT SENSOR COVER WELDMENT
1
D
4 5620113
PCL-18B TOW ANCHOR WELDMENT
1
D
5 5600032
PCL-18B TOW CART BRACKET WELDMENT
1
F
6 5215047
PCL-18B MOTOR COVER ASSEMBLY
1
F
7 5215401
PCL-18B CONTROL BOX ASSEMBLY, POST D
1
G
8 5215670
PULL HANDLE ASSEMBLY
1
--
9 5520016
PCL-18B 10/4 SOOW/CAT5E COILD CUSTOM CABLE ASSY.
1
A
10 5905580
PCL-18 ALI SAFETY LABEL KIT
1
--
11 5905615
PCL-18 WARNING LABEL
1
--
12 5905620
PCL-18 INSTRUCTIONS LABEL
1
--
13 5905311
BENDPAK LABEL; 4 x 38" WHITE INK
1
--
14 5905675
MAX CAP NRTL DANGER 18K
1
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
K
REMOVED SHEET 3, UBDATED BOM REVISION
04/21/2015
MR
00702
L
UPDATED TITLE TO REFLECT WHERE USED,
ADDED 5520016, UPDATED BOM REVISIONS
08/24/2015
JM
00720
M
ADDED 5905580, 5905615, 5905620, 5905311,
AND 5905675, UPDATED BOM REVISIONS
11/02/2015
TM
00737
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
M
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5260333
PCL-18B PRODUCTION
COLUMN, POST D
09/30/2011
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
CA
11/20/2015
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ALL LABELS TO BE APPLIED AFTER PAINTING.
2.
SEE ATTACHED LABEL PLACEMENT SHEET
