Chapter 2
24
BP
C
-2010-NW
C
User’s Manual

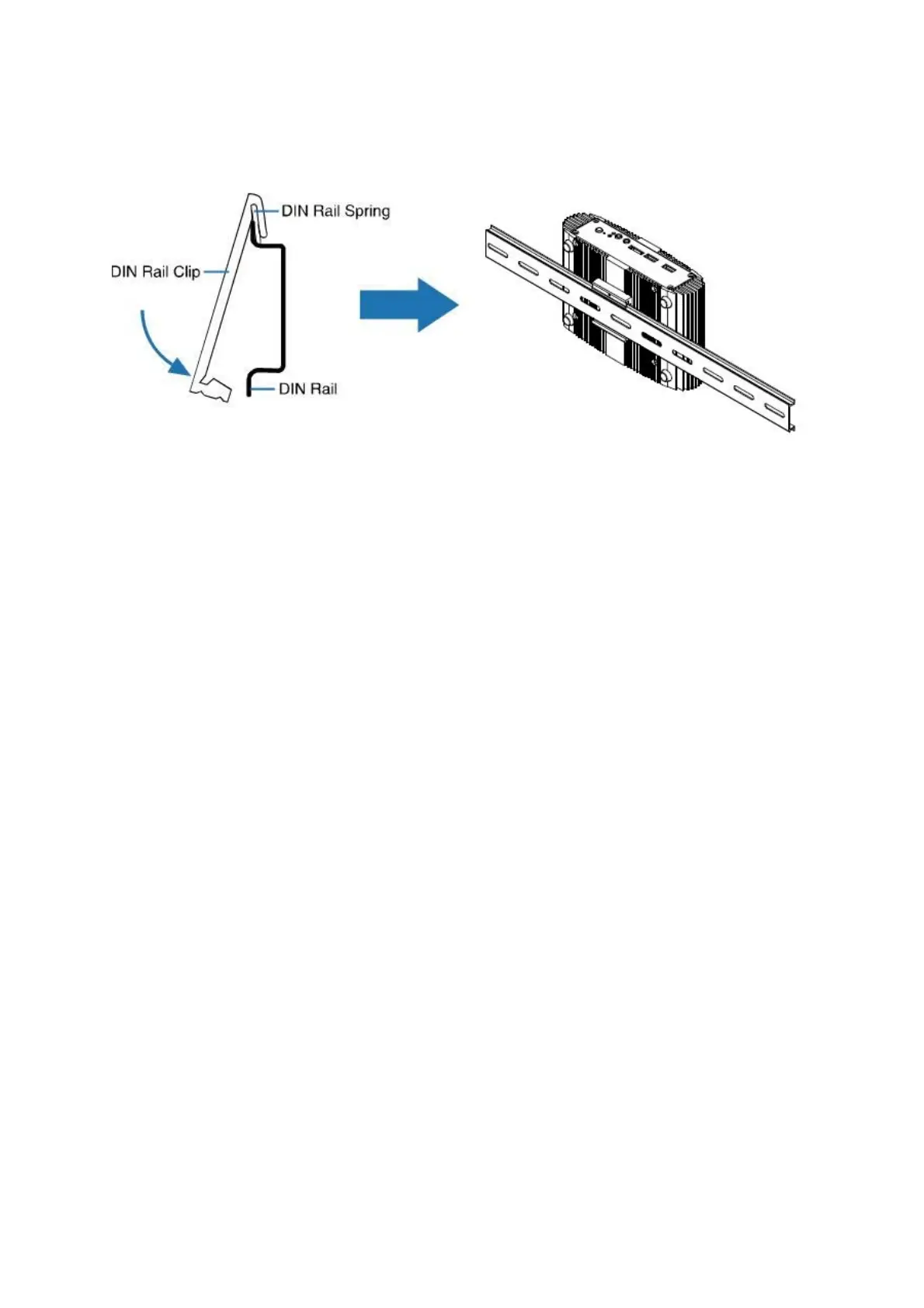

2. Clip the system onto the DIN rail as shown below.
Figure 11 DIN-Rail mounting (2)
