Model Type:
Beneteau 331 U.S.A.
Sail Type:
Roller Furling Mainsail Series 2000
“P” Dim:
10400
“E” Dim:
4280
Area:
20.92sqmt
Rake:
280
Finished Dimensions
Luff:
10296
Leech:
10761
Foot:
4250
Finish Details
Material Type:
7.08 Challenge
Tack Detail:
Single ply 25mm webbing loop
Head Detail:
Single ply 25mm webbing loop
Clew Slug/Car:
3259 Z-spar 60mm clew block
Clew Detail:
Pg 38 safety clew ring with webbing
Luff tape:
NPS#6 Foil Tape
Leech/foot:
25mm double tabling
Tell Tale:
Yes, 3 at leech
Trim stripes:
Yes, 3/8" by 2 in green
Leech Cleat:
241 Alum cleat
Bag Type:
Drawstring type “B”
Seam:
V-92 Blue- 2 rows 3-step
U.V. Cover:
Yes, clew only, both sides. White UV
Mast Section: Z-Spar : Z500E Boom Section Z-Spar: Z360E
Tack and Clew Cutback Details:
A: B: C: D: E: F: G:
Drawing Information
Drawn By:
Bob
Date:
11-10-99
Revision # 08071331-r002.DOC
Additional Notes:
Finished Dimensions include head and tack webbs.
"A"
Boom
"E"
"C"
"B"
"D"
"F"
"G "
Reef eye
TackGat e
Tack/Clew Detail Black

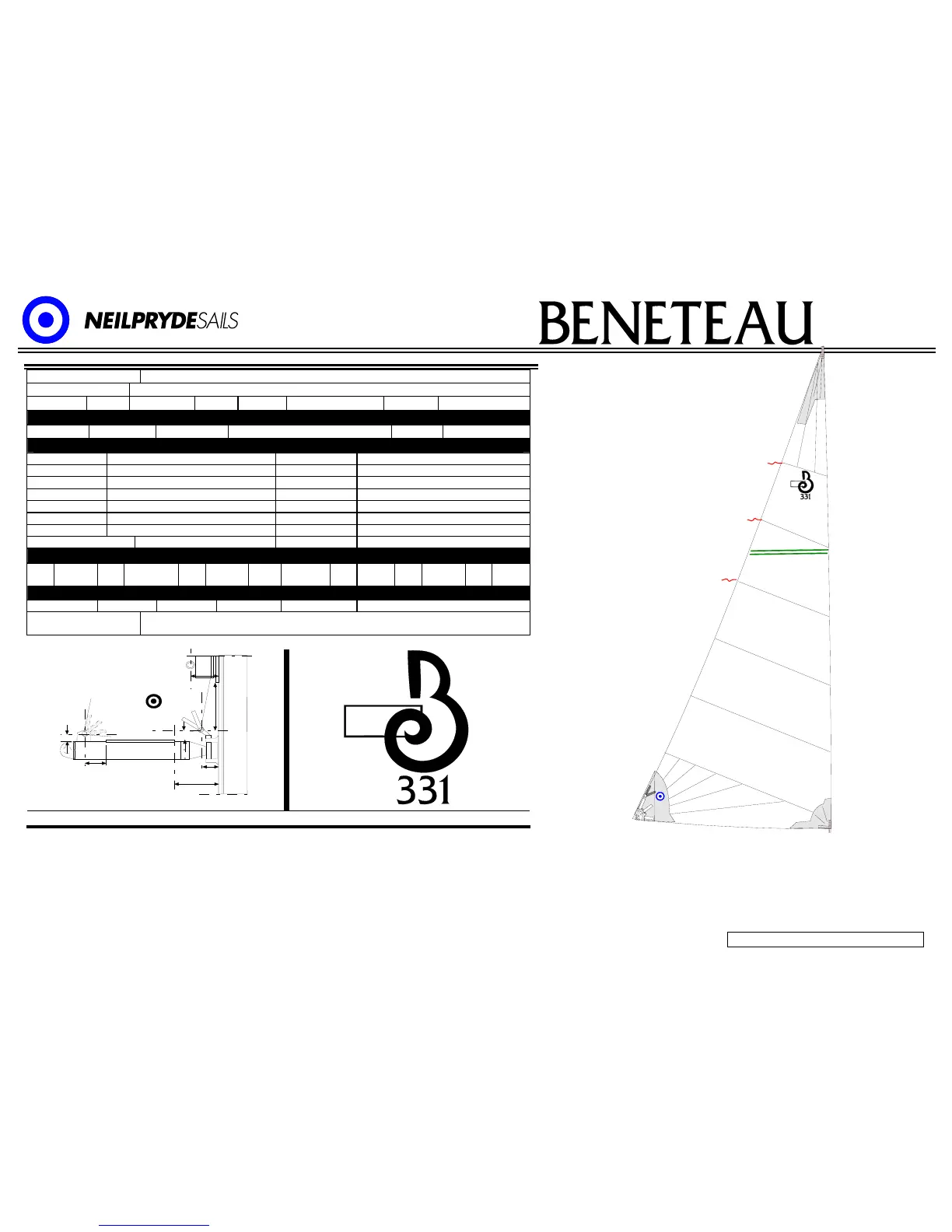

Mainsail Specification and Technical Worksheet
Beneteau Part #:
08071331
