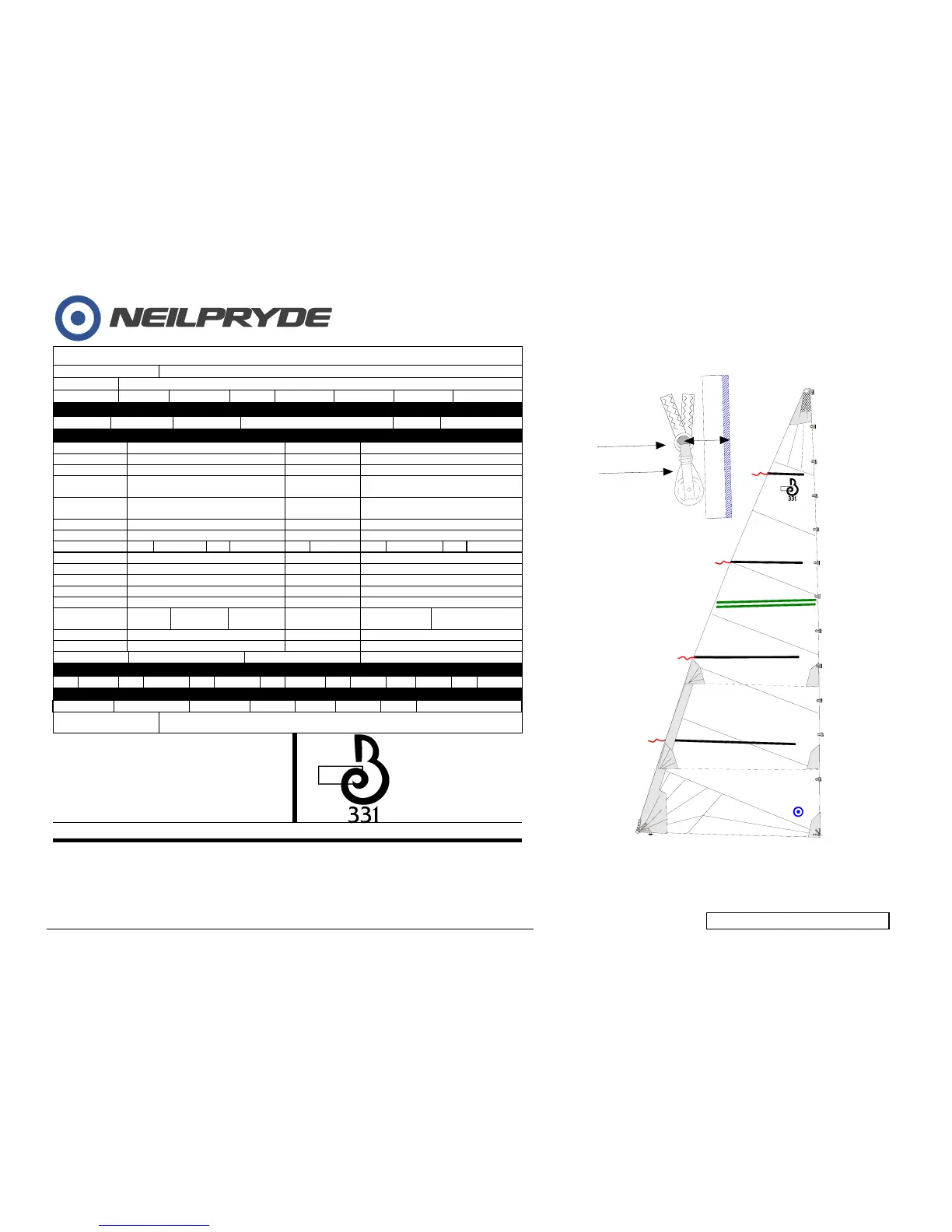

Mainsail Specification and Technical Worksheet
Model Type:
Oceanis 331 U.S.A.
Sail Type:
Classic Mainsail Series 2000
“P” Dim:
10540
“E” Dim:
4350
Rake:
280
Area:
25.1 sqmt
Finished Dimensions
Luff:
10390
Leech:
11130
Foot:
4330
Finish Details
Material Type: 7.3 Challenge Dacron Tack Detail: 40mm SS Ring with leather
Head Detail: 50mm S.S Ring with leather Clew Slug/Car: SLD 151
Head Slide: Metal Seldon 661B Clew Detail: 50mm SS ring with leather
Clew Reef 1: 34118 Wichard block on starboard
Side led through PG 23 ring
Tack Reef 1: 33118 Wichard block on starboard
Side led through PG 20 ring
Clew Reef 2: 34118 Wichard block on starboard
Side led through PG 23 ring
Tack Reef 2: 34118 Wichard blocs on starboard
Side led through PG 20 ring
Logos 2 bullseyes
Battens:
4 x 30mm flat
Ben. Part#:
0807-0026
Bat. Lengths: #1 770 #2 1500 #3 2200 #4 3000 #5 n.a.
Trim stripes:
2 x 3/8" green stripes
Tell Tale:
4: 1 at each batten
Leech Cleat: 241 Alum. With snubbing eyes Luff eyes:
13-#3 eyelets
Luff Tape: 4" with 8mm rope Insignia: Yes
Leech Line: 4mm Dacron line Sail Ties: Yes, 3 x 2.4 mt ties
Reef Cleat:
2 x 241 Alum.
Bag Type:
Drawstring type “B”
Reef Hts. % Reef 1 14.5%
Area:
19.28
Reef 2 33.5%
Area:
12.56
Luff Slides: 15- 661A Seldon slides Foot Tape: 2" tape
Reefing slots:
None
Reef eyes:
7 # 3 eyelets
Mast Section:
Z-Spar: Z 501
Boom Section:
Z-Spar: Z 360
Tack and Clew Cutback Details:
A: 50 B: 000 C: 280 D: 000 E: 25 F: 280 G: 85
Drawing Information
Drawing
331-clm1
Drawn By:
Bob
Date:
6-6--01
Rev:
08071332-R001.doc
Additional Notes:
Production Model Classic Main
Rev 1: Reduces roach amount to help clear dual backstays
Tack/Clew Detail
Insignia Detail in Black
Beneteau Part #:
0807-1332
3
3
1
1
8
@
l
