Benewake(Beijing)Co., Ltd
CE30-D Product Manual - V04
Page
10

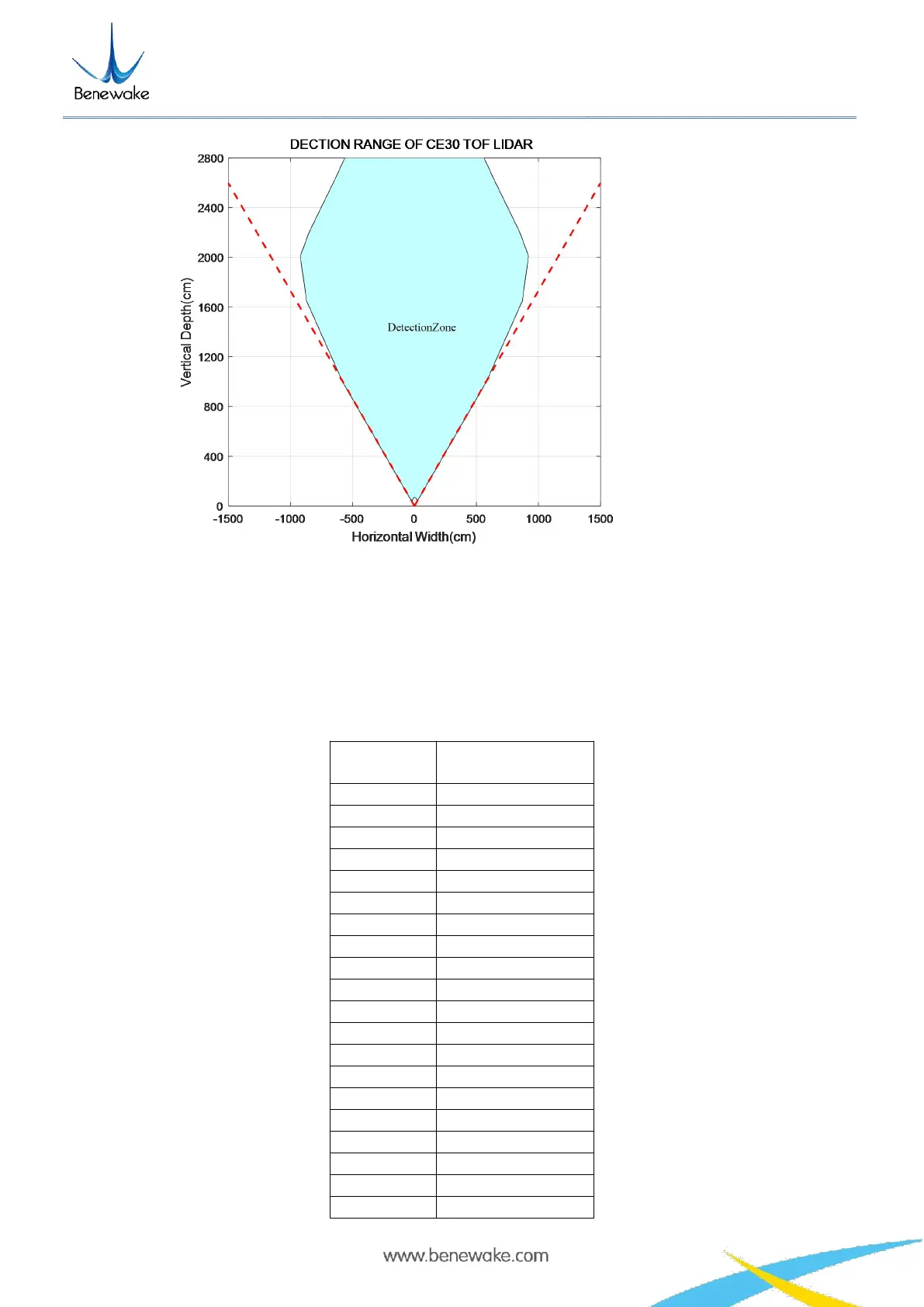

Figure 12 CE30-D's detecting area
7.2 Vertical Angle Resolution
CE30-D has 20 lines in vertical direction, and the vertical angle resolution is 0.2 degree, so that CE30-D has
more precise resolution capacity. The detection angle in vertical direction is presented in
Table 1
.
Table 1 Detecting angle in vertical direction
Vertical
Line
Vertical Angle
°
1
1.9
2
1.7
3
1.5
4
1.3
5
1.1
6
0.9
7
0.7
8
0.5
9
0.3
10
0.1
11
-0.1
12
-0.3
13
-0.5
14
-0.7
15
-0.9
16
-1.1
17
-1.3
18
-1.5
19
-1.7
20
-1.9
