SJ-PM-TF-Luna A03
Benewake (Beijing) Co. Ltd.
Page18
if there is any loose connection, and then plug the USB cable into your PC.
Open your Test software and check data output
Open the PC software and select “TF-Luna” and select automatically recognized occupied serial port (in
this case “ COM9”) as shown in Figure 6
Now click the “CONNECT” button, and a continuous images of the output data will be displayed in area
TIME LINE CHART” on the right if everything is connected successfully. The real-time data of the
Current measure distance (Dist), effective data points per second (Effective Points) and signal strength
(Strength) will be displayed in area “ REAL TIME DATA” below as well.

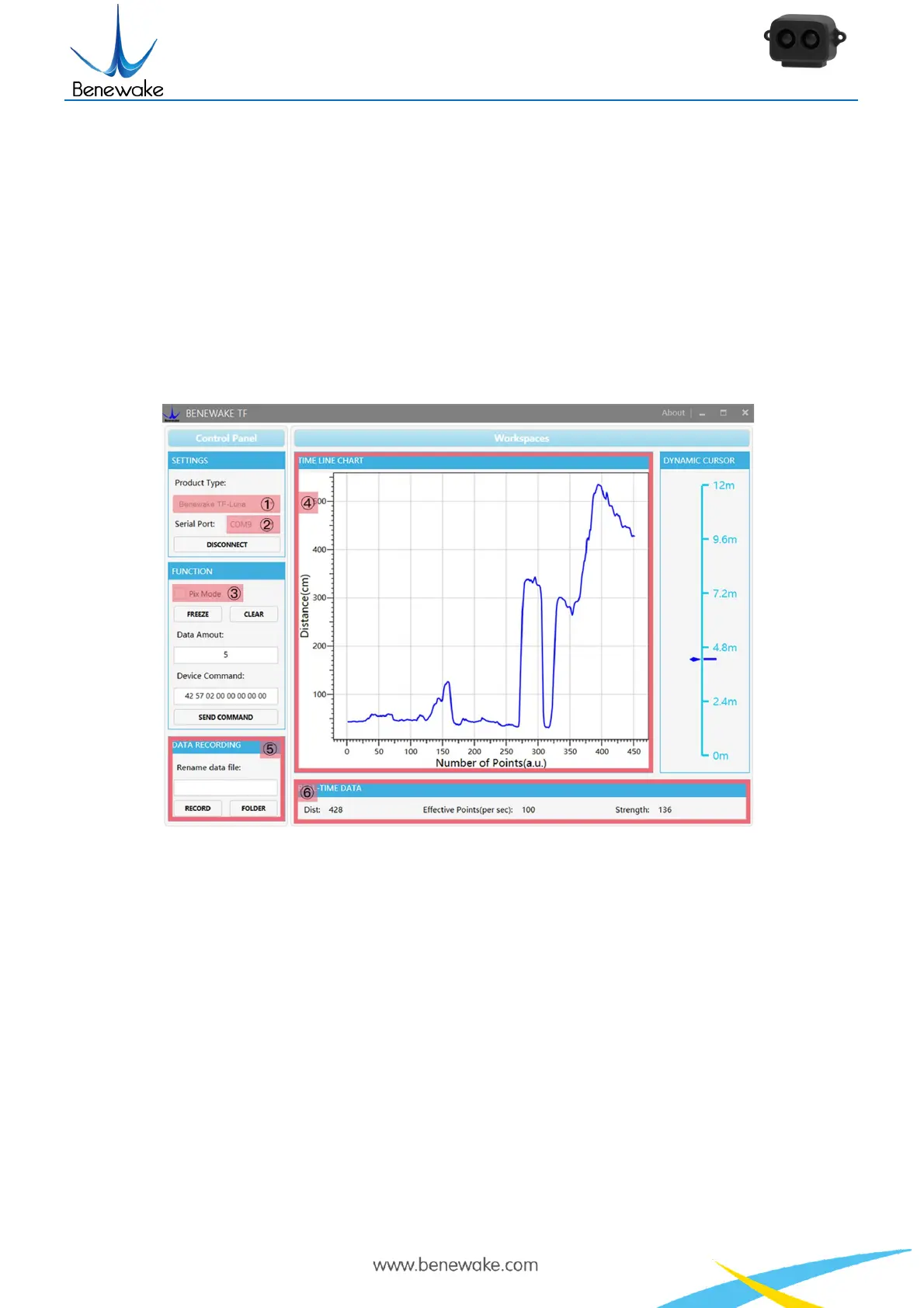

Figure 8: PC software Interface and Display
Notes:
a) If nothing is displayed in area “TIME LINE CHART”, please check the wire connection and
sequence. A red LED indicator inside the transmitting lens at front will light up when TF-Luna is
power-on.
b) Please select “Pix Mode” before switching TF-Luna’s outputs to Pixhawk format to avoid
abnormal data display in the “TIME LINE CHART” area. Note that slecting Pix Mode will
automatically set the unit of distance to meters.
c) Since TF-Luna does not pass unit information and the software always use centimeters as distance
unit, the distance unit displayed in the chart remains the same as centimeter even if TF-Luna
output in millimeter. For instance, suppose the actual measurement is one meter and the distance
value from TF-Luna is 1000 mm, then the value read by the PC software is 1000. Thus, the
