SJ-PM-TF-Luna A03
Benewake (Beijing) Co. Ltd.
Page10

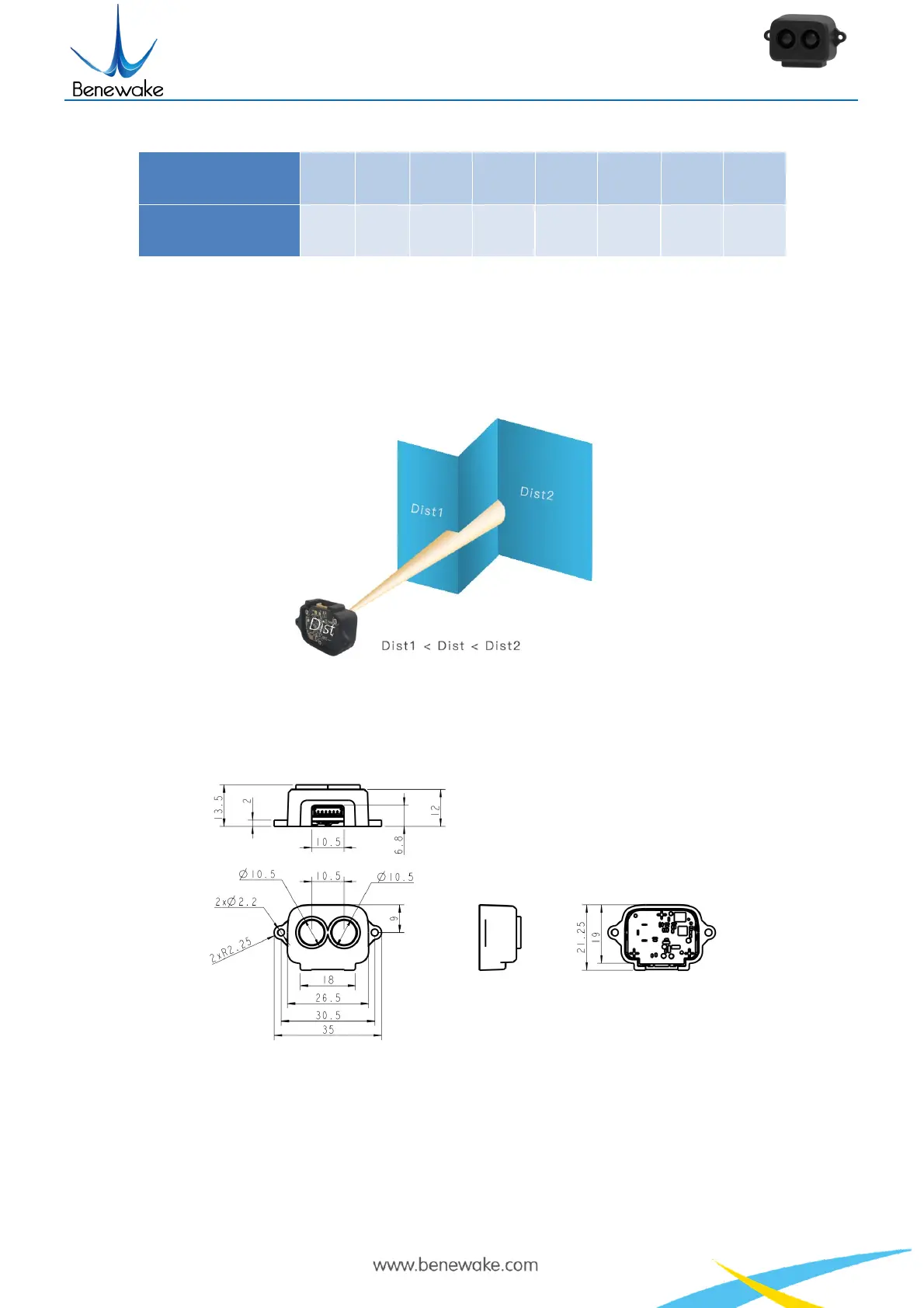

Table4 Distance and minimum diameter
Distance (D)
1m 2m 3m 4m 5m 6m 7m 8m
Minimum diameter (d)
3.5cm 7cm 10.5cm 14cm 17.5cm 21cm 24.5cm 28cm
If the light spot reaches two objects with different distances as Figure 2, the output distance value
will be any value between the two actual distances of the objects, which may cause error for high-accuracy
applications. Please try to avoid this situation for better accuracy and performance.
Figure 2 Detecting two objects at different location
3 Appearance and Structure
3.1 Appearance
Figure 3 TF-Luna appearance and size drawing
