BE/REC Receiver
Programmable two-channel receiver, to be combined with one or more “BE/PLAY” keypads.

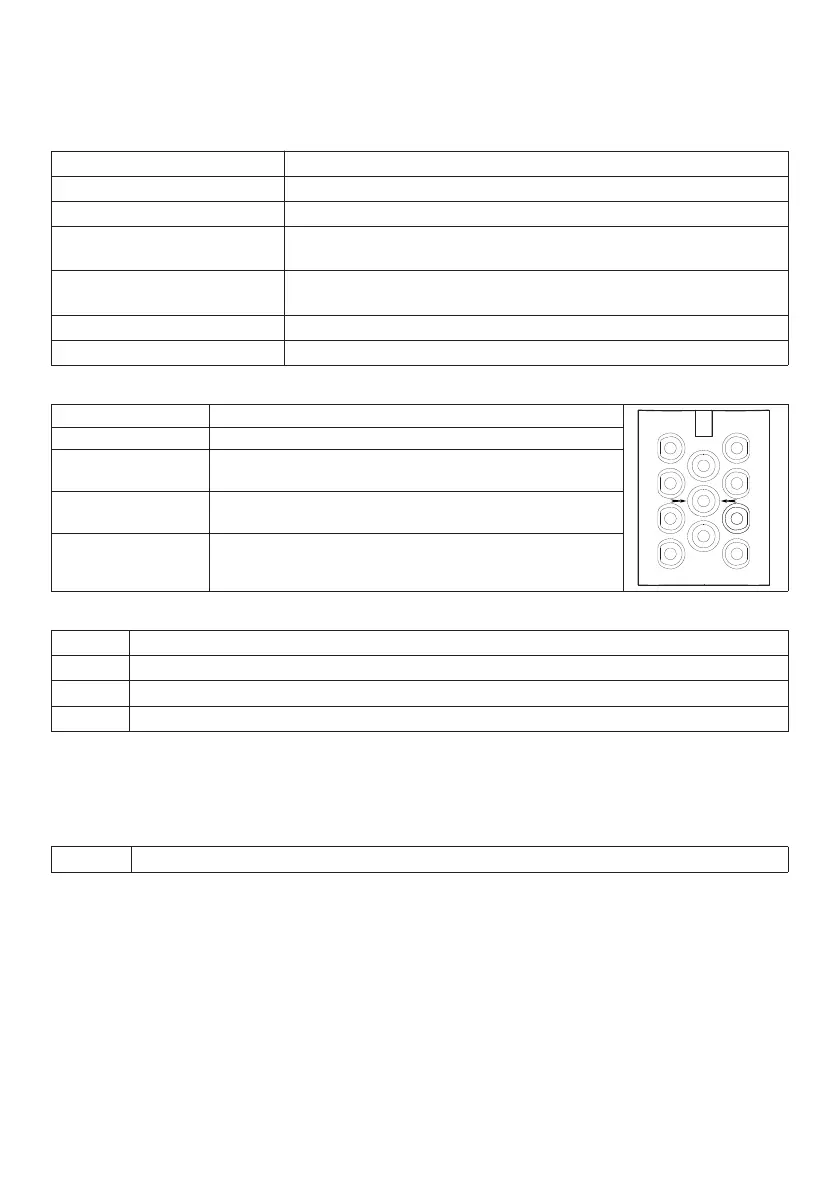

BE/REC Receiver Technical Characteristics
Power supply 24 Vac/Vdc
Outputs 2 channels max load 500mA-48Vac/dc.
No. connectable keypads 4 BE/PLAY keypads connectable to each receiver
Maximum distance between
BE/PLAY-BE/REC devices
40m using screened cable
Storable codes Up to 250 codes. Each code may be composed of a maximum of 9
gures
Degree of protection IP30
Working temperature from -20°C to +70°C
BE/PLAY Keypad Technical Characteristics
Number of leads 2










Keys 10 numerical keys 0-9 plus 1 activation key
Signals Rear-lit keypad for night use and acoustic warning
buzzer which may be disabled.
Degree of
protection
IP54
Working
temperature
from -20°C to +70°C
BE/REC Receiver Inputs/Outputs functions
1-2 Channel 1* output (500mA-48Vac/dc max)
3-4 Channel 2* output (500mA-48Vac/dc max)
5-6 Power supply input 24 Vac/Vdc (5-,6+)
7-8 Serial input for receiving code from the keypad(s) (7-,8+)
*In the factory conguration the outputs 1-2 present a normally open contact (N.O.). This may be changed
to a normally closed contact (N.C.) by following the indications given in the paragraph ”Changing the
output contact NO<>NC”.
BE/PLAY Keypad Inputs/Outputs functions
1-2 Serial output for transmitting code (1-,2+)
RECEIVER CONFIGURATION
There are two possible operating modes: Basic and Advanced.
Functions in BASIC mode:
- Inserting the code
- Erasing the code
- Completely erasing the memory
Functions in ADVANCED mode:
- Inserting the code
- Inserting countdown codes: the code is allowed only a determined number of accesses (from 1 to
999)
- Erasing the code
- Disabling codes with a determined rst gure
