20
PASSWORD (CODE)
It allows to type in an access protection code to the programming of the control unit.
A four-character alphanumeric code can be typed in by using the numbers from 0 to 9 and the letters A-B-C-D-E-F.
The default value is 0000 (four zeros) and shows the absence of a protection code.
While typing in the code, this operation can be cancelled at any moment by pressing keys + and – simultaneously. Once the password
is typed in, it is possible to act on the control unit by entering and exiting the programming mode for around 10 minutes in order to
allow adjustments and tests on functions.
By replacing the 0000 code with any other code, the protection of the control unit is enabled, thus preventing the access to any other
menu. If a protection code is to be typed in, proceed as follows:
- select the Code menu and press OK.
- the code 0000 is shown, also in the case a protection code has been previously typed in.
- the value of the flashing character can be changed with keys + and -.
- press OK to confirm the flashing character, then confirm the following one.
- after typing in the 4 characters, a confirmation message “CONF” appears.
- after a few seconds, the code 0000 appears again
- the previously stored protection code must be reconfirmed in order to avoid any accidental typing in.
If the code corresponds to the previous one, a confirmation message “OK” appears.
The control unit automatically exits the programming phase. To gain access to the Menus again, the stored protection code must be
typed in. IMPORTANT: TAKE NOTE of the protection code and KEEP IT IN A SAFE PLACE for future maintenance
operations. To remove the code from a protected control unit, enter the programming mode with the password
and reset the code to the 0000 default value.
IF YOU LOOSE THE CODE, PLEASE CONTACT THE AUTHORISED SERVICE CENTER FOR THE TOTAL RESET OF
THE CONTROL UNIT.

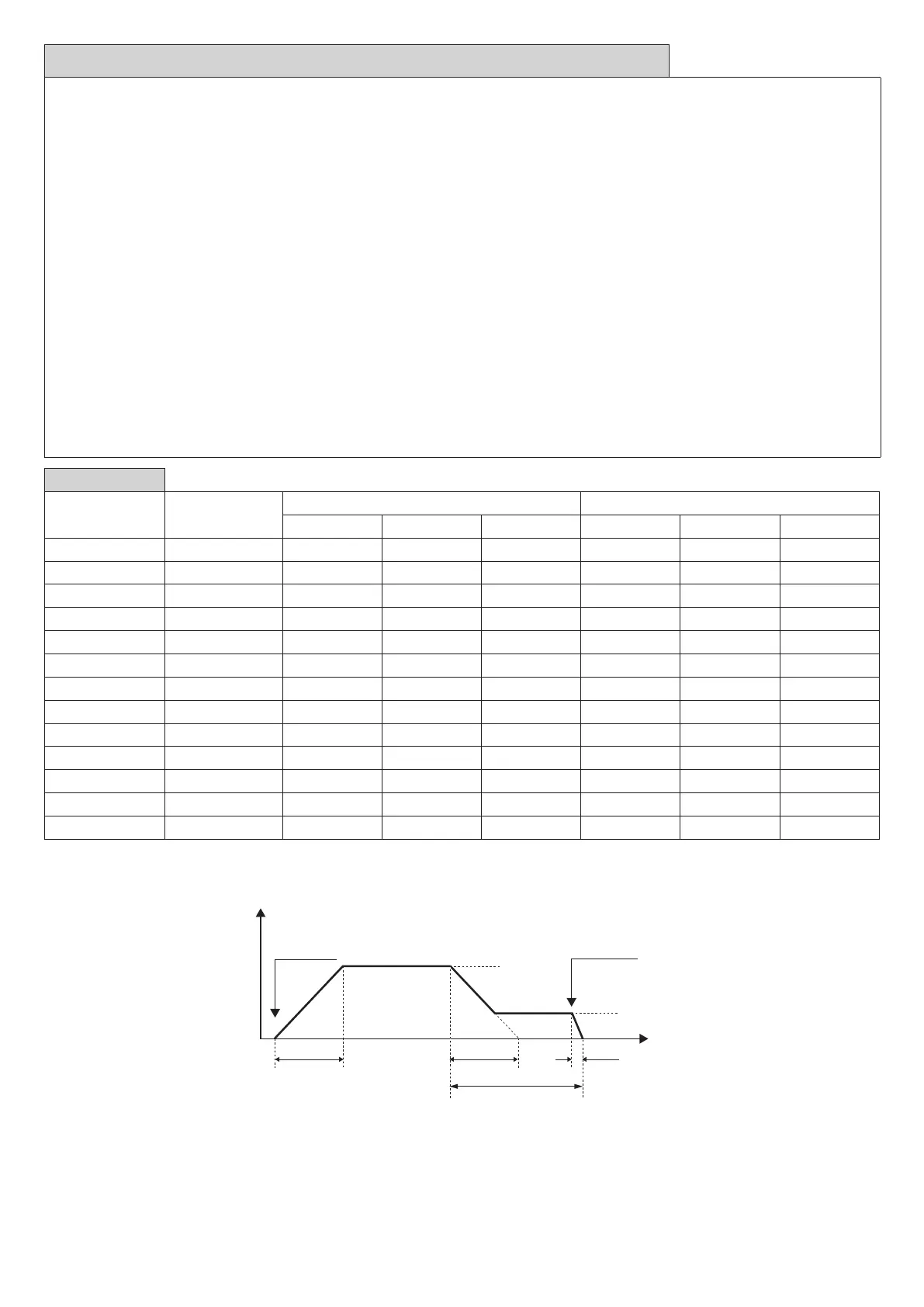

TABLE 1
FSTS
Value
Speed
(m/min)
Recommended values Leaf max. weight (kg)
TBR TDEC TSM BISON 25 BISON 35 BISON 45
30 7 3 50 10 2500 3500 4500
35 8 3 50 10 2500 3500 4500
40 9 3 50 10 2500 3500 4500
45 (DEFAULT) 10 3 50 10 2500 3500 4500
50 11 3 60 12 2000 3000 3600
55 12 4 65 13 1700 2500 3050
60 13 5 70 13 1450 2250 2600
65 14 6 80 14 1250 1800 2250
70 15 7 85 15 1100 1600 2000
75 16 8 89 16 950 1350 1700
80 17 9 93 17 850 1200 1500
85 18 10 96 19 750 1000 1350
90 19 10 99 20 650 850 1150
HOW TO ADJUST SPEED AND BRAKING
The door/gate stroke is shown in the following scheme:
V
T
FSTS
slds
BLc
TAcc
Tdec
TSM
SWO (SWC)
SWC (SWO)
The V axis is the gate/door speed, T axis is the time required by the door/gate to move from a limit switch to the other. The parameters
govern both the opening and the closing phases.
At gate/door stopped on any SWO (SWC) limit switch, when a control key is pressed the gate/good starts moving and reaches the
standard operating speed, which can be adjusted by FSTS parameter.
The TACC time sets how rapidly the gate/door should reach the standard speed.
Before meeting the SWX (SWO) stop limit switch, braking preset by TSM time will start.
Braking leads the gate/door from standard speed (FSTS) to braking speed, adjusted by SLDS parameter.
The TDEC time sets how rapidly the gate/door should reach the braking speed.
