Caution:
1. Voltage setting: 3.0±0.1V.
2. F/W programming version: FRM[2.7.2.1]
D. Auto Calibration(OB, WB/AGC、Meshut26、Meshut 80)& Focus Calibration
1. Insert the dummy battery into the camera and press “Playback, Tele and Set” button (Fig. 4) to access the auto test mode.
2. The on screen display shows the “OB CLBT” message (Fig. 5). Put the camera in front of light source box and make sure
the camera is close to light source box tightly or you can shoot the black subject.
3. Tap “OK” button and the press “Set” button to test automatically. . When the dialogue box showed “OK”(Fig. 6), it means
the test is passed. If it shows “NG”, it means the test was failed.
4. The on screen display shows the “AGC/WB” message (Fig. 7). Put the camera in front of the light source box about
35mm.
5. Tap “OK” button and then press “Set” button. Calibration program will execute automatically.
6. When the on-screen display shows “OK” (Fig. 8), it means the test is passed. If it shows “NG”, it means the test was failed.
7. The on screen display shows the “Meshut 26” message (Fig. 9). Put the camera in front of the light source box about
35mm and adjust the LV value to LV 12 according to the instruction.
8. Tap “OK” button and then press “Set” button. Calibration program will execute automatically.
9. When the on-screen display shows “OK” (Fig. 10), it means the test is passed. If it shows “NG”, it means the test was
failed.
10. The on screen display shows the “Meshut 80” message (Fig. 11). Put the camera in front of the light source box about
35mm. and adjust the LV value to LV 12 according to the instruction.
11. Tap “OK” button and then press “Set” button. Calibration program will execute automatically.
12. When the on-screen display shows “OK” (Fig. 12), it means the test is passed. If it shows “NG”, it means the test was
failed.
13. The on screen display shows the “2M Focus ” (Fig. 13). Shoot the subject is located at 2M distance
14. Tap “OK” button and then press “Set” button. Calibration program will execute automatically.
15. When the on-screen display shows “OK” (Fig. 14), it means the test is passed. If it shows “NG”, it means the test was
failed.

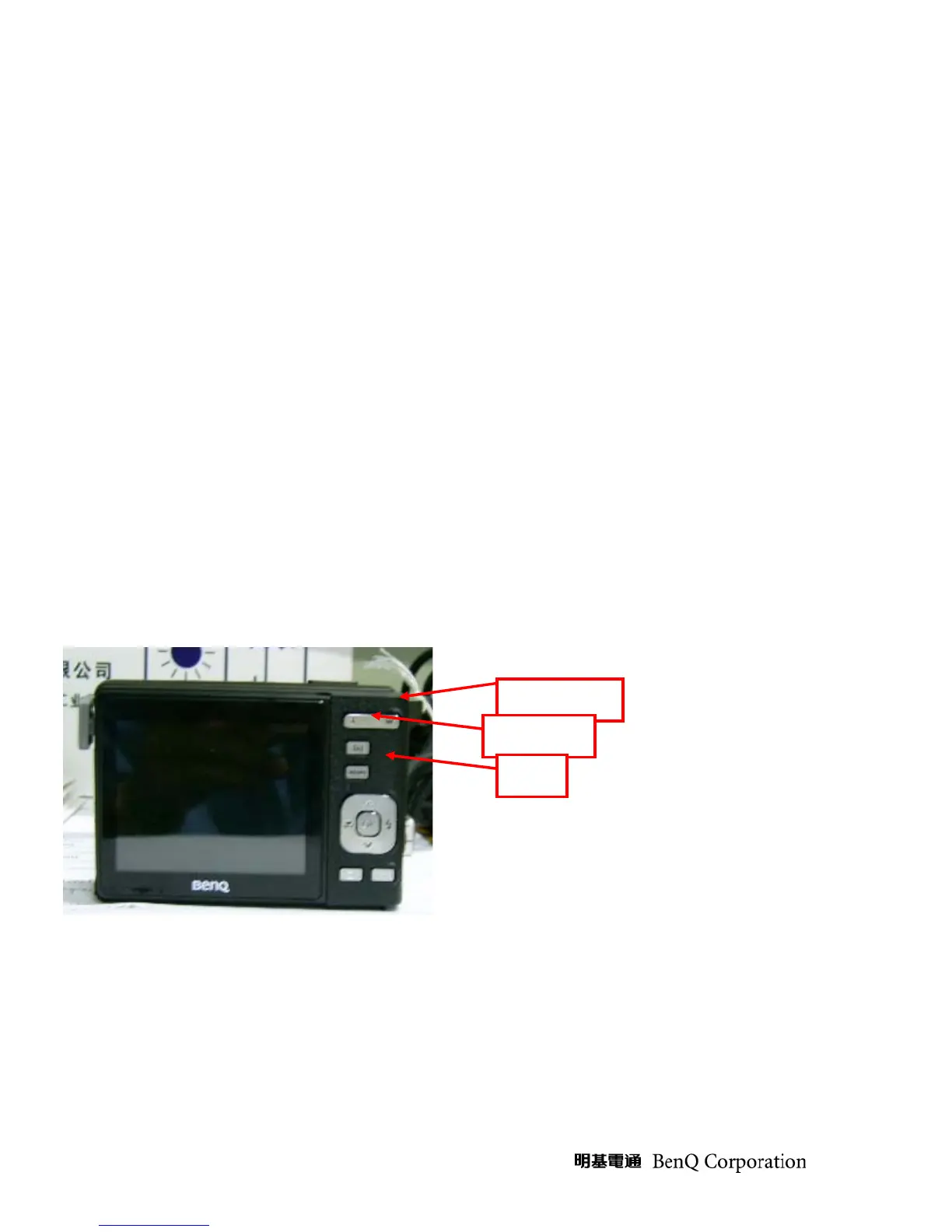

TE
Tele-Wide
Playback
Set
Fig. 4
- -
