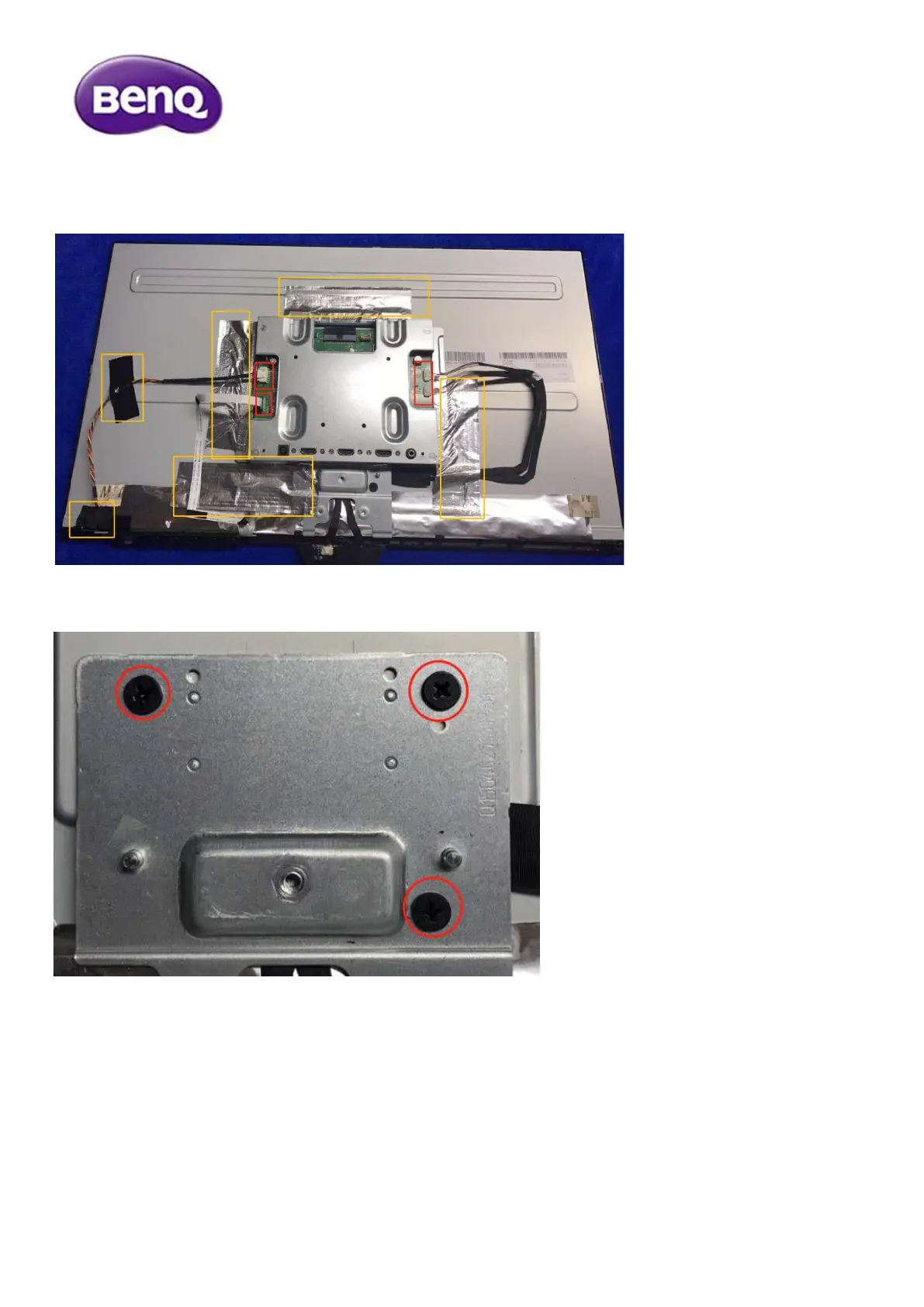

4) Remove the main frame and frame and hinge bkt from the panel.
4.1 Tear out all the tapes.
4.2 Release the screws located on the top of main frame and disconnect all the cables to remove the main frame.
4.3 Release the screws to remove the hinge bkt.
