Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting (if available), and the video
format each factors in the projected image size.
Projection dimensions
LW600ST+
• The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
For example, if you are using a 120-inch screen, the recommended projection distance is 2055
mm.
If your measured projection distance is 2500 mm, the closest match in the "Projection distance
(mm)" column is 2569 mm. Looking across this row shows that a 150'' (about 3.8 m) screen is
required.
Screen size Projection distance (mm)
Offset (mm)
Diagonal
H (mm) W (mm)
Min distance
(with max
zoom)
Average
Max distance
(with min
zoom)
Inch mm
30 762 404 646 465 514 562 0
40 1016 538 862 620 685 750 0
50 1270 673 1077 775 856 937 0
60 1524 808 1292 930 1027 1124 0
70 1778 942 1508 1086 1199 1312 0
80 2032 1077 1723 1241 1370 1499 0
90 2286 1212 1939 1396 1541 1687 0
100 2540 1346 2154 1551 1712 1874 0
110 2794 1481 2369 1706 1884 2061 0
120 3048 1615 2585 1861 2055 2249 0
130 3302 1750 2800 2016 2226 2436 0
140 3556 1885 3015 2171 2397 2623 0
150 3810 2019 3231 2326 2569 2811 0
160 4064 2154 3446 2481 2740 2998 0
170 4318 2289 3662 2636 2911 3186 0
180 4572 2423 3877 2791 3082 3373 0
190 4826 2558 4092 2947 3253 3560 0
200 5080 2692 4308 3102 3425 3748 0

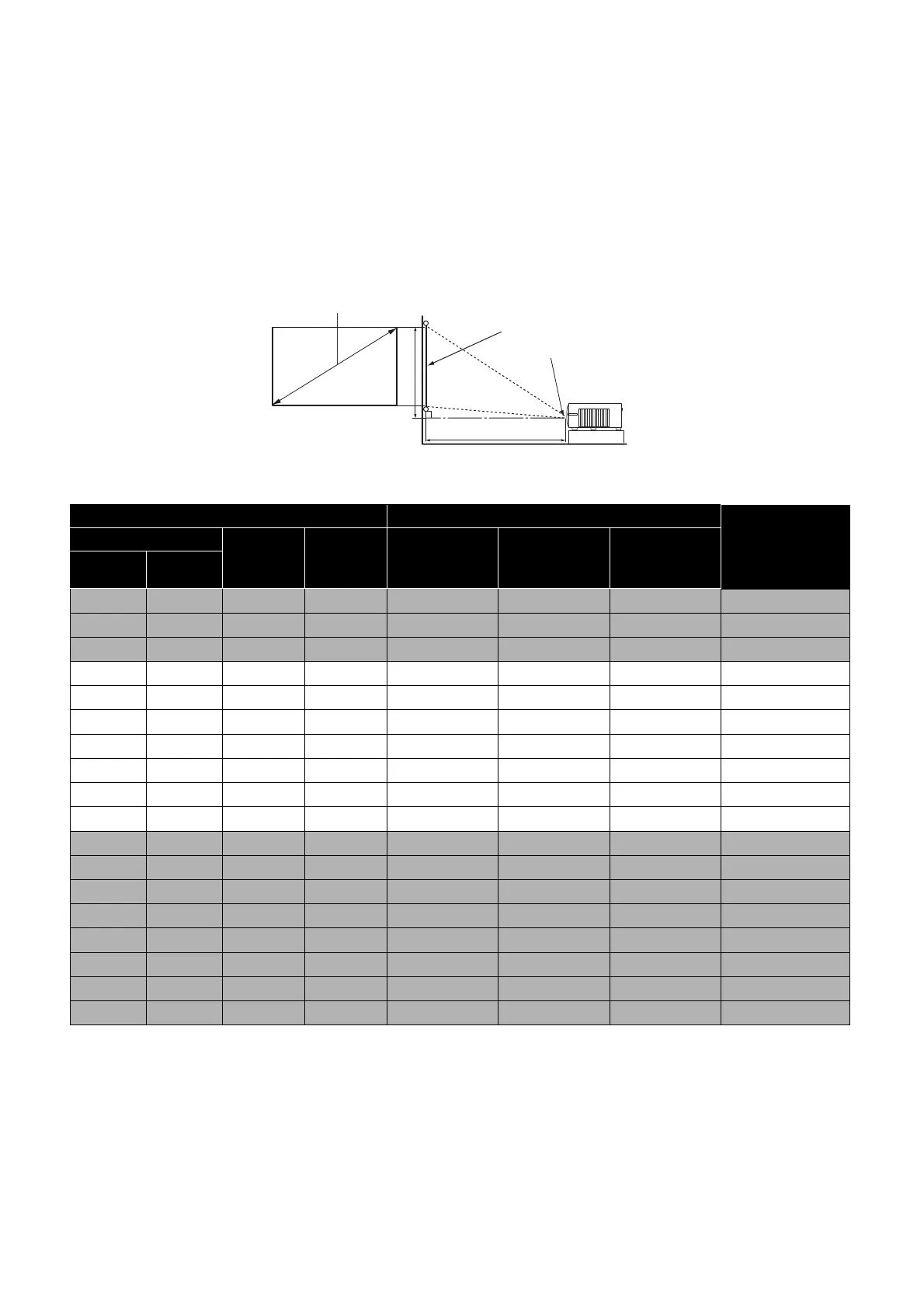

H
W
Projection distance
Center of lens
Screen
16:10 Screen diagonal
Offset
