Introduction 9

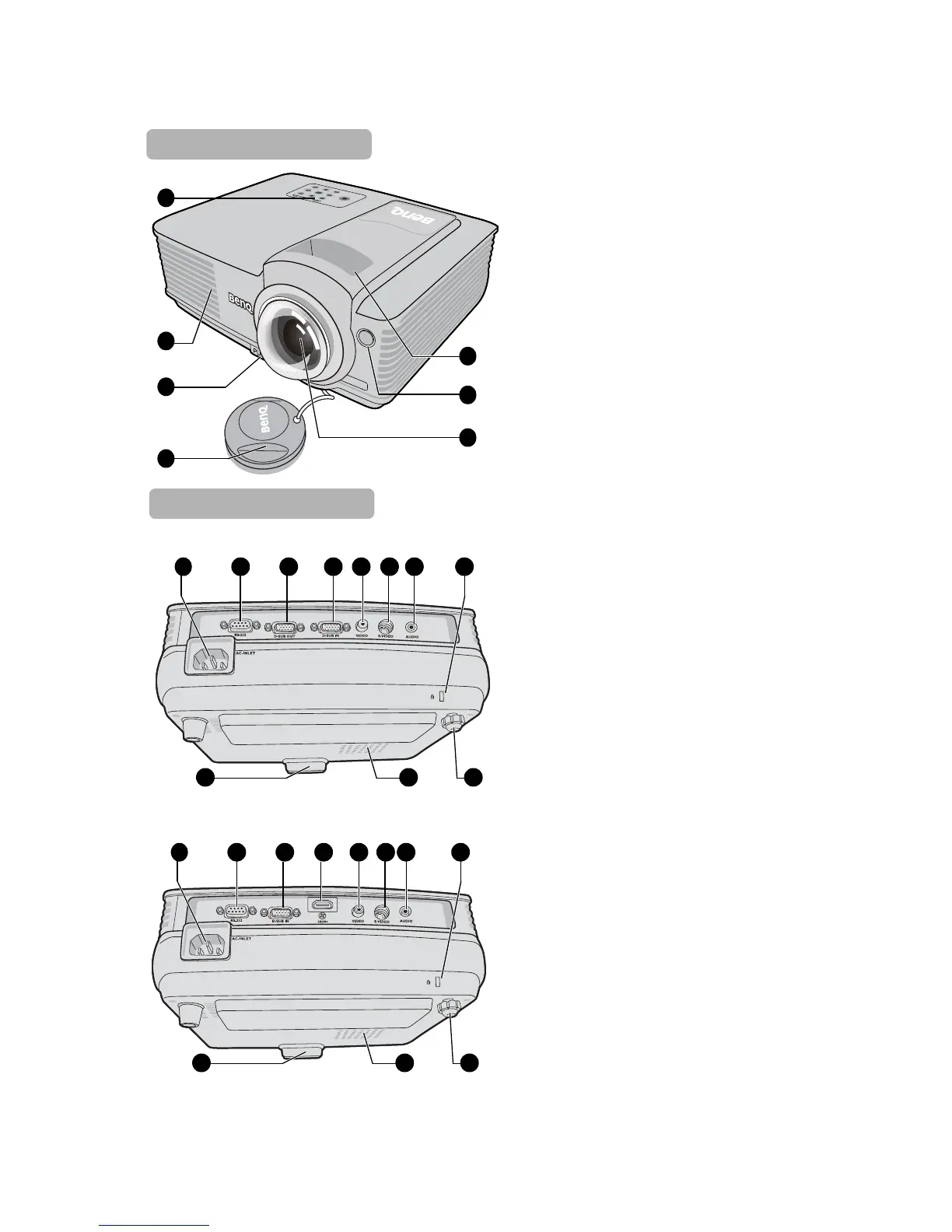

Projector exterior view
1. External control panel
(See "Projector" on page 10 for
details.)
2. Vent (heated air exhaust)
3. Quick-release button
4. Lens cover
5. Focus ring
6. Front IR remote sensor
7. Projection lens
8. AC power cord inlet
9. RS-232 control port
10. RGB signal output socket
11. RGB (PC)/Component video
(YPbPr/YCbCr) signal input socket
12. Video input socket
13. S-Video input socket
14. Audio signal input socket
15. Kensington anti-theft lock slot
16. Quick-release foot
17. Lamp cover
18. Rear adjuster foot
19. HDMI input socket
Front/upper side
7
6
1
2
3
4
5
Rear/lower side
16 18
1513121911
9
8
17
MP512 ST
16 18
1513121110
9
8
17
MP522 ST
14
14
