Introduction 11

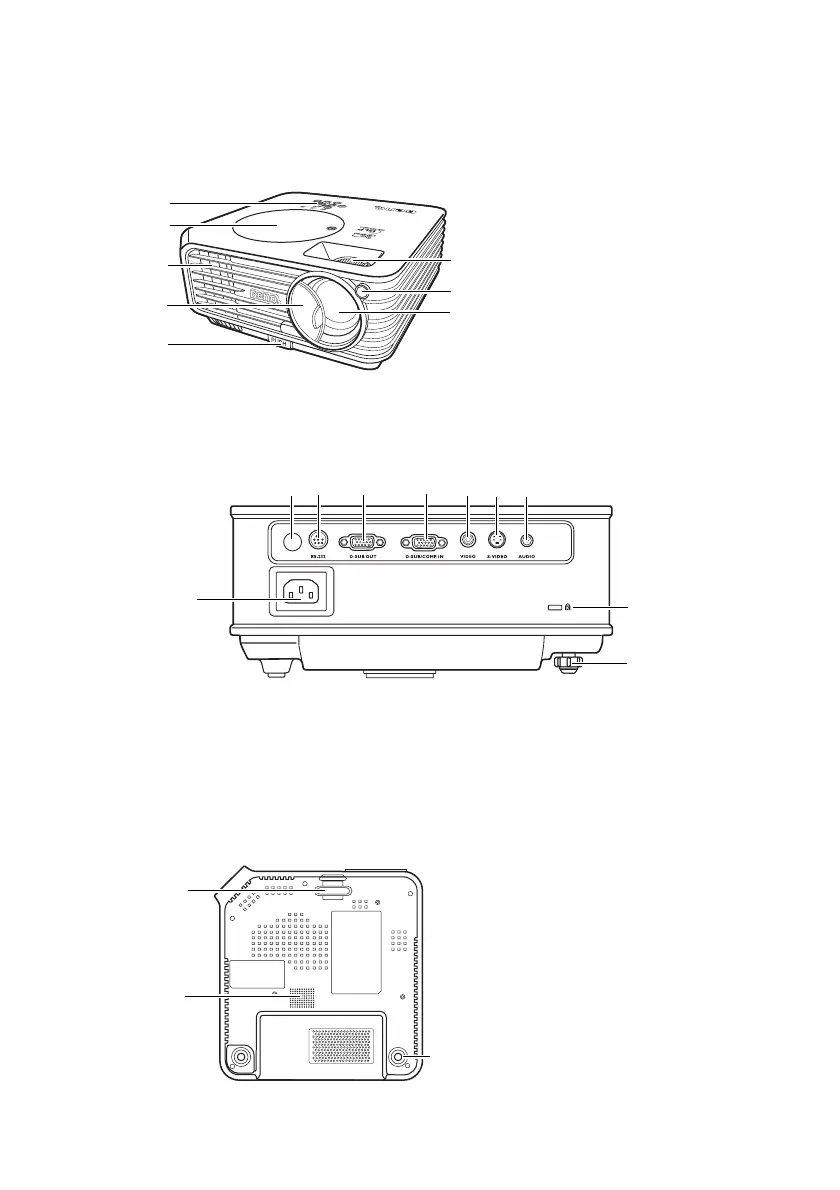

Projector exterior view
Front/upper side
Rear side
See "Connection" on page 20 for details.
Under view
1. External control panel
(See "Projector" on page 12 for
details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Lens cover
5. Quick-release button
6. Focus ring and Zoom ring
7. Front IR remote sensor
8. Projection lens
1
2
3
4
5
6
7
8
9. AC power cord inlet
10. Rear IR remote sensor
11. RS232 control port
12. RGB signal output socket
13. RGB (PC)/Component video
(YPbPr/ YCbCr) signal input socket
14. Video input socket
15. S-Video input socket
16. Audio socket
17. Kensington anti-theft lock slot
18. Rear adjuster foot
11 12
13
14
15
16
17
9
10
18
19. Quick-release foot
20. Speaker grill
21. Rear adjuster foot
20
21
19
