BenQ MP620C - Projector Exterior View

Introduction 7

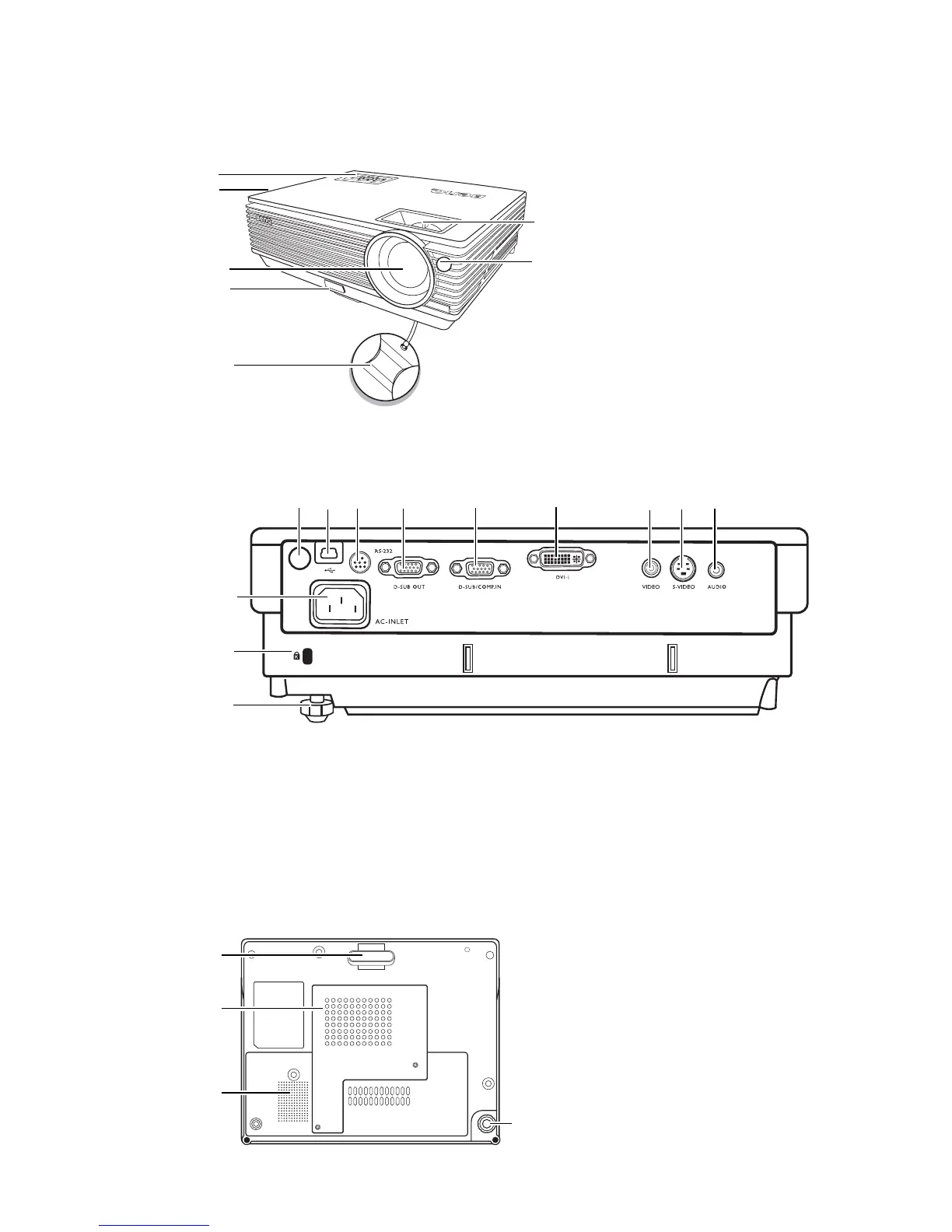

Projector exterior view
Front/upper side
Rear side
See "Connection" on page 17 for details.
Lower/side view
1. External control panel
(See "Projector" on page 8 for
details.)
2. Vent (heated air exhaust)
3. Projection lens
4. Quick-release button
5. Lens cap
6. Focus ring and Zoom ring
7. Front IR remote sensor
7
6
2
3
4
5
1
8. Rear adjuster foot
9. Kensington anti-theft lock slot
10. AC power cord inlet
11. Rear IR remote sensor
12. USB socket
13. RS232 control port
14. RGB signal output socket
15. RGB (PC)/Component video (YPbPr/
YCbCr) signal input socket
16. DVI-I signal input socket
17. Video input socket
18. S-Video input socket
19. Audio socket
11
12
13
14 15
16
17
18
8
9
10
19
20. Quick-release foot
21. Lamp cover
22. Speaker grill
23. Rear adjuster foot
2
0
2
1
22
23
