Positioning your projector 15
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
MW603

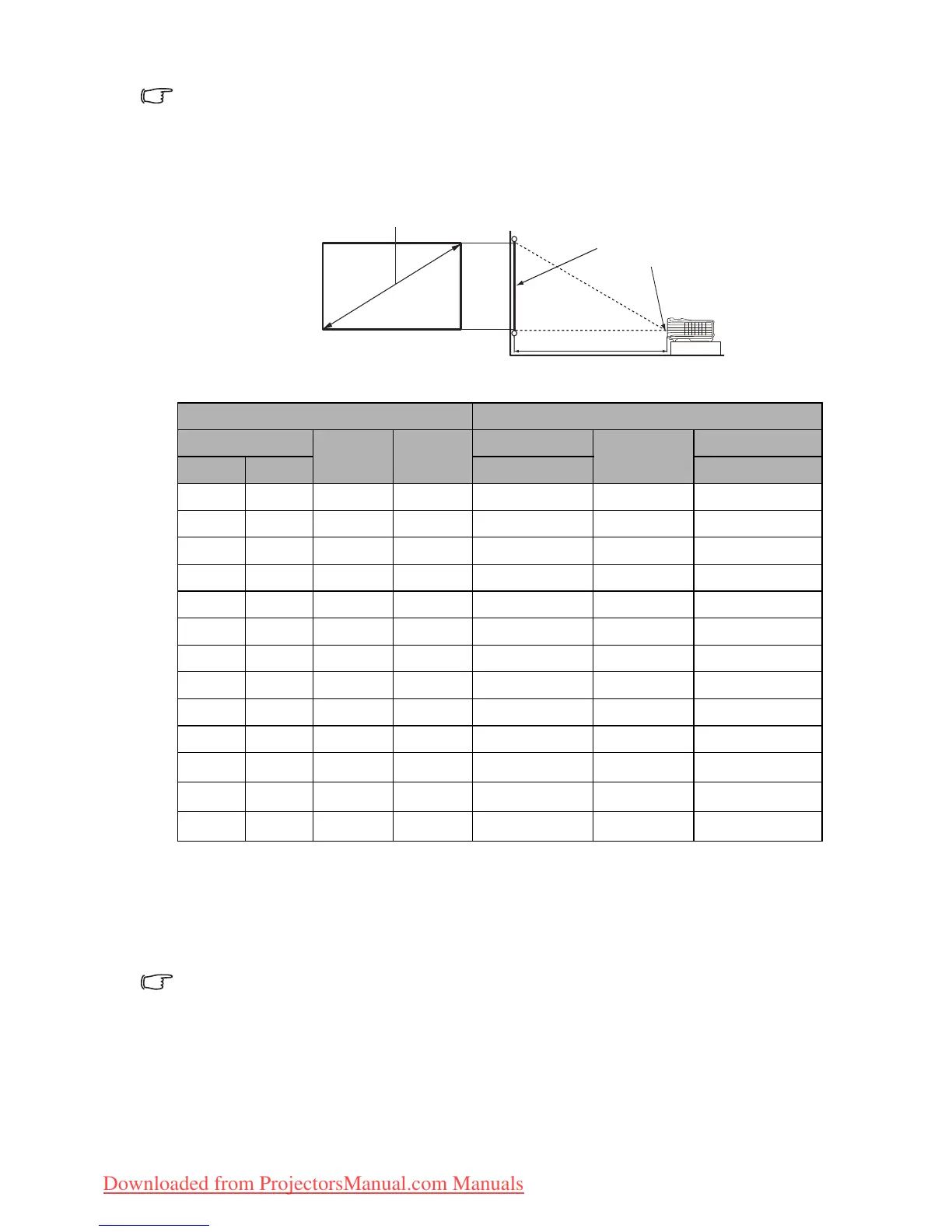

The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
For example, if you are using an 120-inch screen, the recommended projection distance is
4200 mm.
If your measured projection distance is 5.0 m (5000 mm), the closest match in the
"Projection distance (mm)" column is 5000 mm. Looking across this row shows that a 150''
(about 3.8 m) screen is required.
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
Screen size Projection distance (mm)
Diagonal
W
(mm)
H (mm)
Min distance
Average
Max distance
Inch mm (max. zoom) (min. zoom)
60 1524 1292 808 2000 2100 2200
70 1778 1508 942 2333 2450 2567
80 2032 1723 1077 2667 2800 2933
90 2286 1939 1212 3000 3150 3300
100 2540 2154 1346 3333 3500 3667
120 3048 2585 1615 4000 4200 4400
140 3556 3015 1885 4667 4900 5133
150 3810 3231 2019 5000 5250 5500
160 4064 3446 2154 5333 5600 5867
180 4572 3877 2423 6000 6300 6600
200 5080 4308 2692 6667 7000 7333
250 6350 5385 3365 8333 8750 9167
300 7620 6462 4039 10000 10500 11000
