Introduction 9

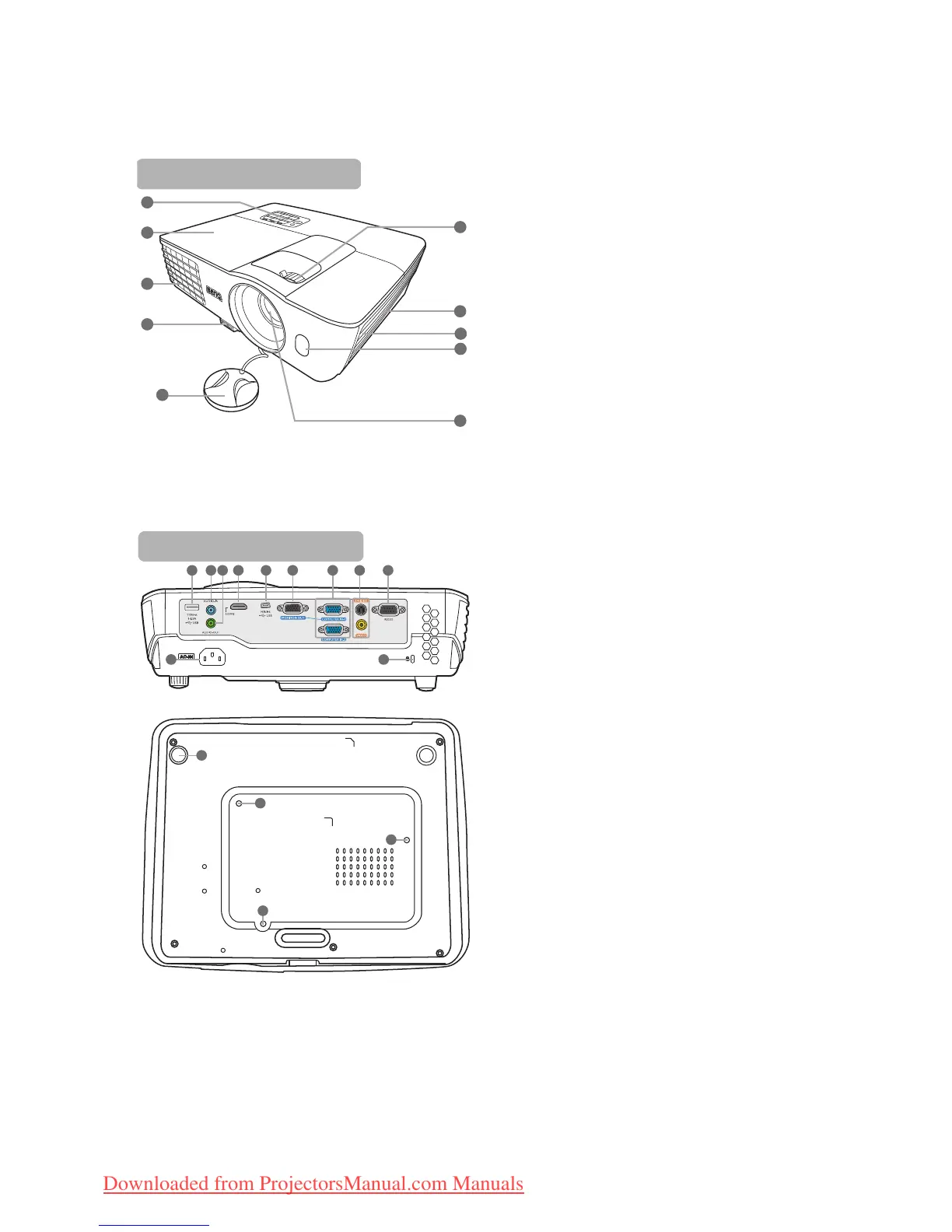

Projector exterior view
1. External control panel
(See "Controls and functions" on page 10
for details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Lens cap
6. Focus and Zoom ring
7. Vent (cool air intake)
8. Speaker grill
9. Front IR remote sensor
10. Projection lens
11. USB Type-A port
Used for charging the receiver box of the
Wireless FHD Kit (WDP01) (optional
accessory).
12. Audio input jack
13. Audio output jack
14. HDMI-input port
15. Mini USB port
16. RGB signal output jack
17. RGB (PC)/Component Video (YPbPr/
YCbCr) signal input jacks
18. S-Video input jack
Video input jack
19. RS232 control port
20. AC power jack
21. Kensington anti-theft lock slot
22. Adjuster foot
23. Ceiling mount holes
5
2
1
3
4
8
6
7
10
9
Front/upper side
161311 12 14
17 19
1815
21
22
23
23
23
20
Rear/lower side
