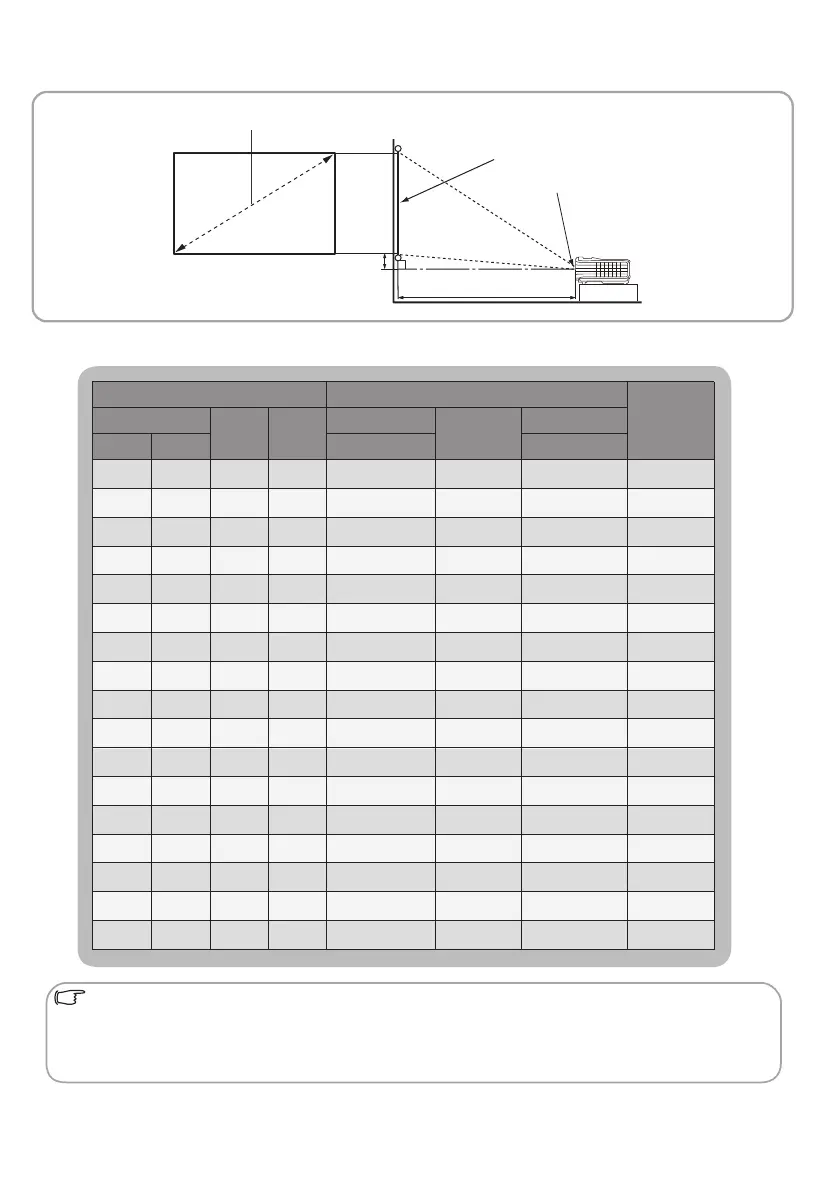

Projection dimensions
The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
MW705
H
W
Projection distance
Center of lens
Screen
Vertical offset
16:10 Screen diagonal
Screen size Distance from screen (cm)
Vertical
offset
(cm)
Diagonal
H
(cm)
W
(cm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
60 1524 81 129 200 210 220 0.0
70 1778 94 151 233 245 257 0.0
80 2032 108 172 267 280 293 0.0
90 2286 121 194 300 315 330 0.0
100 2540 135 215 333 350 367 0.0
110 2794 148 237 367 385 403 0.0
120 3048 162 258 400 420 440 0.0
130 3302 175 280 433 455 477 0.0
140 3556 188 302 467 490 513 0.0
150 3810 202 323 500 525 550 0.0
160 4064 215 345 533 560 587 0.0
170 4318 229 366 567 595 623 0.0
180 4572 242 388 600 630 660 0.0
190 4826 256 409 633 665 697 0.0
200 5080 269 431 667 700 733 0.0
250 6350 337 538 833 875 917 0.0
300 76
20 404 646 100
0 1050 1100 0.0
